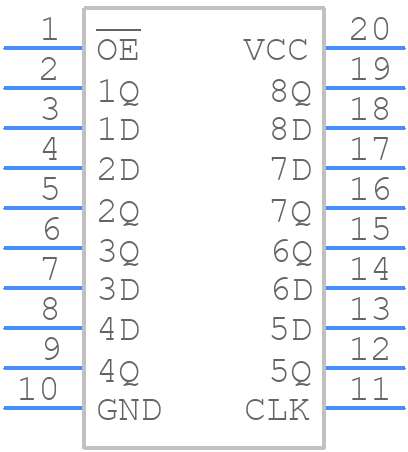

Part Symbol
-
Footprint
-

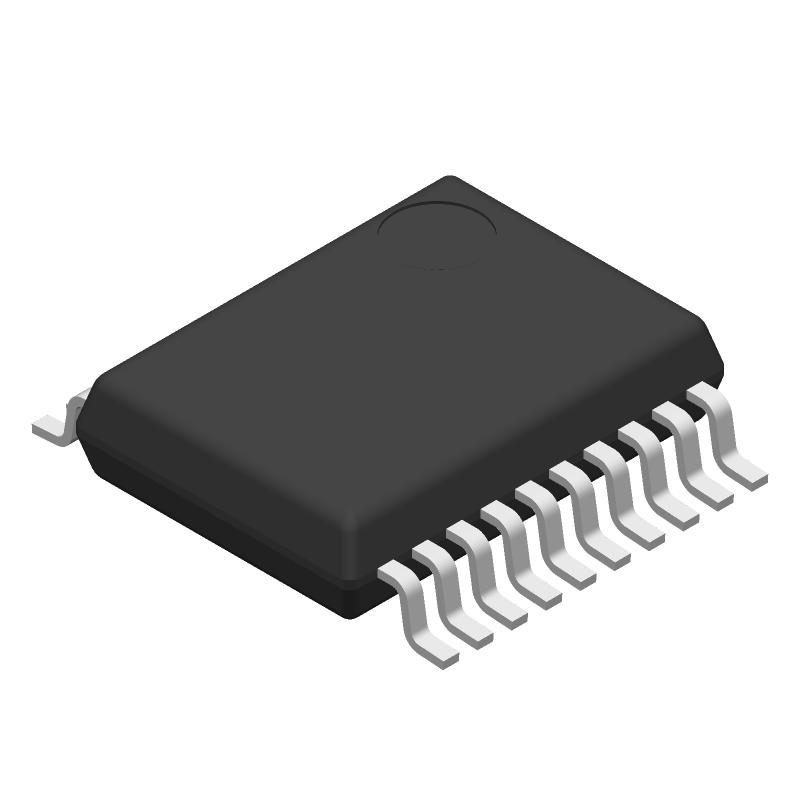

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN74HC374DBR by Texas Instruments
Results Overview of SN74HC374DBR by Texas Instruments
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Industrial Automation
Electronic Manufacturing
SN74HC374DBR Information
SN74HC374DBR by Texas Instruments is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74HC374DBR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-SN74HC374DBR-ND
|
DigiKey | IC FF D-TYPE SINGLE 8BIT 20SSOP Min Qty: 1 Lead time: 12 Weeks Container: Bulk MARKETPLACE PRODUCT |
12000 In Stock |
|
$0.2400 | Buy Now |
|
DISTI #
296-8312-1-ND
|
DigiKey | IC FF D-TYPE SINGLE 8BIT 20SSOP Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1958 In Stock |
|
$0.1784 / $0.4600 | Buy Now |
|
DISTI #
595-SN74HC374DBR
|
Mouser Electronics | Flip Flops Tri-State Octal RoHS: Compliant | 3556 |
|
$0.1820 / $0.4600 | Buy Now |
|
DISTI #
86285068
|
Verical | Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin SSOP T/R RoHS: Compliant Min Qty: 1581 Package Multiple: 1 Date Code: 1101 | Americas - 6000 |
|
$0.1773 / $0.2373 | Buy Now |
|
DISTI #
86290513
|
Verical | Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin SSOP T/R RoHS: Compliant Min Qty: 1581 Package Multiple: 1 Date Code: 1301 | Americas - 4000 |
|
$0.1773 / $0.2373 | Buy Now |
|
DISTI #
86290236
|
Verical | Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin SSOP T/R RoHS: Compliant Min Qty: 1581 Package Multiple: 1 Date Code: 1001 | Americas - 2000 |
|
$0.1773 / $0.2373 | Buy Now |
|
|
Bristol Electronics | 4000 |
|
RFQ | ||
|
|
Bristol Electronics | 783 |
|
RFQ | ||
|
|
Quest Components | IC,FLIP-FLOP,OCTAL,D TYPE,HC-CMOS,SSOP,20PIN,PLASTIC | 3200 |
|
$0.2198 / $0.6280 | Buy Now |
|
|
Quest Components | IC,FLIP-FLOP,OCTAL,D TYPE,HC-CMOS,SSOP,20PIN,PLASTIC | 626 |
|
$0.1884 / $0.6280 | Buy Now |
Part Details for SN74HC374DBR
SN74HC374DBR CAD Models
SN74HC374DBR Part Data Attributes
|
|
SN74HC374DBR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74HC374DBR
Texas Instruments
Octal Edge-Triggered D-Type Flip-Flops With 3-State Outputs 20-SSOP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SSOP | |
| Pin Count | 20 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Control Type | ENABLE LOW | |
| Count Direction | UNIDIRECTIONAL | |
| Family | HC/UH | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e4 | |
| Length | 7.2 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | BUS DRIVER | |
| Max Frequency@Nom-Sup | 24000000 Hz | |
| Max I(ol) | 0.0078 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 8 | |
| Number of Functions | 8 | |
| Number of Ports | 2 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-STATE | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP20,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.08 mA | |
| Prop. Delay@Nom-Sup | 45 ns | |
| Propagation Delay (tpd) | 290 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trigger Type | POSITIVE EDGE | |
| Width | 5.3 mm |
Alternate Parts for SN74HC374DBR
This table gives cross-reference parts and alternative options found for SN74HC374DBR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74HC374DBR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SN74HC374DBRE4 | Texas Instruments | Check for Price | HC/UH SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, GREEN, PLASTIC, SSOP-20 | SN74HC374DBR vs SN74HC374DBRE4 |
| MC74HC374ASD | Motorola Semiconductor Products | Check for Price | Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, PLASTIC, SSOP-20 | SN74HC374DBR vs MC74HC374ASD |
SN74HC374DBR Frequently Asked Questions (FAQ)
-
The maximum frequency of operation for the SN74HC374DBR is 100 MHz, but it can vary depending on the specific application and operating conditions.
-
To ensure that the outputs are not corrupted during power-up or power-down, it is recommended to use an external pull-up or pull-down resistor on the output pins, and to use a power-on reset (POR) circuit to initialize the device.
-
The recommended operating voltage range for the SN74HC374DBR is 2V to 6V, with a typical operating voltage of 5V.
-
To handle bus contention when multiple devices are driving the same bus, it is recommended to use a bus buffer or a bus switch to isolate the devices and prevent data corruption.
-
The maximum current that the SN74HC374DBR can sink or source is 25 mA per output pin, with a total device current of 100 mA.
