SN74HC368DRG4 by: Texas Instruments

Hex Inverting Buffers And Line Drivers With 3-State Outputs 16-SOIC -40 to 85

Part Details for SN74HC368DRG4 by Texas Instruments

Results Overview of SN74HC368DRG4 by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SN74HC368DRG4 Information

SN74HC368DRG4 by Texas Instruments is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Price & Stock for SN74HC368DRG4

Part # Distributor Description Stock Price Buy
DISTI # 595-SN74HC368DRG4
Mouser Electronics Buffers & Line Drivers Hex Inverting Buffer And Line Drivers RoHS: Compliant 0
  • 2,500 $0.3700
  • 10,000 $0.3080
  • 20,000 $0.3050
$0.3050 / $0.3700 Order Now
Quest Components HC/UH SERIES, DUAL 4-BIT DRIVER, INVERTED OUTPUT, PDSO16, TandR, LEAD FREE 34
  • 1 $0.3600
  • 15 $0.3000
$0.3000 / $0.3600 Buy Now
Vyrian Logic ICs 714
RFQ

Part Details for SN74HC368DRG4

SN74HC368DRG4 CAD Models

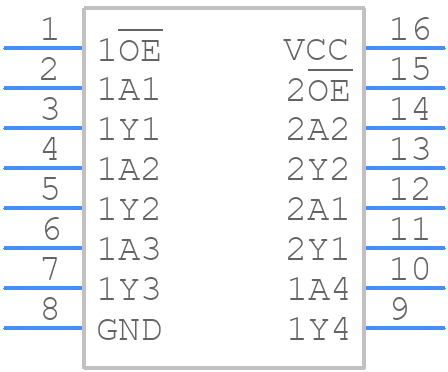

  • Part Symbol
