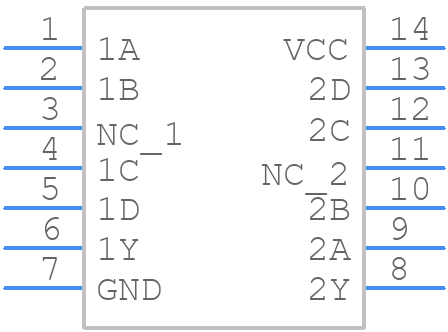

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN74HC20DE4 by Texas Instruments
Results Overview of SN74HC20DE4 by Texas Instruments
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
SN74HC20DE4 Information
SN74HC20DE4 by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74HC20DE4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | Peripheral ICs | 899 |
|
RFQ |
Part Details for SN74HC20DE4
SN74HC20DE4 CAD Models
SN74HC20DE4 Part Data Attributes
|
|
SN74HC20DE4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74HC20DE4
Texas Instruments
Dual 4-Input Positive-NAND Gates 14-SOIC -40 to 85
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | SOP, SOP14,.25 | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Family | HC/UH | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 8.65 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | NAND GATE | |
| Max I(ol) | 0.004 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Inputs | 4 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TUBE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Prop. Delay@Nom-Sup | 28 ns | |
| Propagation Delay (tpd) | 140 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for SN74HC20DE4
This table gives cross-reference parts and alternative options found for SN74HC20DE4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74HC20DE4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SN74HC20DR | Texas Instruments | $0.0876 | 2-ch, 4-input, 2-V to 6-V 5.2 mA drive strength NAND gate 14-SOIC -40 to 85 | SN74HC20DE4 vs SN74HC20DR |
| SN74F20D | Texas Instruments | $0.2894 | 2-ch, 4-input, 4.5-V to 5.5-V bipolar NAND gates 14-SOIC 0 to 70 | SN74HC20DE4 vs SN74F20D |
| SN74AS20DP3 | Texas Instruments | Check for Price | IC,LOGIC GATE,DUAL 4-INPUT NAND,AS-TTL,SOP,14PIN,PLASTIC | SN74HC20DE4 vs SN74AS20DP3 |
| SN74F20DE4 | Texas Instruments | Check for Price | F/FAST SERIES, DUAL 4-INPUT NAND GATE, PDSO14, GREEN, PLASTIC, SOIC-14 | SN74HC20DE4 vs SN74F20DE4 |
| SN74LS20DR2 | Motorola Semiconductor Products | Check for Price | NAND Gate, LS Series, 2-Func, 4-Input, TTL, PDSO14, PLASTIC, SOIC-14 | SN74HC20DE4 vs SN74LS20DR2 |
| SN74LS20D | onsemi | Check for Price | SN74LS20D | SN74HC20DE4 vs SN74LS20D |
| SN74HC20DRG4 | Texas Instruments | Check for Price | Dual 4-Input Positive-NAND Gates 14-SOIC -40 to 85 | SN74HC20DE4 vs SN74HC20DRG4 |
| SN74HC20DG4 | Texas Instruments | Check for Price | Dual 4-Input Positive-NAND Gates 14-SOIC -40 to 85 | SN74HC20DE4 vs SN74HC20DG4 |
| SN74AS20DE4 | Texas Instruments | Check for Price | Dual 4-Input Positive-NAND Gates 14-SOIC 0 to 70 | SN74HC20DE4 vs SN74AS20DE4 |
