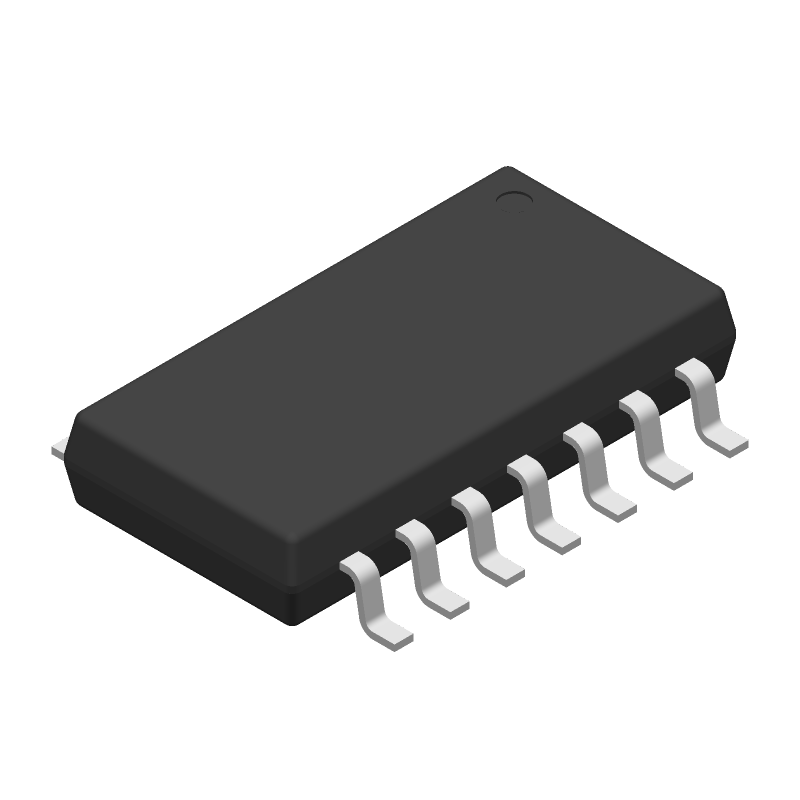

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN74HC14NS by Texas Instruments
Results Overview of SN74HC14NS by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SN74HC14NS Information
SN74HC14NS by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74HC14NS
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-53313-ND
|
DigiKey | IC INVERT SCHMITT 6CH 1-INP 14SO Min Qty: 1 Lead time: 12 Weeks Container: Tube |
140 In Stock |
|
$0.5851 / $1.0200 | Buy Now |
|
|
Vyrian | Logic ICs | 22407 |
|
RFQ | |
|
|
Win Source Electronics | HEX SCHMITT-TRIGGER INVERTERS | LOGIC GATES AND INVERTERS | 10093 |
|
$0.5391 / $0.6962 | Buy Now |
Part Details for SN74HC14NS
SN74HC14NS CAD Models
SN74HC14NS Part Data Attributes
|
|
SN74HC14NS
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74HC14NS
Texas Instruments
HC/UH SERIES, HEX 1-INPUT INVERT GATE, PDSO14, PLASTIC, SOP-14
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | PLASTIC, SOP-14 | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Family | HC/UH | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 10.2 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | INVERTER | |
| Max I(ol) | 0.004 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 6 | |
| Number of Inputs | 1 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Prop. Delay@Nom-Sup | 31 ns | |
| Propagation Delay (tpd) | 155 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | YES | |
| Seated Height-Max | 2 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5.3 mm |
Alternate Parts for SN74HC14NS
This table gives cross-reference parts and alternative options found for SN74HC14NS. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74HC14NS, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MM74HC14SJ | Fairchild Semiconductor Corporation | Check for Price | Hex Inverting Schmitt Trigger, 14LD,SOP,EIAJ TYPE II, 5.3MM WIDE, 47/RAIL | SN74HC14NS vs MM74HC14SJ |
| HD74HC14FP-EL | Hitachi Ltd | Check for Price | Inverter, HC/UH Series, 6-Func, 1-Input, CMOS, PDSO14, FP-14DA | SN74HC14NS vs HD74HC14FP-EL |
| HD74HC14FP | Hitachi Ltd | Check for Price | Inverter, HC/UH Series, 6-Func, 1-Input, CMOS, PDSO14, FP-14DA | SN74HC14NS vs HD74HC14FP |
| MM74HC14SJX | Fairchild Semiconductor Corporation | Check for Price | Inverter, HC/UH Series, 6-Func, 1-Input, CMOS, PDSO14, 5.30 MM, LEAD FREE, EIAJ TYPE2, SOP-14 | SN74HC14NS vs MM74HC14SJX |
| SN74HC14NSRE4 | Texas Instruments | Check for Price | 6-ch, 2-V to 6-V inverters with Schmitt-Trigger inputs 14-SOP -40 to 85 | SN74HC14NS vs SN74HC14NSRE4 |
| SN74HC14NSE4 | Texas Instruments | Check for Price | HC/UH SERIES, HEX 1-INPUT INVERT GATE, PDSO14, PLASTIC, SOP-14 | SN74HC14NS vs SN74HC14NSE4 |
| MC74HC14AFELG | onsemi | Check for Price | HC/UH SERIES, HEX 1-INPUT INVERT GATE, PDSO14, LEAD FREE, EIAJ, SO-14 | SN74HC14NS vs MC74HC14AFELG |
| MC74HC14AF | onsemi | Check for Price | HC/UH SERIES, HEX 1-INPUT INVERT GATE, PDSO14, EIAJ, SO-14 | SN74HC14NS vs MC74HC14AF |
| HD74HC14FPEL | Renesas Electronics Corporation | Check for Price | HC/UH SERIES, HEX 1-INPUT INVERT GATE, PDSO14, 5.50 X 10.06 MM, 1.27 MM PITCH, SOP-14 | SN74HC14NS vs HD74HC14FPEL |
| TC74HC14AF-TP2EL | Toshiba America Electronic Components | Check for Price | IC HC/UH SERIES, HEX 1-INPUT INVERT GATE, PDSO14, 0.300 INCH, PLASTIC, SOIC-14, Gate | SN74HC14NS vs TC74HC14AF-TP2EL |
SN74HC14NS Frequently Asked Questions (FAQ)
-
The maximum frequency of operation for the SN74HC14NS is typically 100 MHz, but it can vary depending on the specific application and operating conditions.
-
To ensure proper power supply, connect VCC to a stable 5V power source, and GND to a reliable ground connection. Also, decouple the power supply with a 0.1uF capacitor to reduce noise and ensure stable operation.
-
The SN74HC14NS can sink or source up to 25mA of current per output pin, but it's recommended to limit the current to 10mA or less to ensure reliable operation.
-
To prevent oscillation, ensure that the input signals have a clean, fast transition (typically <10ns) and are not slowly changing. Also, use a pull-up or pull-down resistor to define the input state when the input signal is not present.
-
While the SN74HC14NS is specified for 5V operation, it can be used in a 3.3V system with some limitations. However, the output voltage levels may not be compatible with 3.3V logic, and the device may not meet the specified timing parameters.
