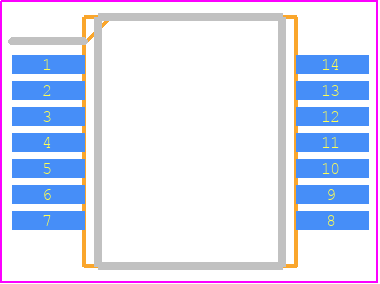

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN74HC14DBRG4 by Texas Instruments
Results Overview of SN74HC14DBRG4 by Texas Instruments
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SN74HC14DBRG4 Information
SN74HC14DBRG4 by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74HC14DBRG4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | Logic ICs | 422 |
|
RFQ |
Part Details for SN74HC14DBRG4
SN74HC14DBRG4 CAD Models
SN74HC14DBRG4 Part Data Attributes
|
|
SN74HC14DBRG4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74HC14DBRG4
Texas Instruments
Hex Schmitt-Trigger Inverters 14-SSOP -40 to 85
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SSOP | |
| Package Description | SSOP, SSOP14,.3 | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Family | HC/UH | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 6.2 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | INVERTER | |
| Max I(ol) | 0.004 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 6 | |
| Number of Inputs | 1 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP14,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Prop. Delay@Nom-Sup | 31 ns | |
| Propagation Delay (tpd) | 155 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | YES | |
| Seated Height-Max | 2 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5.3 mm |
Alternate Parts for SN74HC14DBRG4
This table gives cross-reference parts and alternative options found for SN74HC14DBRG4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74HC14DBRG4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 935174460112 | NXP Semiconductors | Check for Price | IC HC/UH SERIES, HEX 1-INPUT INVERT GATE, PDSO14, SOT-337-1, SSOP-14, Gate | SN74HC14DBRG4 vs 935174460112 |
| 935174460118 | NXP Semiconductors | Check for Price | IC HC/UH SERIES, HEX 1-INPUT INVERT GATE, PDSO14, SOT-337-1, SSOP-14, Gate | SN74HC14DBRG4 vs 935174460118 |
| MC74HC14ASD | Motorola Semiconductor Products | Check for Price | Inverter, HC/UH Series, 6-Func, 1-Input, CMOS, PDSO14, PLASTIC, SSOP-14 | SN74HC14DBRG4 vs MC74HC14ASD |
| 935174460112 | Nexperia | Check for Price | Inverter, HC/UH Series, 6-Func, 1-Input, CMOS, PDSO14 | SN74HC14DBRG4 vs 935174460112 |
| SN74HC14DBR | Texas Instruments | Check for Price | 6-ch, 2-V to 6-V inverters with Schmitt-Trigger inputs 14-SSOP -40 to 85 | SN74HC14DBRG4 vs SN74HC14DBR |
| 74HC14DB-T | NXP Semiconductors | Check for Price | IC HC/UH SERIES, HEX 1-INPUT INVERT GATE, PDSO14, SOT-337-1, SSOP-14, Gate | SN74HC14DBRG4 vs 74HC14DB-T |
| 74HC14DB | Philips Semiconductors | Check for Price | Inverter, CMOS, PDSO14 | SN74HC14DBRG4 vs 74HC14DB |
| 74HC14DB | Nexperia | Check for Price | Inverter, HC/UH Series, 6-Func, 1-Input, CMOS, PDSO14 | SN74HC14DBRG4 vs 74HC14DB |
| 74HC14DB,118 | Nexperia | Check for Price | 74HC14; 74HCT14 - Hex inverting Schmitt trigger@en-us SSOP1 14-Pin | SN74HC14DBRG4 vs 74HC14DB,118 |
SN74HC14DBRG4 Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the SN74HC14DBRG4 is 2V to 6V, with a typical voltage of 5V.
-
When the input pins are not in use, it is recommended to tie them to VCC or GND through a pull-up or pull-down resistor to prevent floating inputs and ensure proper device operation.
-
The maximum frequency of operation for the SN74HC14DBRG4 is typically around 100 MHz, but this can vary depending on the specific application and operating conditions.
-
To ensure proper power supply, it is recommended to use a decoupling capacitor (typically 0.1 μF) between VCC and GND, and to keep the power supply lines as short as possible to minimize noise and voltage drops.
-
Yes, the SN74HC14DBRG4 can be used in a 3.3V system, but the output voltage will be limited to around 3.3V, and the device may not be able to drive as much current as it would at 5V.
