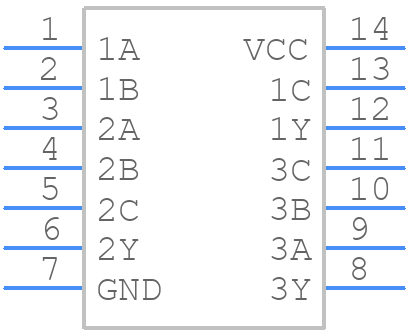

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN74HC11DG4 by Texas Instruments
Results Overview of SN74HC11DG4 by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
SN74HC11DG4 Information
SN74HC11DG4 by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74HC11DG4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-SN74HC11DG4-TI-ND
|
DigiKey | IC GATE AND 3CH 3-INP 14SOIC Min Qty: 1986 Lead time: 26 Weeks Container: Tube MARKETPLACE PRODUCT |
2700 In Stock |
|
$0.1500 | Buy Now |
|
DISTI #
88045015
|
Verical | AND Gate 3-Element 3-IN CMOS 14-Pin SOIC Tube RoHS: Compliant Min Qty: 2488 Package Multiple: 1 Date Code: 1301 | Americas - 2700 |
|
$0.1126 / $0.1508 | Buy Now |
|
|
Bristol Electronics | 650 |
|
RFQ | ||
|
|
Quest Components | IC,LOGIC GATE,3 3-INPUT AND,HC-CMOS,SOP,14PIN,PLASTIC, LEAD FREE | 1661 |
|
$0.1036 / $0.2391 | Buy Now |
|
|
Quest Components | IC,LOGIC GATE,3 3-INPUT AND,HC-CMOS,SOP,14PIN,PLASTIC, LEAD FREE | 520 |
|
$0.2391 / $0.7970 | Buy Now |
|
|
Rochester Electronics | AND Gate, HC/UH Series, 3-Func, 3-Input, PDSO14 RoHS: Compliant Status: Obsolete Min Qty: 1 | 2700 |
|
$0.0901 / $0.1453 | Buy Now |
Part Details for SN74HC11DG4
SN74HC11DG4 CAD Models
SN74HC11DG4 Part Data Attributes
|
|
SN74HC11DG4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74HC11DG4
Texas Instruments
Triple 3-Input Positive-AND Gates 14-SOIC -40 to 85
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | SOIC-14 | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Family | HC/UH | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 8.65 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | AND GATE | |
| Max I(ol) | 0.004 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 3 | |
| Number of Inputs | 3 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TUBE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Prop. Delay@Nom-Sup | 25 ns | |
| Propagation Delay (tpd) | 125 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for SN74HC11DG4
This table gives cross-reference parts and alternative options found for SN74HC11DG4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74HC11DG4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| CD74HC11ME4 | Texas Instruments | Check for Price | HC/UH SERIES, TRIPLE 3-INPUT AND GATE, PDSO14, GREEN, PLASTIC, MS-012AB, SOIC-14 | SN74HC11DG4 vs CD74HC11ME4 |
| GD54HC11D | Goldstar Electron Co Ltd | Check for Price | AND Gate, HC/UH Series, 3-Func, 3-Input, CMOS, PDSO14, | SN74HC11DG4 vs GD54HC11D |
| SN74HC11DRE4 | Texas Instruments | Check for Price | HC/UH SERIES, TRIPLE 3-INPUT AND GATE, PDSO14, GREEN, PLASTIC, SOIC-14 | SN74HC11DG4 vs SN74HC11DRE4 |
| MC74HC11AD | Motorola Semiconductor Products | Check for Price | AND Gate, HC/UH Series, 3-Func, 3-Input, CMOS, PDSO14, PLASTIC, SOIC-14 | SN74HC11DG4 vs MC74HC11AD |
| TC74HC11AFN-ELP | Toshiba America Electronic Components | Check for Price | IC HC/UH SERIES, TRIPLE 3-INPUT AND GATE, PDSO14, 0.150 INCH, PLASTIC, SOIC-14, Gate | SN74HC11DG4 vs TC74HC11AFN-ELP |
| SN74HC11DTE4 | Rochester Electronics LLC | Check for Price | AND Gate, HC/UH Series, 3-Func, 3-Input, CMOS, PDSO14, GREEN, PLASTIC, SOIC-14 | SN74HC11DG4 vs SN74HC11DTE4 |
| 933714290653 | NXP Semiconductors | Check for Price | IC HC/UH SERIES, TRIPLE 3-INPUT AND GATE, PDSO14, SO-14, Gate | SN74HC11DG4 vs 933714290653 |
| MC74HC11ADT | Motorola Semiconductor Products | Check for Price | AND Gate, HC/UH Series, 3-Func, 3-Input, CMOS, PDSO14, PLASTIC, TSSOP-14 | SN74HC11DG4 vs MC74HC11ADT |
| CD74HC11M | Rochester Electronics LLC | Check for Price | AND Gate, HC/UH Series, 3-Func, 3-Input, CMOS, PDSO14, PACKAGE-14 | SN74HC11DG4 vs CD74HC11M |
| MC74HC11ADT | Motorola Mobility LLC | Check for Price | HC/UH SERIES, TRIPLE 3-INPUT AND GATE, PDSO14, PLASTIC, TSSOP-14 | SN74HC11DG4 vs MC74HC11ADT |
