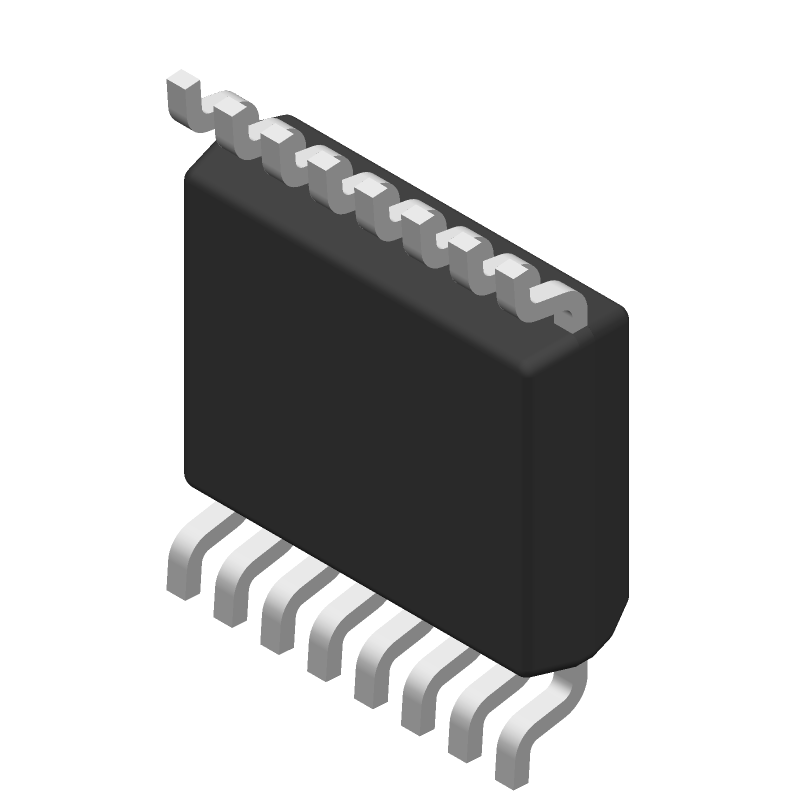

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN74CBT3251DBQR by Texas Instruments
Results Overview of SN74CBT3251DBQR by Texas Instruments
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Consumer Electronics
Financial Technology (Fintech)
Computing and Data Storage
Aerospace and Defense
Telecommunications
Communication and Networking
SN74CBT3251DBQR Information
SN74CBT3251DBQR by Texas Instruments is a Multiplexer/Demultiplexer.
Multiplexer/Demultiplexers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| SN74CBT3251DBQR | Texas Instruments | 1-Of-8 FET Multiplexer/Demultiplexer 16-SSOP -40 to 85 |
Price & Stock for SN74CBT3251DBQR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-6429-1-ND
|
DigiKey | IC MUX/DEMUX 1 X 8:1 16-SSOP Min Qty: 1 Lead time: 18 Weeks Container: Cut Tape (CT), Tape & Reel (TR) |
117 In Stock |
|
$0.3125 / $0.7300 | Buy Now |
|
DISTI #
595-SN74CBT3251DBQR
|
Mouser Electronics | Multiplexer Switch ICs 1-of-8 FET RoHS: Compliant | 3444 |
|
$0.3120 / $0.7300 | Buy Now |
|
|
Bristol Electronics | 288 |
|
RFQ | ||
|
|
Quest Components | IC, 1-OF-8 FET MULTIPLEXER/DEMULTIPLEXER, QSOP-16 | 1743 |
|
$0.2738 / $0.6570 | Buy Now |
|
|
Rochester Electronics | SN74CBT3251 1-Of-8 FET Multiplexer/Demultiplexer RoHS: Compliant Status: Not Recommended for New Designs Min Qty: 1 | 519 |
|
$0.2236 / $0.3606 | Buy Now |
|
|
LCSC | 4.5V5.5V SSOP-16-150mil Signal Switches Multiplexers Decoders ROHS | 10 |
|
$0.3078 / $0.5568 | Buy Now |
|
|
Vyrian | Logic ICs | 53 |
|
RFQ | |
|
|
Win Source Electronics | IC 1-OF-8 FET MUX/DEMUX 16SSOP | 2500 |
|
$0.5631 / $0.8445 | Buy Now |
Part Details for SN74CBT3251DBQR
SN74CBT3251DBQR CAD Models
SN74CBT3251DBQR Part Data Attributes
|
|
SN74CBT3251DBQR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74CBT3251DBQR
Texas Instruments
5-V, 8:1 1-channel general-purpose FET bus switch 16-SSOP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | GREEN, PLASTIC, QSOP-16 | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | TTL COMPATIBLE MUX/DMUX SWITCH | |
| Control Type | ENABLE LOW | |
| Count Direction | BIDIRECTIONAL | |
| Family | CBT/FST/QS/5C/B | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | BUS EXCHANGER | |
| Moisture Sensitivity Level | 2 | |
| Number of Bits | 8 | |
| Number of Functions | 1 | |
| Number of Ports | 8 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-STATE | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.003 mA | |
| Prop. Delay@Nom-Sup | 0.24 ns | |
| Propagation Delay (tpd) | 0.35 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 4 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.635 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
