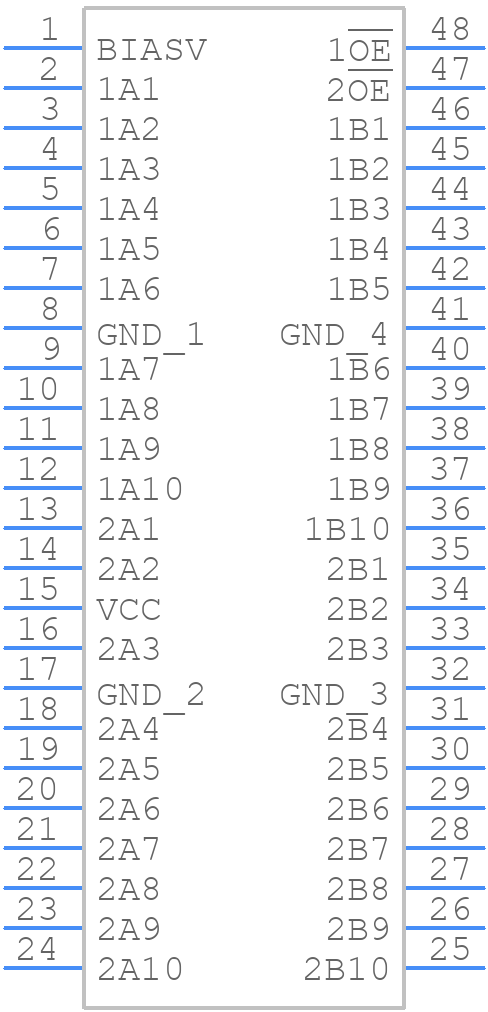

Part Symbol
-
Footprint
-

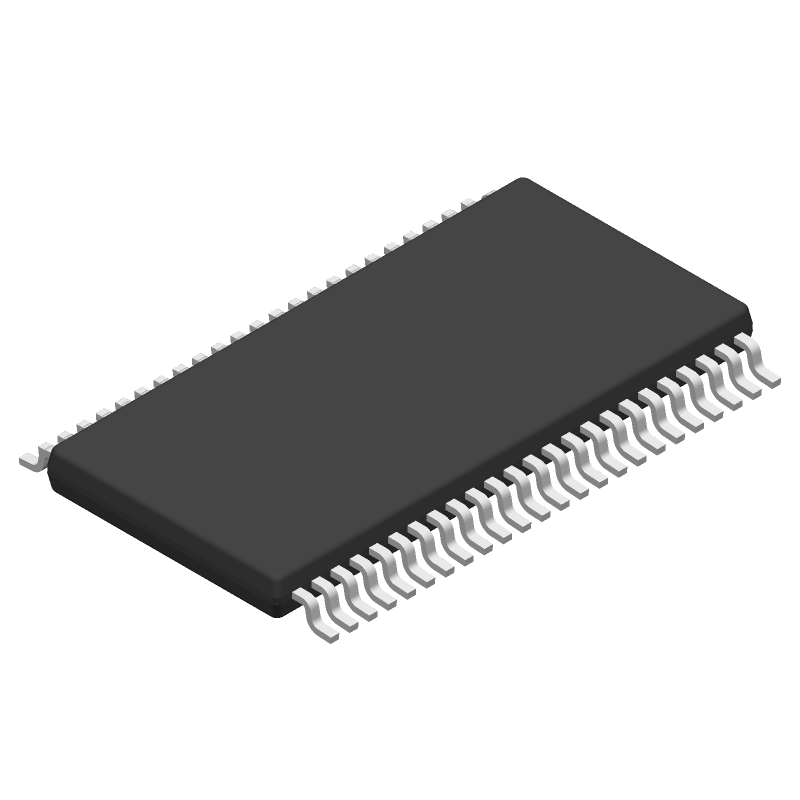

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
5-V, 1:1 (SPST), 20-channel FET bus switch with precharged outputs & -2-V undershoot protection 48-TSSOP -40 to 85
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SN74CBT16800CDGGR by Texas Instruments is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Part # | Distributor | Description | Stock | Price | Buy | |
---|---|---|---|---|---|---|
DISTI #
2156-SN74CBT16800CDGGR-ND
|
DigiKey | IC BUS SWITCH 10 X 1:1 48-TSSOP Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT |
2045 In Stock |
|
$0.7700 | Buy Now |
DISTI #
296-19181-1-ND
|
DigiKey | IC BUS SWITCH 10 X 1:1 48-TSSOP Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.5831 / $1.2600 | Buy Now |
DISTI #
595-SN74CBT16800CDGG
|
Mouser Electronics | Digital Bus Switch ICs 3.3V ABT Quad Bus Bu ff W/3-St Otpt RoHS: Compliant | 0 |
|
$0.5800 / $0.6200 | Order Now |
DISTI #
86026170
|
Verical | Bus Switch 2-Element CMOS 20-IN 48-Pin TSSOP T/R RoHS: Compliant Min Qty: 406 Package Multiple: 1 Date Code: 0301 | Americas - 1207 |
|
$0.5736 / $0.9253 | Buy Now |
DISTI #
86025773
|
Verical | Bus Switch 2-Element CMOS 20-IN 48-Pin TSSOP T/R RoHS: Compliant Min Qty: 406 Package Multiple: 1 Date Code: 1401 | Americas - 831 |
|
$0.5736 / $0.9253 | Buy Now |
|
Rochester Electronics | SN74CBT16800C 20-Bit FET Bus Switch With Precharged Outputs and -2 V Undershoot Protection RoHS: Compliant Status: Active Min Qty: 1 | 2045 |
|
$0.4589 / $0.7402 | Buy Now |
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
|
SN74CBT16800CDGGR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74CBT16800CDGGR
Texas Instruments
5-V, 1:1 (SPST), 20-channel FET bus switch with precharged outputs & -2-V undershoot protection 48-TSSOP -40 to 85
|
Pbfree Code | Yes | |
Rohs Code | Yes | |
Part Life Cycle Code | Active | |
Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
Part Package Code | TSSOP | |
Package Description | TSSOP-48 | |
Pin Count | 48 | |
Reach Compliance Code | compliant | |
ECCN Code | EAR99 | |
HTS Code | 8542.39.00.01 | |
Samacsys Manufacturer | Texas Instruments | |
Control Type | ENABLE LOW | |
Count Direction | BIDIRECTIONAL | |
Family | CBT/FST/QS/5C/B | |
JESD-30 Code | R-PDSO-G48 | |
JESD-609 Code | e4 | |
Length | 12.5 mm | |
Logic IC Type | BUS DRIVER | |
Moisture Sensitivity Level | 1 | |
Number of Bits | 1 | |
Number of Functions | 20 | |
Number of Ports | 2 | |
Number of Terminals | 48 | |
Operating Temperature-Max | 85 °C | |
Operating Temperature-Min | -40 °C | |
Output Characteristics | 3-STATE | |
Output Polarity | TRUE | |
Package Body Material | PLASTIC/EPOXY | |
Package Code | TSSOP | |
Package Equivalence Code | TSSOP48,.3,20 | |
Package Shape | RECTANGULAR | |
Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
Packing Method | TR | |
Peak Reflow Temperature (Cel) | 260 | |
Power Supply Current-Max (ICC) | 0.003 mA | |
Prop. Delay@Nom-Sup | 0.15 ns | |
Propagation Delay (tpd) | 0.24 ns | |
Qualification Status | Not Qualified | |
Seated Height-Max | 1.2 mm | |
Supply Voltage-Max (Vsup) | 5.5 V | |
Supply Voltage-Min (Vsup) | 4 V | |
Supply Voltage-Nom (Vsup) | 5 V | |
Surface Mount | YES | |
Technology | CMOS | |
Temperature Grade | INDUSTRIAL | |
Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
Terminal Form | GULL WING | |
Terminal Pitch | 0.5 mm | |
Terminal Position | DUAL | |
Time@Peak Reflow Temperature-Max (s) | 30 | |
Width | 6.1 mm |
