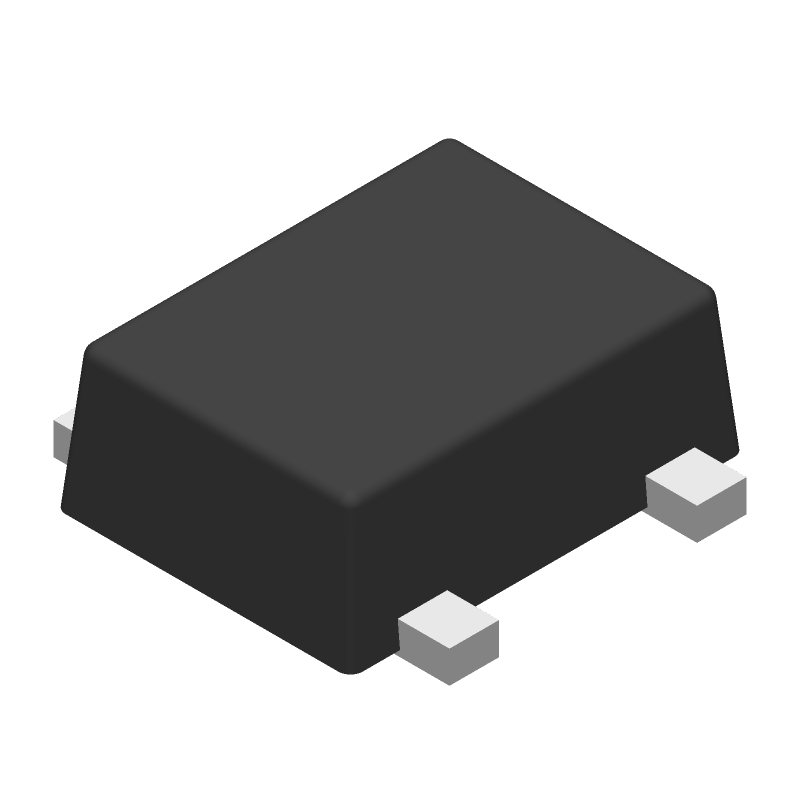

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN74AUP1G14DRLR by Texas Instruments
Results Overview of SN74AUP1G14DRLR by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SN74AUP1G14DRLR Information
SN74AUP1G14DRLR by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74AUP1G14DRLR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-18314-1-ND
|
DigiKey | IC INVERT SCHMITT 1CH 1-INP SOT5 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
23343 In Stock |
|
$0.1113 / $0.2900 | Buy Now |
|
DISTI #
595-SN74AUP1G14DRLR
|
Mouser Electronics | Inverters Lo Pwr Sngl Schmtt T rggr Invrtr RoHS: Compliant | 5411 |
|
$0.1120 / $0.2500 | Buy Now |
|
DISTI #
V72:2272_07328857
|
Arrow Electronics | Inverter Schmitt Trigger 1-Element CMOS 5-Pin SOT-553 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2223 Container: Cut Strips | Americas - 7888 |
|
$0.1088 / $0.1200 | Buy Now |
|
|
Quest Components | AUP/ULP/V SERIES, 1-INPUT INVERT GATE, PDSO5 | 60 |
|
$0.1606 / $0.2409 | Buy Now |
Part Details for SN74AUP1G14DRLR
SN74AUP1G14DRLR CAD Models
SN74AUP1G14DRLR Part Data Attributes
|
|
SN74AUP1G14DRLR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74AUP1G14DRLR
Texas Instruments
Single 0.8-V to 3.6-V low power inverter with Schmitt-Trigger inputs 5-SOT-5X3 -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | GREEN, PLASTIC, SOP-5 | |
| Pin Count | 5 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Family | AUP/ULP/V | |
| JESD-30 Code | R-PDSO-F5 | |
| JESD-609 Code | e4 | |
| Length | 1.6 mm | |
| Load Capacitance (CL) | 30 pF | |
| Logic IC Type | INVERTER | |
| Max I(ol) | 0.004 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Inputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-STATE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSOF | |
| Package Equivalence Code | FL6,.03,14 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.0009 mA | |
| Prop. Delay@Nom-Sup | 20.5 ns | |
| Propagation Delay (tpd) | 20.5 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | YES | |
| Seated Height-Max | 0.6 mm | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 0.8 V | |
| Supply Voltage-Nom (Vsup) | 1.2 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag) | |
| Terminal Form | FLAT | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.2 mm |
Alternate Parts for SN74AUP1G14DRLR
This table gives cross-reference parts and alternative options found for SN74AUP1G14DRLR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74AUP1G14DRLR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SN74AUP1G14DRLRG4 | Texas Instruments | Check for Price | Low-Power Single Schmitt-Trigger Inverter 5-SOT -40 to 85 | SN74AUP1G14DRLR vs SN74AUP1G14DRLRG4 |
SN74AUP1G14DRLR Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the SN74AUP1G14DRLR is 100 MHz.
-
Yes, the SN74AUP1G14DRLR is 5V tolerant, meaning it can accept input voltages up to 5.5V even though its recommended operating voltage is 1.65V to 3.6V.
-
The propagation delay of the SN74AUP1G14DRLR is approximately 2.5 ns at 1.8V and 25°C.
-
Yes, the SN74AUP1G14DRLR is rated for operation up to 125°C, making it suitable for use in high-temperature applications.
-
The power consumption of the SN74AUP1G14DRLR is typically around 10 μA at 1.8V and 25°C, making it a low-power device.
