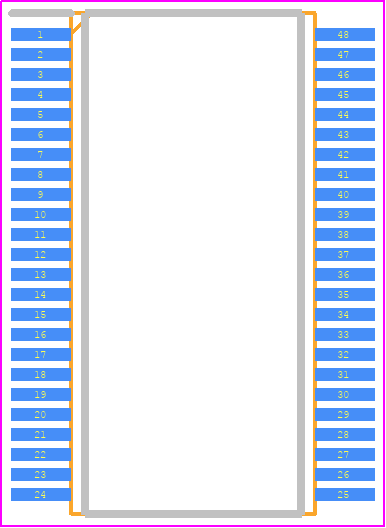

Footprint
-

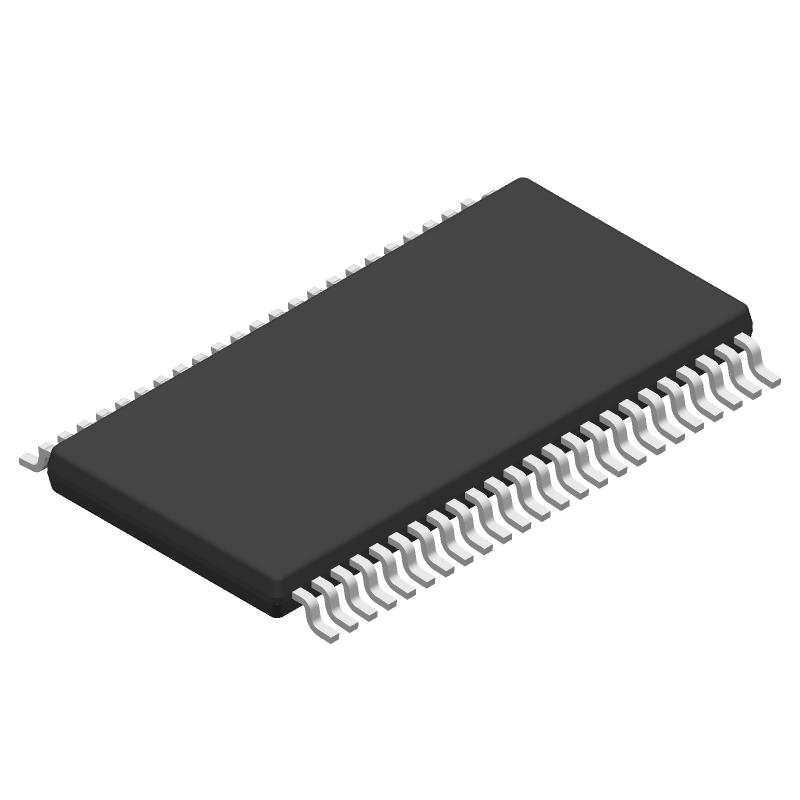

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN74ABTE16245DGGR by Texas Instruments
Results Overview of SN74ABTE16245DGGR by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Computing and Data Storage
Financial Technology (Fintech)
SN74ABTE16245DGGR Information
SN74ABTE16245DGGR by Texas Instruments is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| SN74ABTE16245DGGR | Texas Instruments | 16-bit Incident-Wave Switching Bus Transceivers With 3-State Outputs 48-TSSOP -40 to 85 |
Price & Stock for SN74ABTE16245DGGR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-9755-1-ND
|
DigiKey | IC 16BIT I-WS BUS TXRX 48-TSSOP Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
2268 In Stock |
|
$6.5732 / $11.0000 | Buy Now |
|
DISTI #
595-SN74ABTE16245DGG
|
Mouser Electronics | Bus Transceivers 16-bit Incident-Wave Switching Bus Trncv RoHS: Compliant | 996 |
|
$6.5200 / $11.0000 | Buy Now |
|
|
Bristol Electronics | 702 |
|
RFQ | ||
|
|
Quest Components | ABTE/ETL SERIES, DUAL 8-BIT TRANSCEIVER, TRUE OUTPUT, TSSOP-48 | 199 |
|
$6.0651 / $11.0274 | Buy Now |
|
|
Quest Components | ABTE/ETL SERIES, DUAL 8-BIT TRANSCEIVER, TRUE OUTPUT, TSSOP-48 | 4 |
|
$5.5137 / $11.0274 | Buy Now |
|
DISTI #
SN74ABTE16245DGGR
|
TME | IC: digital, bus transceiver, Ch: 16, CMOS,TTL, 4.5÷5.5VDC, SMD Min Qty: 1 | 0 |
|
$8.9200 / $9.9000 | RFQ |
Part Details for SN74ABTE16245DGGR
SN74ABTE16245DGGR CAD Models
SN74ABTE16245DGGR Part Data Attributes
|
|
SN74ABTE16245DGGR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74ABTE16245DGGR
Texas Instruments
16-bit Incident-Wave Switching Bus Transceivers With 3-State Outputs 48-TSSOP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TSSOP | |
| Package Description | TSSOP-48 | |
| Pin Count | 48 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | B PORT WITH 25 OHM SERIES RESISTOR | |
| Control Type | COMMON CONTROL | |
| Count Direction | BIDIRECTIONAL | |
| Family | ABTE/ETL | |
| JESD-30 Code | R-PDSO-G48 | |
| JESD-609 Code | e4 | |
| Length | 12.5 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | BUS TRANSCEIVER | |
| Max I(ol) | 0.09 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 8 | |
| Number of Functions | 16 | |
| Number of Ports | 2 | |
| Number of Terminals | 48 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-STATE | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP48,.3,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 35 mA | |
| Prop. Delay@Nom-Sup | 5.2 ns | |
| Propagation Delay (tpd) | 7.3 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Seated Height-Max | 1.2 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 6.1 mm |
Alternate Parts for SN74ABTE16245DGGR
This table gives cross-reference parts and alternative options found for SN74ABTE16245DGGR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74ABTE16245DGGR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 74ABTE16245DGGRG4 | Texas Instruments | Check for Price | ABTE/ETL SERIES, DUAL 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO48, GREEN, PLASTIC, TSSOP-48 | SN74ABTE16245DGGR vs 74ABTE16245DGGRG4 |
SN74ABTE16245DGGR Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the SN74ABTE16245DGGR is 100 MHz.
-
The SN74ABTE16245DGGR is a 3-state buffer, meaning it has three output states: high, low, and high-impedance (Hi-Z).
-
The propagation delay of the SN74ABTE16245DGGR is approximately 2.5 ns.
-
Yes, the SN74ABTE16245DGGR is compatible with both 5V and 3.3V systems, making it a versatile component for various applications.
-
The power consumption of the SN74ABTE16245DGGR is relatively low, with a typical quiescent current of 20 μA and a maximum power dissipation of 150 mW.
