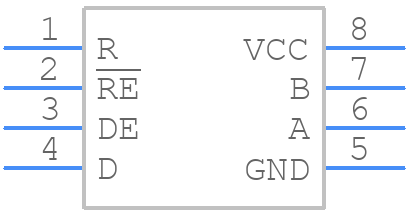

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN65MLVD200DR by Texas Instruments
Results Overview of SN65MLVD200DR by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (8 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SN65MLVD200DR Information
SN65MLVD200DR by Texas Instruments is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for SN65MLVD200DR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
SN65MLVD200DR-ND
|
DigiKey | IC TRANSCEIVER HALF 1/1 8SOIC Min Qty: 2500 Lead time: 18 Weeks Container: Tape & Reel (TR) | Limited Supply - Call |
|
$2.9717 | Buy Now |
|
|
Cytech Systems Limited | IC TRANSCEIVER HALF 1/1 8SOIC | 905 |
|
RFQ | |
|
|
Vyrian | Peripheral ICs | 293 |
|
RFQ |
Part Details for SN65MLVD200DR
SN65MLVD200DR CAD Models
SN65MLVD200DR Part Data Attributes
|
|
SN65MLVD200DR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN65MLVD200DR
Texas Instruments
Half-duplex M-LVDS transceiver 8-SOIC -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | End Of Life | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | SOP, SOP8,.25 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 5A991.B.1 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Differential Output | YES | |
| Driver Number of Bits | 1 | |
| High Level Input Current-Max | 0.00001 A | |
| Input Characteristics | DIFFERENTIAL SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-899; TIA-899 | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Out Swing-Min | 0.48 V | |
| Output Characteristics | DIFFERENTIAL | |
| Output Low Current-Max | 0.008 A | |
| Output Polarity | COMPLEMENTARY | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receive Delay-Max | 6.7 ns | |
| Receiver Number of Bits | 1 | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max | 26 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transmit Delay-Max | 4.1 ns | |
| Width | 3.9 mm |
Alternate Parts for SN65MLVD200DR
This table gives cross-reference parts and alternative options found for SN65MLVD200DR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN65MLVD200DR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SN65MLVD200ADR | Texas Instruments | $1.4749 | Half-duplex M-LVDS transceiver 8-SOIC -40 to 85 | SN65MLVD200DR vs SN65MLVD200ADR |
| SN65MLVD200AD | Texas Instruments | $1.8764 | Half-duplex M-LVDS transceiver 8-SOIC -40 to 85 | SN65MLVD200DR vs SN65MLVD200AD |
| SN65MLVD200D | Texas Instruments | $4.7658 | Half-duplex M-LVDS transceiver 8-SOIC -40 to 85 | SN65MLVD200DR vs SN65MLVD200D |
| ADN4690EBRZ | Analog Devices Inc | Check for Price | 3.3 V, 100 Mbps, Half-Duplex, High Speed M-LVDS Transceiver with Type 1 Receiver | SN65MLVD200DR vs ADN4690EBRZ |
| SN65MLVD200ADRG4 | Texas Instruments | Check for Price | Half-duplex M-LVDS transceiver 8-SOIC -40 to 85 | SN65MLVD200DR vs SN65MLVD200ADRG4 |
| ADN4690EBRZ-RL7 | Analog Devices Inc | Check for Price | 3.3 V, 100 Mbps, Half-Duplex, High Speed M-LVDS Transceiver with Type 1 Receiver | SN65MLVD200DR vs ADN4690EBRZ-RL7 |
| SN65MLVD200ADG4 | Texas Instruments | Check for Price | Half-duplex M-LVDS transceiver 8-SOIC -40 to 85 | SN65MLVD200DR vs SN65MLVD200ADG4 |
| SN65MLVD200DG4 | Texas Instruments | Check for Price | Half-duplex M-LVDS transceiver 8-SOIC -40 to 85 | SN65MLVD200DR vs SN65MLVD200DG4 |
