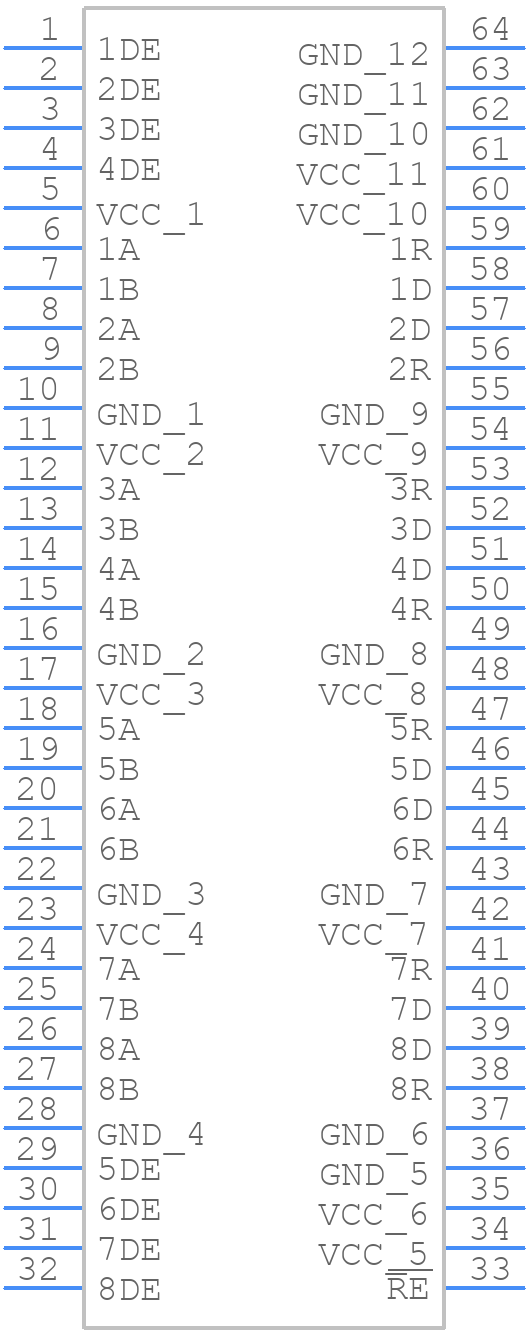

Part Symbol
-

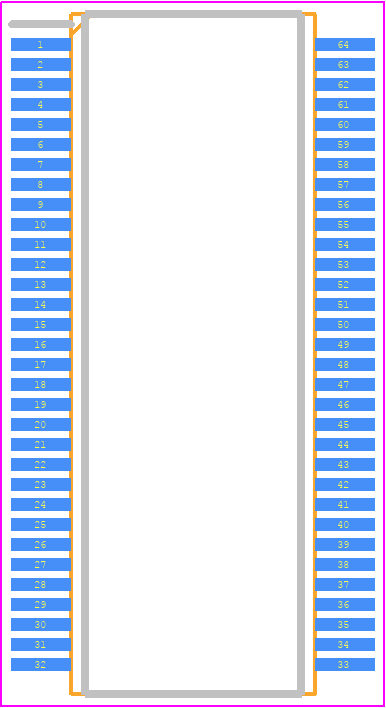

Footprint
-

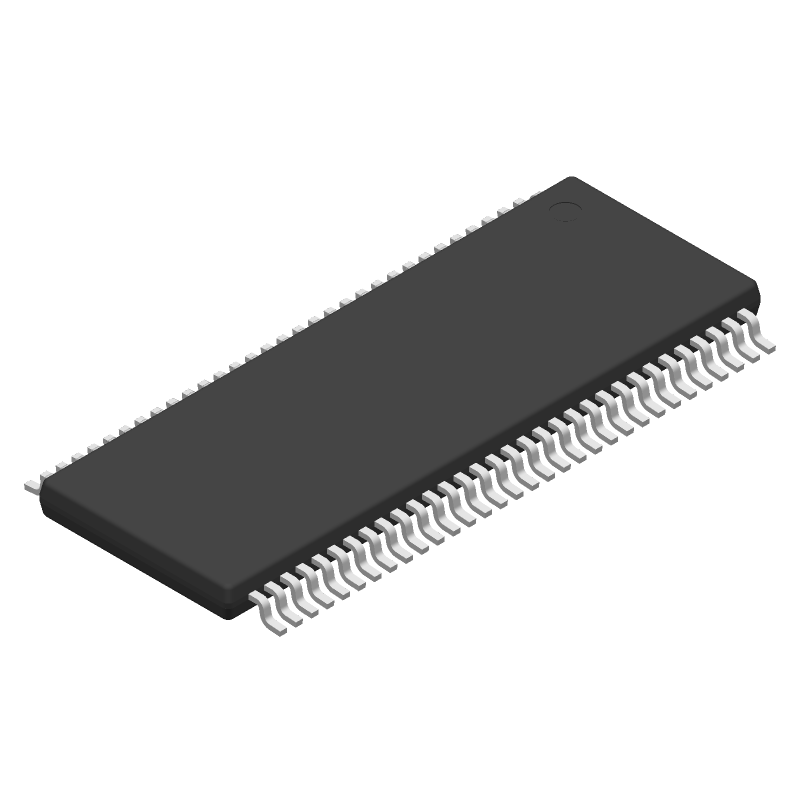

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN65MLVD080DGGRG4 by Texas Instruments
Results Overview of SN65MLVD080DGGRG4 by Texas Instruments
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SN65MLVD080DGGRG4 Information
SN65MLVD080DGGRG4 by Texas Instruments is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for SN65MLVD080DGGRG4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
595-SN65MLVD080DGGRG
|
Mouser Electronics | LVDS Interface IC 8-Ch Half-Duplex M-L VDS Transceiver A 595-SN65MLVD080DGGR RoHS: Compliant | 0 |
|
$3.5100 | Order Now |
Part Details for SN65MLVD080DGGRG4
SN65MLVD080DGGRG4 CAD Models
SN65MLVD080DGGRG4 Part Data Attributes
|
|
SN65MLVD080DGGRG4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN65MLVD080DGGRG4
Texas Instruments
8-channel half-duplex M-LVDS transceiver 64-TSSOP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TSSOP | |
| Package Description | TSSOP, TSSOP64,.32,20 | |
| Pin Count | 64 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Differential Output | YES | |
| Driver Number of Bits | 8 | |
| High Level Input Current-Max | 0.00001 A | |
| Input Characteristics | DIFFERENTIAL SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-899; TIA-899 | |
| JESD-30 Code | R-PDSO-G64 | |
| JESD-609 Code | e4 | |
| Length | 17 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 8 | |
| Number of Terminals | 64 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Out Swing-Min | 0.48 V | |
| Output Characteristics | DIFFERENTIAL | |
| Output Low Current-Max | 0.008 A | |
| Output Polarity | COMPLEMENTARY | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP64,.32,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receive Delay-Max | 6 ns | |
| Receiver Number of Bits | 8 | |
| Seated Height-Max | 1.2 mm | |
| Supply Current-Max | 180 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Supply Voltage1-Max | 3.6 V | |
| Supply Voltage1-Min | 3 V | |
| Supply Voltage1-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transmit Delay-Max | 2.4 ns | |
| Width | 6.1 mm |
Alternate Parts for SN65MLVD080DGGRG4
This table gives cross-reference parts and alternative options found for SN65MLVD080DGGRG4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN65MLVD080DGGRG4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SN65MLVD080DGGR | Texas Instruments | $3.2282 | 8-channel half-duplex M-LVDS transceiver 64-TSSOP -40 to 85 | SN65MLVD080DGGRG4 vs SN65MLVD080DGGR |
| SN65MLVD080DGG | Texas Instruments | $4.5033 | 8-channel half-duplex M-LVDS transceiver 64-TSSOP -40 to 85 | SN65MLVD080DGGRG4 vs SN65MLVD080DGG |
| SN65MLVD080DGGG4 | Texas Instruments | Check for Price | 8-channel half-duplex M-LVDS transceiver 64-TSSOP -40 to 85 | SN65MLVD080DGGRG4 vs SN65MLVD080DGGG4 |
| SM65MLVD080DGGR | Texas Instruments | Check for Price | OCTAL LINE TRANSCEIVER, PDSO64, PLASTIC, TSSOP-64 | SN65MLVD080DGGRG4 vs SM65MLVD080DGGR |
