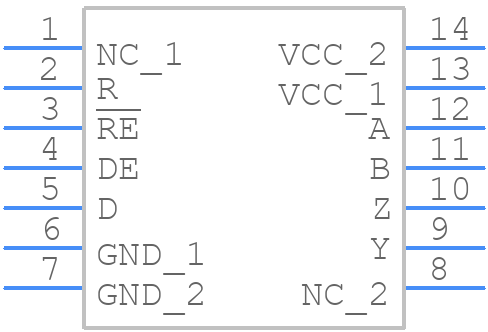

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN65HVD34DR by Texas Instruments
Results Overview of SN65HVD34DR by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SN65HVD34DR Information
SN65HVD34DR by Texas Instruments is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for SN65HVD34DR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-18705-1-ND
|
DigiKey | IC TRANSCEIVER FULL 1/1 14SOIC Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2354 In Stock |
|
$2.2003 / $4.0400 | Buy Now |
|
DISTI #
595-SN65HVD34DR
|
Mouser Electronics | RS-422/RS-485 Interface IC 3V Full-Dplx Driver and Receiver A 595-SN65HVD34D RoHS: Compliant | 2345 |
|
$2.1800 / $4.0400 | Buy Now |
|
DISTI #
V72:2272_07321040
|
Arrow Electronics | Single Transmitter/Receiver RS-422/RS-485 14-Pin SOIC T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2228 Container: Cut Strips | Americas - 459 |
|
$2.0710 / $2.9100 | Buy Now |
|
DISTI #
63047469
|
Verical | Single Transmitter/Receiver RS-422/RS-485 14-Pin SOIC T/R RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2228 | Americas - 459 |
|
$2.0710 / $2.9100 | Buy Now |
|
|
Rochester Electronics | SN65HVD34 3V Full-Duplex RS-485 Driver and Receiver with enables RoHS: Compliant Status: Active Min Qty: 1 | 22 |
|
$1.7000 / $2.1300 | Buy Now |
|
|
LCSC | Transceiver 5Mbps SOIC-14 RS-485 / RS-422 ICs ROHS | 1744 |
|
$1.0340 / $1.7928 | Buy Now |
|
|
Vyrian | Interface ICs | 1948 |
|
RFQ |
Part Details for SN65HVD34DR
SN65HVD34DR CAD Models
SN65HVD34DR Part Data Attributes
|
|
SN65HVD34DR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN65HVD34DR
Texas Instruments
3V Full-Duplex RS-485 Driver and Receiver with enables 14-SOIC -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | GREEN, PLASTIC, SOIC-14 | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | SIGNALING RATE 5MBPS | |
| Differential Output | YES | |
| Driver Number of Bits | 1 | |
| Input Characteristics | DIFFERENTIAL SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-422-B; TIA-422-B; EIA-485-A; TIA-485-A; V.11 | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 8.65 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Out Swing-Min | 1.5 V | |
| Output Characteristics | 3-STATE | |
| Output Low Current-Max | 0.06 A | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receive Delay-Max | 70 ns | |
| Receiver Number of Bits | 1 | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max | 6.5 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Supply Voltage1-Max | 3.6 V | |
| Supply Voltage1-Min | 3 V | |
| Supply Voltage1-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transmit Delay-Max | 65 ns | |
| Width | 3.9 mm |
SN65HVD34DR Frequently Asked Questions (FAQ)
-
The maximum cable length supported by the SN65HVD34DR is dependent on the baud rate and the type of cable used. As a general guideline, the maximum cable length is around 100 meters at 9600 bps and 10 meters at 1 Mbps.
-
The SN65HVD34DR can be configured for half-duplex or full-duplex operation by connecting the RTS (Request to Send) pin to the CTS (Clear to Send) pin for half-duplex operation, or by connecting the RTS pin to a logic high and the CTS pin to a logic low for full-duplex operation.
-
The SN65HVD34DR supports data rates up to 1 Mbps.
-
The SN65HVD34DR has built-in error detection and correction mechanisms, including parity checking and framing error detection. Additionally, the device has a status register that can be used to monitor the device's operating status and detect errors.
-
Yes, the SN65HVD34DR is designed to operate in harsh environments, including temperatures ranging from -40°C to 85°C, and is suitable for use in industrial and automotive applications.
