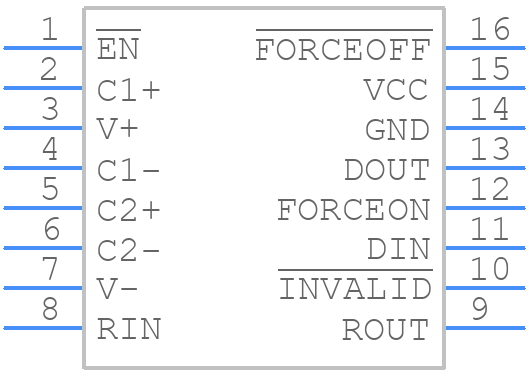

Part Symbol
-

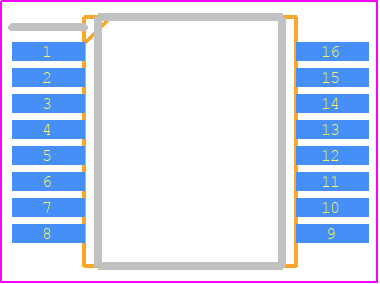

Footprint
-

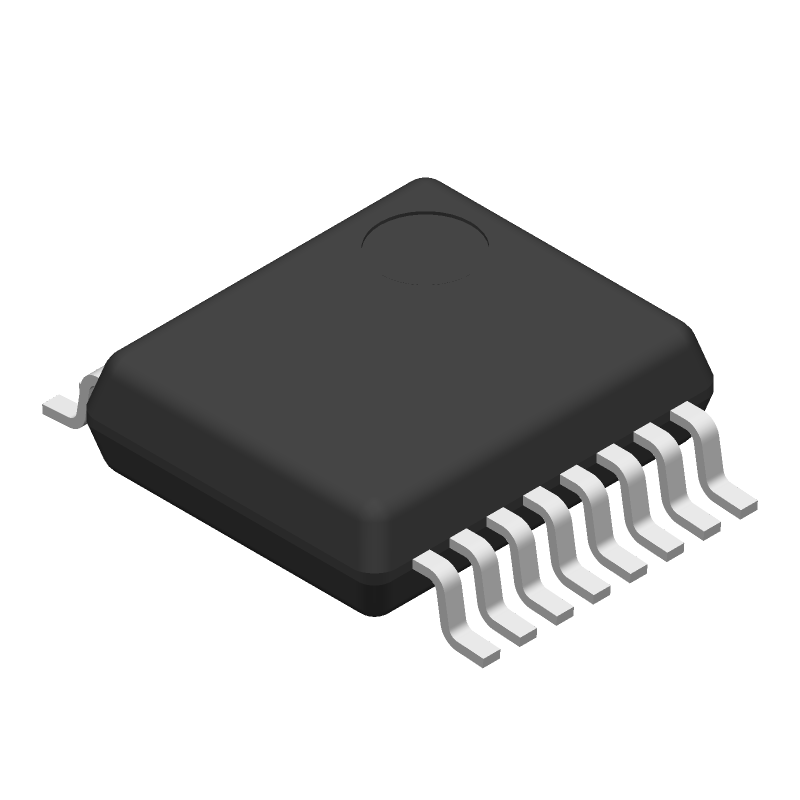

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN65C3221DB by Texas Instruments
Results Overview of SN65C3221DB by Texas Instruments
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (8 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SN65C3221DB Information
SN65C3221DB by Texas Instruments is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for SN65C3221DB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-33559-5-ND
|
DigiKey | IC TRANSCEIVER FULL 1/1 16SSOP Min Qty: 1 Lead time: 6 Weeks Container: Tube |
99 In Stock |
|
$1.7937 / $2.8700 | Buy Now |
Part Details for SN65C3221DB
SN65C3221DB CAD Models
SN65C3221DB Part Data Attributes
|
|
SN65C3221DB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN65C3221DB
Texas Instruments
3- to 5.5-V single channel 1Mbps RS-232 line driver/receiver with +/-15-kV ESD protection 16-SSOP -40 to 85
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | GREEN, PLASTIC, SSOP-16 | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | CAN ALSO OPERATE WITH A 5V SUPPLY | |
| Differential Output | NO | |
| Driver Number of Bits | 1 | |
| High Level Input Current-Max | 0.000001 A | |
| Input Characteristics | SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-232 | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 6.2 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Out Swing-Min | 10 V | |
| Output Low Current-Max | 0.0016 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP16,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receiver Number of Bits | 1 | |
| Seated Height-Max | 2 mm | |
| Supply Current-Max | 1 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Supply Voltage1-Max | 3.6 V | |
| Supply Voltage1-Min | 3 V | |
| Supply Voltage1-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 5.3 mm |
Alternate Parts for SN65C3221DB
This table gives cross-reference parts and alternative options found for SN65C3221DB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN65C3221DB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SN75C3221DBR | Texas Instruments | $0.9404 | 3- to 5.5-V single channel 1Mbps RS-232 line driver/receiver with +/-15-kV ESD protection 16-SSOP 0 to 70 | SN65C3221DB vs SN75C3221DBR |
| MAX3221EIDB | Texas Instruments | $1.2343 | 3- to 5.5-V single channel 250kbps RS-232 line driver/receiver with +/-15-kV IEC-ESD protection 16-SSOP -40 to 85 | SN65C3221DB vs MAX3221EIDB |
| SN65C3221EDB | Texas Instruments | $1.4067 | 3- to 5.5-V single channel 1Mbps RS-232 line driver/receiver with +/-15-kV IEC-ESD protection 16-SSOP -40 to 85 | SN65C3221DB vs SN65C3221EDB |
| TRSF3221ECDBRG4 | Texas Instruments | Check for Price | 3- to 5.5-V single channel 1Mbps RS-232 line driver/receiver with +/-15-kV IEC-ESD protection 16-SSOP 0 to 70 | SN65C3221DB vs TRSF3221ECDBRG4 |
| ICL3221CAZ-T | Intersil Corporation | Check for Price | 1µA Supply-Current, +3V to +5.5V, 250kbps, RS-232 Transmitters/Receivers; SSOP16, TSSOP16; Temp Range: See Datasheet | SN65C3221DB vs ICL3221CAZ-T |
| ICL3221IA-T | Intersil Corporation | Check for Price | LINE TRANSCEIVER, PDSO16, PLASTIC, MO-150AC, SSOP-16 | SN65C3221DB vs ICL3221IA-T |
| ICL3221IAZ-T | Intersil Corporation | Check for Price | 1µA Supply-Current, +3V to +5.5V, 250kbps, RS-232 Transmitters/Receivers; SSOP16, TSSOP16; Temp Range: See Datasheet | SN65C3221DB vs ICL3221IAZ-T |
| SN65C3221DBRE4 | Texas Instruments | Check for Price | 3- to 5.5-V single channel 1Mbps RS-232 line driver/receiver with +/-15-kV ESD protection 16-SSOP -40 to 85 | SN65C3221DB vs SN65C3221DBRE4 |
SN65C3221DB Frequently Asked Questions (FAQ)
-
The maximum cable length supported by the SN65C3221DB is dependent on the baud rate and the type of cable used. As a general guideline, the maximum cable length for a baud rate of 9600 is around 100 meters, while for a baud rate of 115200, it is around 10 meters.
-
The SN65C3221DB can be configured for half-duplex or full-duplex operation by connecting the RTS (Request to Send) and CTS (Clear to Send) pins accordingly. For half-duplex operation, connect RTS to CTS, and for full-duplex operation, connect RTS to a separate output and CTS to a separate input.
-
The power consumption of the SN65C3221DB depends on the operating mode and the supply voltage. In normal operation, the typical power consumption is around 10mA at 5V supply voltage. In shutdown mode, the power consumption is typically less than 1uA.
-
Yes, the SN65C3221DB can be used with a 3.3V supply voltage. However, the output voltage levels will be reduced accordingly, and the device may not be able to drive loads as effectively as it would with a 5V supply voltage.
-
The flow control pins (RTS and CTS) can be handled using a microcontroller's GPIO pins. The microcontroller can generate the RTS signal based on the transmit buffer status, and monitor the CTS signal to control the transmission of data.
