Part Details for SMP30-240 by STMicroelectronics
Results Overview of SMP30-240 by STMicroelectronics
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SMP30-240 Information
SMP30-240 by STMicroelectronics is a Silicon Surge Protector.
Silicon Surge Protectors are under the broader part category of Trigger Devices.
Trigger devices initiate or control actions in electronic circuits by producing output signals when specific input conditions are met. They are commonly used in timing circuits and pulse generators. Read more about Trigger Devices on our Trigger Devices part category page.
Price & Stock for SMP30-240
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-12528-1-ND
|
DigiKey | THYRISTOR 240V 70A DO-214AC Min Qty: 1 Lead time: 15 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.1335 / $0.1642 | Buy Now |
|
DISTI #
SMP30-240
|
Avnet Americas | Thyristor DIAC 240V 14A 2-Pin SMA T/R - Tape and Reel (Alt: SMP30-240) RoHS: Compliant Min Qty: 10000 Package Multiple: 5000 Lead time: 53 Weeks, 1 Days Container: Reel | 0 |
|
$0.1167 / $0.1282 | Buy Now |
|
DISTI #
511-SMP30-240
|
Mouser Electronics | Board Mount Surge Protectors 240V 50uA Bidirect RoHS: Compliant | 1306 |
|
$0.1370 / $0.7500 | Buy Now |
|
|
STMicroelectronics | Thyristor surge protection, 216 V, 30 A, in SMA COO: France RoHS: Compliant Min Qty: 1 | 1306 |
|
$0.2700 / $0.7600 | Buy Now |
|
|
Bristol Electronics | 7512 |
|
RFQ | ||
|
|
Quest Components | 6009 |
|
$0.1748 / $0.9990 | Buy Now | |
|
DISTI #
SMP30-240
|
IBS Electronics | SMP30-240 by ST MICROELECTRONICS is a 240V bidirectional TVS diode array designed for ESD protection, featuring low clamping voltage, high surge capability, and fast response time. Min Qty: 10000 Package Multiple: 1 | 0 |
|
$0.1625 / $0.1690 | Buy Now |
|
DISTI #
SMP30-240
|
Avnet Silica | Thyristor DIAC 240V 14A 2Pin SMA TR (Alt: SMP30-240) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 16 Weeks, 0 Days | Silica - 15000 |
|
Buy Now | |
|
DISTI #
SMP30-240
|
EBV Elektronik | Thyristor DIAC 240V 14A 2Pin SMA TR (Alt: SMP30-240) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 16 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for SMP30-240

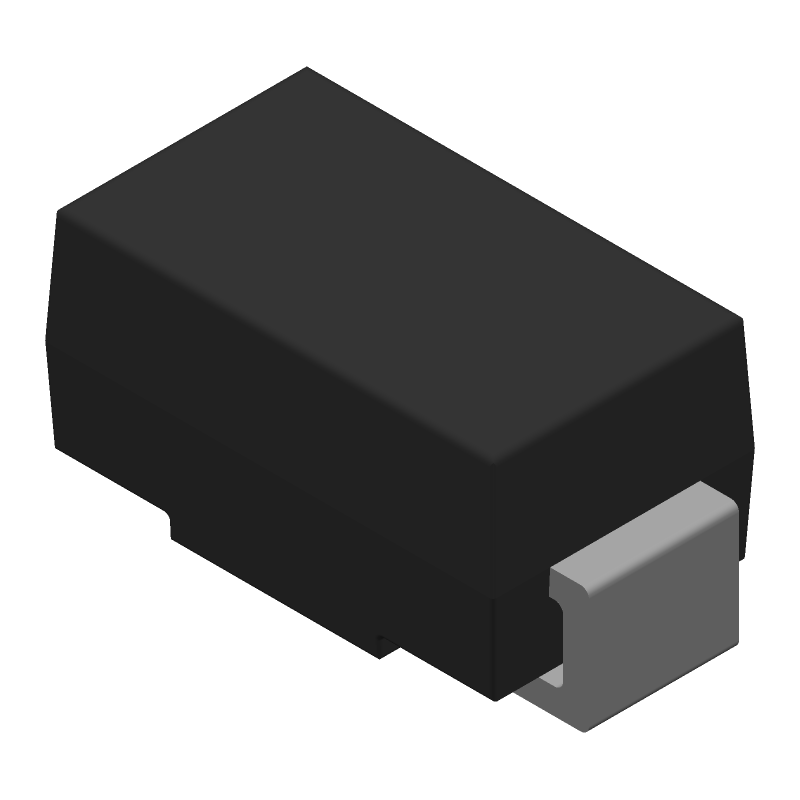

SMP30-240 CAD Models
SMP30-240 Part Data Attributes
|
|
SMP30-240
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
SMP30-240
STMicroelectronics
Trisil Std 30A
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | DO-214AC | |
| Package Description | SMA, 2 PIN | |
| Pin Count | 2 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.30.00.80 | |
| Factory Lead Time | 53 Weeks, 1 Day | |
| Samacsys Manufacturer | STMicroelectronics | |
| Breakover Voltage-Max | 320 V | |
| Configuration | SINGLE | |
| JEDEC-95 Code | DO-214AC | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Non-Repetitive Pk On-state Cur | 14 A | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Trigger Device Type | SILICON SURGE PROTECTOR |
