Part Details for SMMBT3904TT1G by onsemi
Results Overview of SMMBT3904TT1G by onsemi
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Industrial Automation
Electronic Manufacturing
SMMBT3904TT1G Information
SMMBT3904TT1G by onsemi is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for SMMBT3904TT1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
14AC5161
|
Newark | Transistor, Aec-Q101, Npn, 40V, Sot-416, Transistor Polarity:Npn, Collector Emitter Voltage V(Br)Ceo:40V, Transition Frequency Ft:300Mhz, Power Dissipation Pd:200Mw, Dc Collector Current:200Ma, Dc Current Gain Hfe:30Hfe, Transistor Rohs Compliant: Yes |Onsemi SMMBT3904TT1G RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 3610 |
|
$0.1570 / $0.3100 | Buy Now |
|
DISTI #
76T7299
|
Newark | Npn Bipolar Transistor/ Reel |Onsemi SMMBT3904TT1G RoHS: Not Compliant Min Qty: 6000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0550 / $0.0790 | Buy Now |
|
DISTI #
SMMBT3904TT1GOSCT-ND
|
DigiKey | TRANS NPN 40V 0.2A SC75 SOT416 Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
33348 In Stock |
|
$0.0532 / $0.3900 | Buy Now |
|
DISTI #
SMMBT3904TT1G
|
Avnet Americas | Trans GP BJT NPN 40V 0.2A 3-Pin SOT-416 T/R - Tape and Reel (Alt: SMMBT3904TT1G) RoHS: Compliant Min Qty: 9000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.0513 / $0.0546 | Buy Now |
|
DISTI #
863-SMMBT3904TT1G
|
Mouser Electronics | Bipolar Transistors - BJT SS SC75 GP XSTR NPN 60V RoHS: Compliant | 9925 |
|
$0.0560 / $0.3900 | Buy Now |
|
|
Onlinecomponents.com | 200 mA, 40 V NPN Bipolar Junction Transistor RoHS: Compliant | 0 |
|
$0.0515 / $0.0584 | Buy Now |
|
DISTI #
87650091
|
Verical | Trans GP BJT NPN 40V 0.2A 300mW Automotive AEC-Q101 3-Pin SOT-416 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 | Americas - 141000 |
|
$0.0609 | Buy Now |
|
DISTI #
86018151
|
Verical | Trans GP BJT NPN 40V 0.2A 300mW Automotive AEC-Q101 3-Pin SOT-416 T/R RoHS: Compliant Min Qty: 4161 Package Multiple: 1 Date Code: 2201 | Americas - 18000 |
|
$0.0901 | Buy Now |
|
|
Rochester Electronics | MMBT3904T - NPN Bipolar Transistor RoHS: Compliant Status: Active Min Qty: 1 | 18000 |
|
$0.0447 / $0.0721 | Buy Now |
|
DISTI #
SMMBT3904TT1G
|
TME | Transistor: NPN, bipolar, 40V, 0.2A, 0.3W, SC75,SOT416 Min Qty: 1 | 0 |
|
$0.0630 / $0.4520 | RFQ |
Part Details for SMMBT3904TT1G

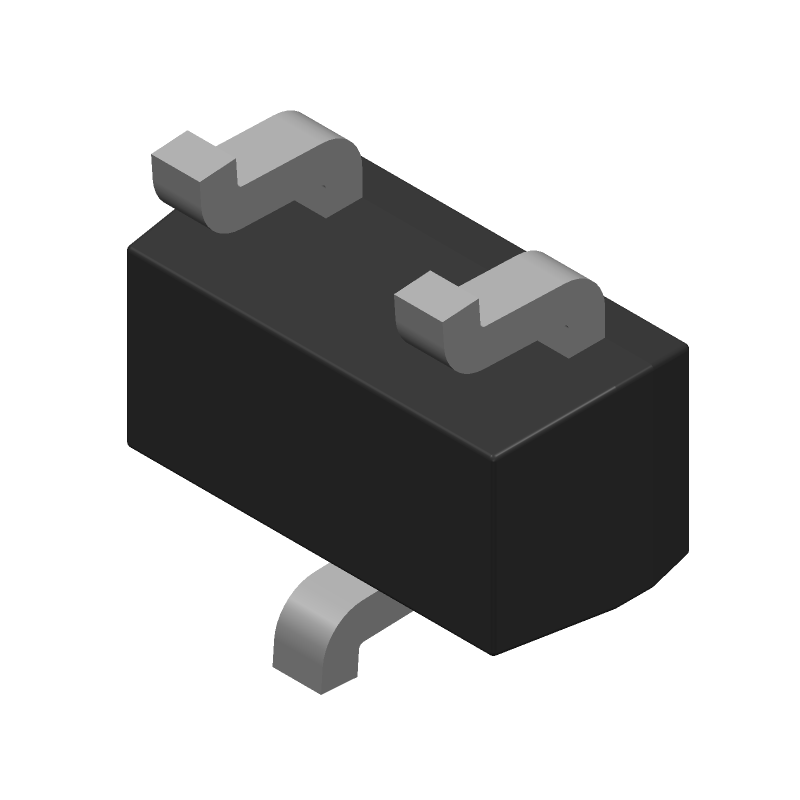

SMMBT3904TT1G CAD Models
SMMBT3904TT1G Part Data Attributes
|
|
SMMBT3904TT1G
onsemi
Buy Now
Datasheet
|
Compare Parts:
SMMBT3904TT1G
onsemi
200 mA, 40 V NPN Bipolar Junction Transistor, SC-75 (SOT-416) 3 LEAD, 3000-REEL, Automotive Qualified
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SC-75 (SOT-416) 3 LEAD | |
| Pin Count | 3 | |
| Manufacturer Package Code | 463-01 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Collector Current-Max (IC) | 0.2 A | |
| Collector-Emitter Voltage-Max | 40 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 30 | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 0.3 W | |
| Reference Standard | AEC-Q101 | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | AMPLIFIER | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 300 MHz | |
| Turn-off Time-Max (toff) | 250 ns | |
| Turn-on Time-Max (ton) | 70 ns |
SMMBT3904TT1G Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the SMMBT3904TT1G is -55°C to 150°C.
-
To ensure stability, it's recommended to use a decoupling capacitor (e.g., 100nF) between the base and emitter, and to minimize the lead length and inductance of the base connection.
-
For optimal thermal performance, it's recommended to use a thermal pad under the transistor, and to keep the copper area as large as possible to dissipate heat. A minimum of 2 oz copper thickness is recommended.
-
Yes, the SMMBT3904TT1G can be used in switching applications, but it's essential to ensure that the transistor is operated within its safe operating area (SOA) to prevent damage. A suitable snubber circuit may be required to reduce voltage spikes.
-
To prevent electrostatic discharge (ESD) damage, it's recommended to use ESD protection devices, such as TVS diodes or ESD protection arrays, in conjunction with proper PCB design and handling practices.
