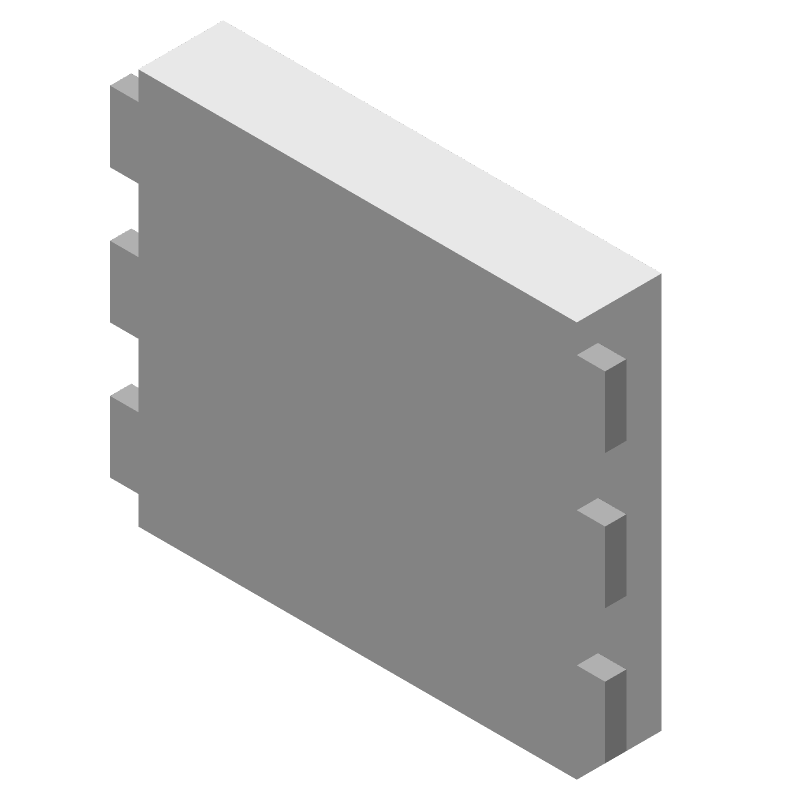

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SMLVN6RGB1W1 by ROHM Semiconductor
Results Overview of SMLVN6RGB1W1 by ROHM Semiconductor
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Renewable Energy
SMLVN6RGB1W1 Information
SMLVN6RGB1W1 by ROHM Semiconductor is a Visible LED.
Visible LEDs are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for SMLVN6RGB1W1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
70AH6577
|
Newark | Led, Red/Grn/Blu, 700Mcd/1.2Cd/400Mcd Rohs Compliant: Yes |Rohm SMLVN6RGB1W1 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1314 |
|
$0.6090 / $1.7100 | Buy Now |
|
DISTI #
846-1187-1-ND
|
DigiKey | LED RGB DIFFUSED 1411 SMD Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
63254 In Stock |
|
$0.5843 / $1.5600 | Buy Now |
|
DISTI #
755-SMLVN6RGB1W1
|
Mouser Electronics | Multi-Color LEDs HIGH BRIGHTNESS TRI-COLOR LED RoHS: Compliant | 9130 |
|
$0.5680 / $1.5600 | Buy Now |
|
DISTI #
88077909
|
Verical | LED Tri-Color Blue/Green/Red 6-Pin Chip 1411(3528Metric) T/R RoHS: Compliant Min Qty: 86 Package Multiple: 1 Date Code: 2452 | Americas - 814 |
|
$0.6870 / $0.9020 | Buy Now |
|
DISTI #
83671219
|
Verical | LED Tri-Color Blue/Green/Red 6-Pin Chip 1411(3528Metric) T/R RoHS: Compliant Min Qty: 95 Package Multiple: 1 Date Code: 2401 | Americas - 140 |
|
$0.7860 / $0.8977 | Buy Now |
|
DISTI #
SMLVN6RGB1W1
|
TTI | Multi-Color LEDs HIGH BRIGHTNESS TRI-COLOR LED RoHS: Compliant pbFree: Pb-Free Min Qty: 1000 Package Multiple: 1000 Container: Reel |
Americas - 14000 In Stock |
|
$0.6800 / $0.7360 | Buy Now |
|
DISTI #
SMLVN6RGB1W1
|
TME | LED, SMD, 1411,PLCC6, RGB, 3.5x2.8x0.6mm, 20mA, Variant: tricolour Min Qty: 1 | 0 |
|
$0.4815 / $1.4055 | RFQ |
|
DISTI #
SMLVN6RGB1W1
|
Avnet Asia | LED, Red, Green, Blue, SMD, Rectangular, R 20mA, G 20mA, B 20mA (Alt: SMLVN6RGB1W1) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 24 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
SMLVN6RGB1W1
|
Avnet Silica | LED Red Green Blue SMD Rectangular R 20mA G 20mA B 20mA (Alt: SMLVN6RGB1W1) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
SMLVN6RGB1W1
|
Chip One Stop | Opto-electronics RoHS: Compliant Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 814 |
|
$0.4880 / $1.4900 | Buy Now |
Part Details for SMLVN6RGB1W1
SMLVN6RGB1W1 CAD Models
SMLVN6RGB1W1 Part Data Attributes
|
|
SMLVN6RGB1W1
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
SMLVN6RGB1W1
ROHM Semiconductor
Triple Color LED, Red/green/blue, Milky White, ROHS COMPLIANT, 1411, 6 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.40.20.00 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Color | ULTRA HI-BRT RED/ULTRA HI-BRT GREEN/ULTRA HI-BRT BLUE | |
| Configuration | COMPLEX | |
| Forward Current-Max | 0.04 A | |
| Forward Voltage-Max | 2.5 V | |
| JESD-609 Code | e4 | |
| Luminous Intensity-Nom | 700.0/1200.0/400.0 mcd | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | TRIPLE COLOR LED | |
| Overall Height | 0.6 mm | |
| Packing Method | TR, 7 INCH | |
| Reverse Voltage-Max | 5 V | |
| Shape | RECTANGULAR | |
| Surface Mount | YES | |
| Terminal Finish | Gold (Au) - with Nickel (Ni) barrier |
Alternate Parts for SMLVN6RGB1W1
This table gives cross-reference parts and alternative options found for SMLVN6RGB1W1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMLVN6RGB1W1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MSL0104RGBU1 | ROHM Semiconductor | $0.7825 | Triple Color LED, Red/green/blue, Milky White, 5.4mm, ROHS COMPLIANT, 2709, 7 PIN | SMLVN6RGB1W1 vs MSL0104RGBU1 |
SMLVN6RGB1W1 Frequently Asked Questions (FAQ)
-
The recommended storage temperature for SMLVN6RGB1W1 is -30°C to 30°C, with a relative humidity of 60% or less.
-
While the SMLVN6RGB1W1 is not specifically designed for outdoor use, it can be used in outdoor applications if properly sealed and protected from environmental factors such as moisture, UV, and extreme temperatures.
-
The maximum forward current for the SMLVN6RGB1W1 is 30mA. Exceeding this current may reduce the LED's lifespan or cause damage.
-
To prevent ESD damage, handle the SMLVN6RGB1W1 with an anti-static wrist strap or mat, and avoid touching the pins or leads. Store the LEDs in an anti-static bag or container when not in use.
-
The typical voltage drop for the SMLVN6RGB1W1 is around 2.0-2.5V, depending on the color and forward current.
