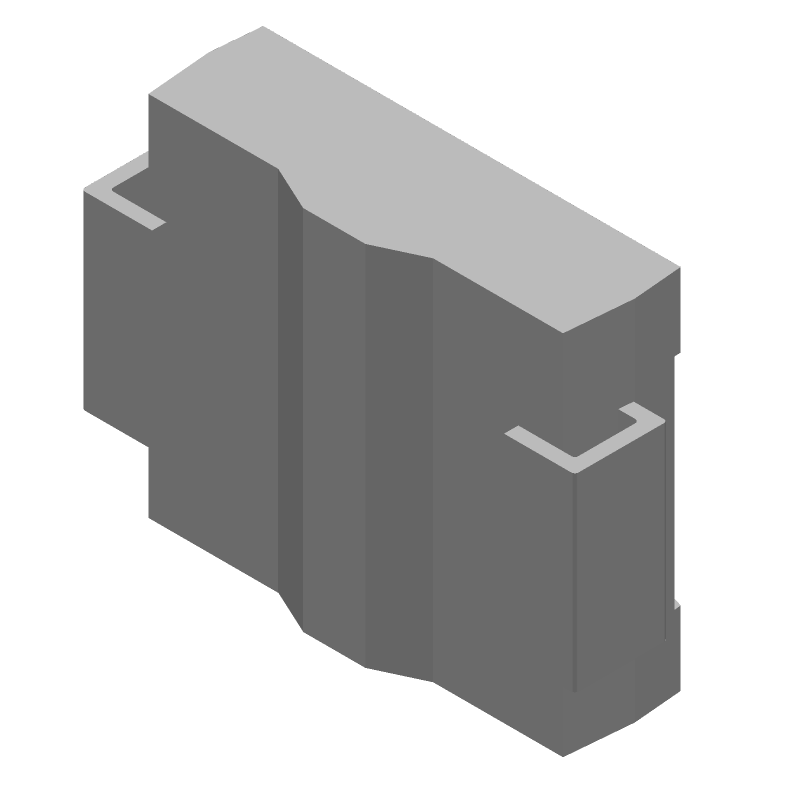

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SMLJ6.0CA by Bourns Inc
Results Overview of SMLJ6.0CA by Bourns Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SMLJ6.0CA Information
SMLJ6.0CA by Bourns Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMLJ6.0CA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
SMLJ6.0CABCT-ND
|
DigiKey | TVS DIODE 6VWM 10.3VC SMC Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) | Temporarily Out of Stock |
|
$0.4586 / $1.1200 | Buy Now |
|
DISTI #
SMLJ6.0CA
|
Avnet Americas | - Tape and Reel (Alt: SMLJ6.0CA) RoHS: Compliant Min Qty: 12000 Package Multiple: 3000 Lead time: 16 Weeks, 0 Days Container: Reel | 0 |
|
$0.3168 / $0.4551 | Buy Now |
|
DISTI #
652-SMLJ6.0CA
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 6volts 1000uA 291.3 Amps Bi-Dir RoHS: Compliant | 7002 |
|
$0.4410 / $1.1700 | Buy Now |
|
|
Onlinecomponents.com | Diode TVS Single Bi-Dir 6V 3KW 2-Pin SMC RoHS: Compliant | 0 |
|
$0.4221 / $1.1560 | Buy Now |
|
DISTI #
SMLJ6.0CA
|
TTI | ESD Protection Diodes / TVS Diodes 6volts 1000uA 291.3 Amps Bi-Dir pbFree: Pb-Free Min Qty: 12000 Package Multiple: 3000 Container: Reel | Americas - 0 |
|
$0.3050 / $0.4760 | Buy Now |
|
DISTI #
SMLJ6.0CA-BOU
|
TME | Diode: TVS, 3kW, 6.67÷7.37V, 291.3A, bidirectional, ±5%, SMC, SMLJ Min Qty: 1 | 0 |
|
$0.3070 / $0.5150 | RFQ |
|
DISTI #
SMLJ6.0CA
|
Avnet Abacus | - Tape and Reel (Alt: SMLJ6.0CA) RoHS: Compliant Min Qty: 12000 Package Multiple: 3000 Lead time: 17 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now | |
|
|
Cytech Systems Limited | TVS DIODE 6VWM 10.3VC SMC | 6000 |
|
RFQ | |
|
|
Master Electronics | Diode TVS Single Bi-Dir 6V 3KW 2-Pin SMC RoHS: Compliant | 0 |
|
$0.4221 / $1.1560 | Buy Now |
Part Details for SMLJ6.0CA
SMLJ6.0CA CAD Models
SMLJ6.0CA Part Data Attributes
|
|
SMLJ6.0CA
Bourns Inc
Buy Now
Datasheet
|
Compare Parts:
SMLJ6.0CA
Bourns Inc
Trans Voltage Suppressor Diode, 3000W, 6V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BOURNS INC | |
| Part Package Code | DO-214AB | |
| Package Description | ROHS COMPLIANT, PLASTIC, SMC, 2 PIN | |
| Pin Count | 2 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | Bourns | |
| Breakdown Voltage-Max | 8.15 V | |
| Breakdown Voltage-Min | 6.67 V | |
| Breakdown Voltage-Nom | 7.41 V | |
| Clamping Voltage-Max | 10.3 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AB | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 3000 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 5 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 6 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for SMLJ6.0CA
This table gives cross-reference parts and alternative options found for SMLJ6.0CA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMLJ6.0CA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 3.0SMCJ6.0C | World Products Inc | Check for Price | Trans Voltage Suppressor Diode, 3000W, 6V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, PLASTIC PACKAGE-2 | SMLJ6.0CA vs 3.0SMCJ6.0C |
| 3.0SMCJ6.0C-T3 | Sangdest Microelectronics (Nanjing) Co Ltd | Check for Price | Trans Voltage Suppressor Diode, 3000W, 6V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, PLASTIC, SMC, 2 PIN | SMLJ6.0CA vs 3.0SMCJ6.0C-T3 |
| SMLJ6.0C-T | Micro Commercial Components | Check for Price | Transient Suppressor, | SMLJ6.0CA vs SMLJ6.0C-T |
| SMLJ6.0CA | International Semiconductor Inc | Check for Price | Trans Voltage Suppressor Diode, 3000W, 6V V(RWM), Bidirectional, 1 Element, Silicon | SMLJ6.0CA vs SMLJ6.0CA |
| SMLJ6.0CE3 | Microsemi Corporation | Check for Price | Trans Voltage Suppressor Diode, 3000W, 6V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC PACKAGE-2 | SMLJ6.0CA vs SMLJ6.0CE3 |
| SMLJ6.0CTRE3 | Microsemi Corporation | Check for Price | Trans Voltage Suppressor Diode, 6V V(RWM), Bidirectional, | SMLJ6.0CA vs SMLJ6.0CTRE3 |
| SMLJ6.0CA | Micro Commercial Components | Check for Price | Trans Voltage Suppressor Diode, 3000W, 6V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, PLASTIC, SMCJ, 2 PIN | SMLJ6.0CA vs SMLJ6.0CA |
| SMLJ6.0CA-T | Micro Commercial Components | Check for Price | Transient Suppressor, | SMLJ6.0CA vs SMLJ6.0CA-T |
| SMLJ6.0C | Microsemi Corporation | Check for Price | Trans Voltage Suppressor Diode, 3000W, 6V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, PLASTIC PACKAGE-2 | SMLJ6.0CA vs SMLJ6.0C |
SMLJ6.0CA Frequently Asked Questions (FAQ)
-
The recommended land pattern for SMLJ6.0CA is a rectangular pad with a size of 2.5 mm x 1.5 mm, with a 0.5 mm radius corner and a 0.3 mm solder mask clearance.
-
Yes, SMLJ6.0CA is rated for operation up to 150°C, but it's recommended to derate the voltage and current ratings accordingly to ensure reliable operation.
-
It's recommended to use ESD protection devices, such as TVS diodes, in conjunction with SMLJ6.0CA to protect against electrostatic discharge.
-
The recommended soldering profile for SMLJ6.0CA is a peak temperature of 260°C, with a dwell time of 10-30 seconds, and a cooling rate of 4°C/second.
-
Yes, SMLJ6.0CA is designed to withstand vibrations up to 10 G, but it's recommended to secure the device properly to the PCB to prevent mechanical stress.
