Diodes / Transient Suppressors / SMLJ5.0CAE3/TR13
Datasheets
SMLJ5.0CAE3/TR13 by:

Trans Voltage Suppressor Diode, 3000W, 5V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB

Part Details for SMLJ5.0CAE3/TR13 by Microchip Technology Inc

Results Overview of SMLJ5.0CAE3/TR13 by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SMLJ5.0CAE3/TR13 Information

SMLJ5.0CAE3/TR13 by Microchip Technology Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for SMLJ5.0CAE3/TR13

Part # Distributor Description Stock Price Buy
DISTI # 34AJ7458
Newark Tvs 3000W, Stand-Off Voltage = 5.0V, +/- 5%, Bi-Dir Smlj (Do-214Ab) Rohs Compliant: Yes |Microchip SMLJ5.0CAE3/TR13 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 500 $1.4700
$1.4700 Buy Now
DISTI # SMLJ5.0CAE3/TR13-ND
DigiKey TVS DIODE 5VWM 9.2VC DO214AB Min Qty: 3000 Lead time: 20 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 3,000 $1.5200
$1.5200 Buy Now
DISTI # SMLJ5.0CAE3/TR13
Avnet Americas - Tape and Reel (Alt: SMLJ5.0CAE3/TR13) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 20 Weeks, 0 Days Container: Reel 0
  • 3,000 $1.4625
  • 6,000 $1.4389
  • 12,000 $1.4156
  • 18,000 $1.3922
  • 24,000 $1.3689
$1.3689 / $1.4625 Buy Now
DISTI # 494-SMLJ5.0CAE3/TR13
Mouser Electronics ESD Protection Diodes / TVS Diodes TVS 3000W, Stand-off voltage = 5.0V, +/- 5%, Bi-dir RoHS: Compliant 0
  • 3,000 $1.5200
$1.5200 Order Now
DISTI # SMLJ5.0CAE3/TR13
Microchip Technology Inc Bi-Directional TVS _ SMLJ (DO-214AB), Projected EOL: 2049-02-02 COO: China ECCN: EAR99 Lead time: 20 Weeks, 0 Days 0

Alternates Available
  • 1 $1.6400
  • 100 $1.5200
  • 500 $1.4700
  • 1,000 $1.3900
$1.3900 / $1.6400 Buy Now
Onlinecomponents.com   RoHS: Compliant 0
  • 750 $3.9800
  • 1,500 $2.1100
  • 2,250 $1.4800
  • 3,000 $1.4500
$1.4500 / $3.9800 Buy Now
NAC TVS RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 0
  • 1 $1.8000
  • 100 $1.6300
  • 500 $1.5000
  • 1,000 $1.4600
$1.4600 / $1.8000 Buy Now
DISTI # SMLJ5.0CAE3/TR13
Avnet Silica (Alt: SMLJ5.0CAE3/TR13) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 22 Weeks, 0 Days Silica - 0
Buy Now
DISTI # SMLJ5.0CAE3/TR13
EBV Elektronik (Alt: SMLJ5.0CAE3/TR13) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 21 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics   RoHS: Compliant 0
  • 750 $3.9800
  • 1,500 $2.1100
  • 2,250 $1.4800
  • 3,000 $1.4500
$1.4500 / $3.9800 Buy Now

Part Details for SMLJ5.0CAE3/TR13

SMLJ5.0CAE3/TR13 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

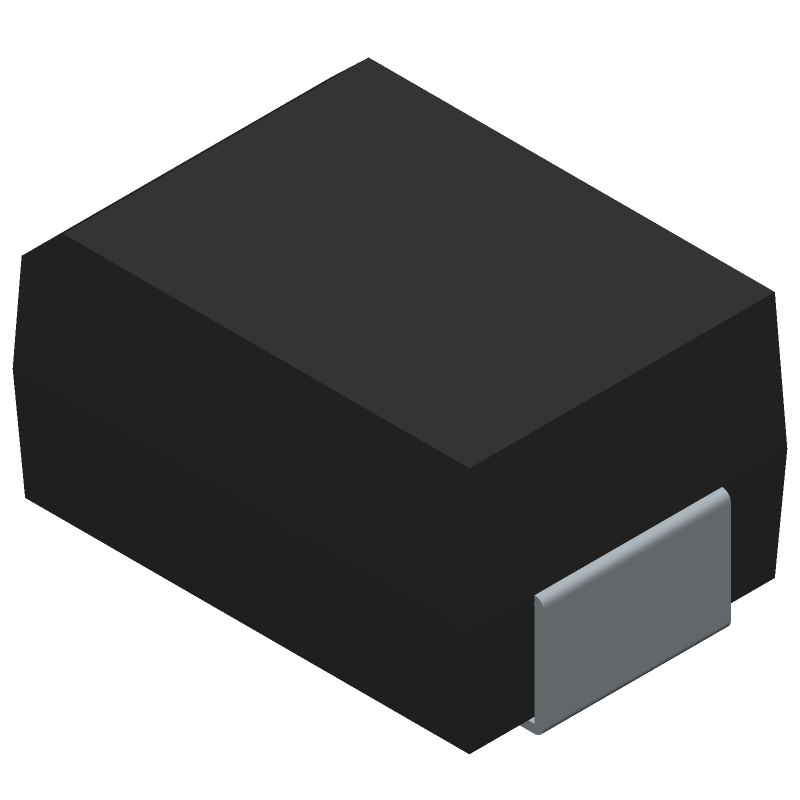

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SMLJ5.0CAE3/TR13 Part Data Attributes

Parametric Data
SMLJ5.0CAE3/TR13 Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
SMLJ5.0CAE3/TR13 Microchip Technology Inc Trans Voltage Suppressor Diode, 3000W, 5V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Package Description ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code compliant
Factory Lead Time 20 Weeks
Samacsys Manufacturer Microchip
Breakdown Voltage-Max 7 V
Breakdown Voltage-Min 6.4 V
Configuration SINGLE
Diode Element Material SILICON
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 Code DO-214AB
JESD-30 Code R-PDSO-C2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 3000 W
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -65 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Polarity BIDIRECTIONAL
Power Dissipation-Max 1.61 W
Rep Pk Reverse Voltage-Max 5 V
Surface Mount YES
Technology AVALANCHE
Terminal Finish MATTE TIN
Terminal Form C BEND
Terminal Position DUAL
