SMLJ14A-TP by: Micro Commercial Components

Trans Voltage Suppressor Diode, 3000W, 14V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN

Part Details for SMLJ14A-TP by Micro Commercial Components

Results Overview of SMLJ14A-TP by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SMLJ14A-TP Information

SMLJ14A-TP by Micro Commercial Components is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for SMLJ14A-TP

Part # Distributor Description Stock Price Buy
DISTI # 353-SMLJ14A-TP-ND
DigiKey TVS DIODE 14VWM 23.2VC DO214AB Min Qty: 3000 Lead time: 18 Weeks Container: Bulk Temporarily Out of Stock
  • 3,000 $0.3923
$0.3923 Buy Now
DISTI # 833-SMLJ14A-TP
Mouser Electronics ESD Protection Diodes / TVS Diodes 3000W TRANSIENT VOLTAGE SUPPRESSOR RoHS: Compliant 0
  • 3,000 $0.4800
$0.4800 Order Now

Part Details for SMLJ14A-TP

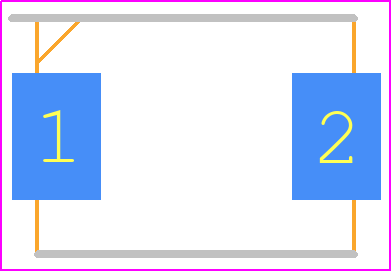

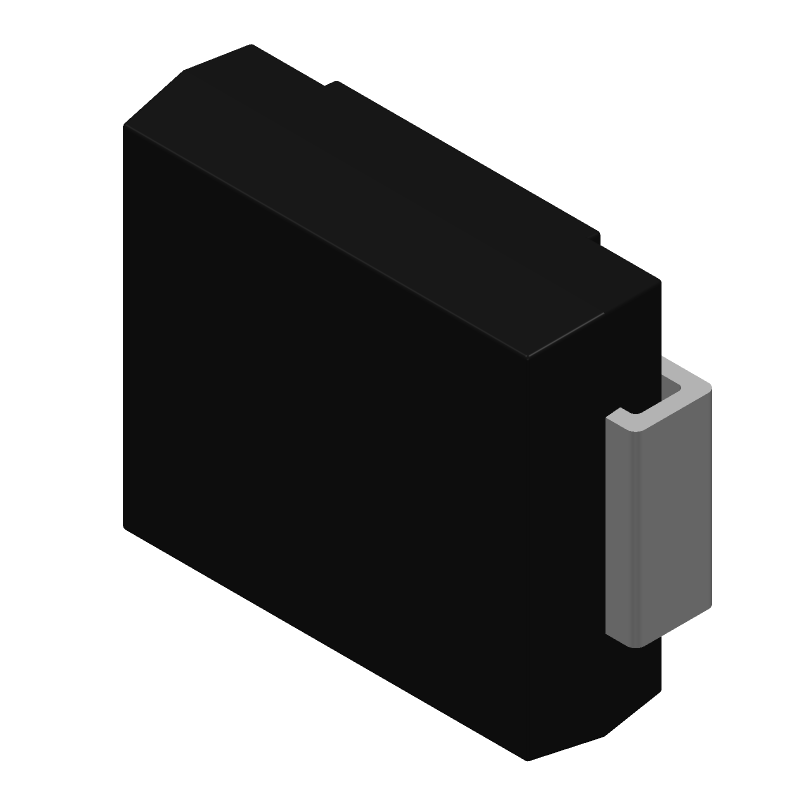

SMLJ14A-TP CAD Models

SMLJ14A-TP Part Data Attributes

SMLJ14A-TP Micro Commercial Components
Buy Now Datasheet
Compare Parts:
SMLJ14A-TP Micro Commercial Components Trans Voltage Suppressor Diode, 3000W, 14V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP
Part Package Code DO-214AB
Package Description R-PDSO-C2
Pin Count 2
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Samacsys Manufacturer MCC
Additional Feature EXCELLENT CLAMPING CAPABILITY, PD-MIN
Breakdown Voltage-Max 18.04 V
Breakdown Voltage-Min 14.76 V
Breakdown Voltage-Nom 16.4 V
Clamping Voltage-Max 23.2 V
Configuration SINGLE
Diode Element Material SILICON
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 Code DO-214AB
JESD-30 Code R-PDSO-C2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 3000 W
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 175 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Qualification Status Not Qualified
Reference Standard UL RECOGNIZED
Rep Pk Reverse Voltage-Max 14 V
Surface Mount YES
Technology AVALANCHE
Terminal Finish MATTE TIN
Terminal Form C BEND
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 10

Alternate Parts for SMLJ14A-TP

This table gives cross-reference parts and alternative options found for SMLJ14A-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMLJ14A-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
SMLJ14-TP-HF Micro Commercial Components Check for Price Trans Voltage Suppressor Diode, 3000W, 14V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN SMLJ14A-TP vs SMLJ14-TP-HF
SMLJ14AE3/TR Microsemi Corporation Check for Price Trans Voltage Suppressor Diode, 3000W, 14V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, PLASTIC PACKAGE-2 SMLJ14A-TP vs SMLJ14AE3/TR
SMLJ14ATRE3 Microsemi Corporation Check for Price Trans Voltage Suppressor Diode, 14V V(RWM), Unidirectional, SMLJ14A-TP vs SMLJ14ATRE3
3.0SMCJ14-G Sangdest Microelectronics (Nanjing) Co Ltd Check for Price Trans Voltage Suppressor Diode, 3000W, 14V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, LEAD FREE, PLASTIC, SMC, 2 PIN SMLJ14A-TP vs 3.0SMCJ14-G
3.0SMCJ14 World Products Inc Check for Price Trans Voltage Suppressor Diode, 3000W, 14V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, PLASTIC PACKAGE-2 SMLJ14A-TP vs 3.0SMCJ14
3SMC14A Central Semiconductor Corp Check for Price Trans Voltage Suppressor Diode, 3000W, 14V V(RWM), Unidirectional, 1 Element, Silicon, SMC, 2 PIN SMLJ14A-TP vs 3SMC14A
Part Number Manufacturer Composite Price Description Compare
3.0SMCJ14 Sangdest Microelectronics (Nanjing) Co Ltd Check for Price Trans Voltage Suppressor Diode, 3000W, 14V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN SMLJ14A-TP vs 3.0SMCJ14
SMLJ14E3TR Microsemi Corporation Check for Price Trans Voltage Suppressor Diode, 3000W, 14V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, PLASTIC PACKAGE-2 SMLJ14A-TP vs SMLJ14E3TR
SMLJ14A International Semiconductor Inc Check for Price Trans Voltage Suppressor Diode, 3000W, 14V V(RWM), Unidirectional, 1 Element, Silicon SMLJ14A-TP vs SMLJ14A
3.0SMCJ14-GT3 Sangdest Microelectronics (Nanjing) Co Ltd Check for Price Trans Voltage Suppressor Diode, 3000W, 14V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, LEAD FREE, PLASTIC, SMC, 2 PIN SMLJ14A-TP vs 3.0SMCJ14-GT3
SMLJ14A MDE Semiconductor Inc Check for Price Trans Voltage Suppressor Diode, 3000W, 14V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC PACKAGE-2 SMLJ14A-TP vs SMLJ14A
3.0SMCJ14 Surge Components Inc Check for Price Trans Voltage Suppressor Diode, Unidirectional, 1 Element, Silicon, DO-214AB, SMLJ14A-TP vs 3.0SMCJ14
SMLJ14AE3 Microsemi Corporation Check for Price Trans Voltage Suppressor Diode, 3000W, 14V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC PACKAGE-2 SMLJ14A-TP vs SMLJ14AE3
3.0SMCJ14A-GT3 Sangdest Microelectronics (Nanjing) Co Ltd Check for Price Trans Voltage Suppressor Diode, 3000W, 14V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, LEAD FREE, PLASTIC, SMC, 2 PIN SMLJ14A-TP vs 3.0SMCJ14A-GT3
3.0SMCJ14 Sensitron Semiconductors Check for Price Trans Voltage Suppressor Diode, 3000W, 14V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, PLASTIC, SMC, 2 PIN SMLJ14A-TP vs 3.0SMCJ14
SMLJ14A Micro Commercial Components Check for Price Trans Voltage Suppressor Diode, 3000W, 14V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, PLASTIC, SMCJ, 2 PIN SMLJ14A-TP vs SMLJ14A
