Diodes / Transient Suppressors / SMLJ130A
Datasheets
SMLJ130A by:

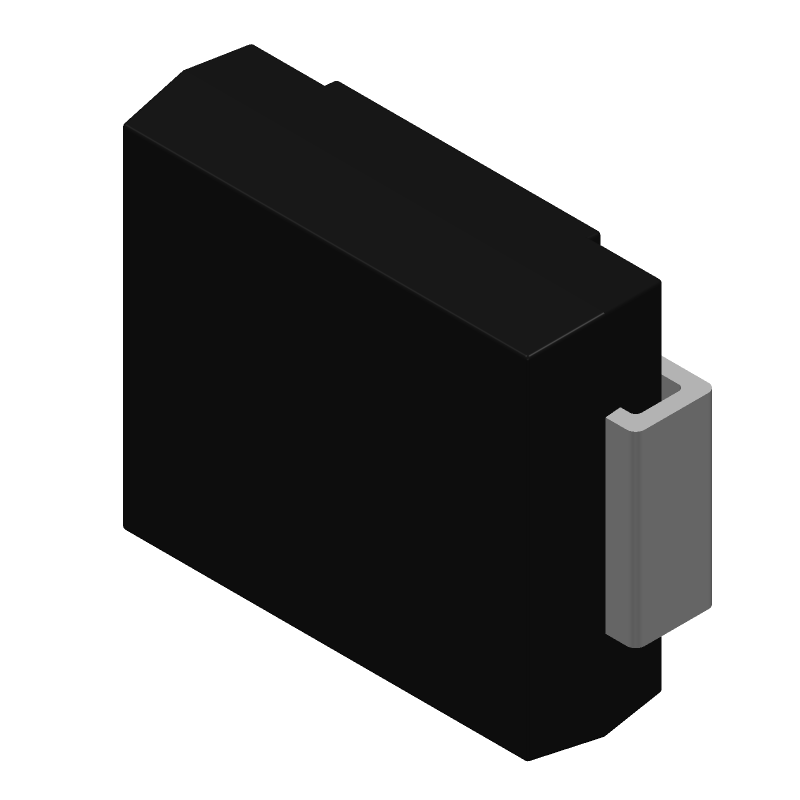

Trans Voltage Suppressor Diode, 3000W, 130V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, PLASTIC, SMCJ, 2 PIN

Part Details for SMLJ130A by Micro Commercial Components

Results Overview of SMLJ130A by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SMLJ130A Information

SMLJ130A by Micro Commercial Components is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Part Details for SMLJ130A

SMLJ130A Part Data Attributes

Parametric Data
SMLJ130A Micro Commercial Components
Buy Now Datasheet
Compare Parts:
SMLJ130A Micro Commercial Components Trans Voltage Suppressor Diode, 3000W, 130V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, PLASTIC, SMCJ, 2 PIN
Rohs Code No
Part Life Cycle Code Active
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP
Part Package Code DO-214AB
Package Description PLASTIC, SMCJ, 2 PIN
Pin Count 2
Reach Compliance Code unknown
ECCN Code EAR99
HTS Code 8541.10.00.50
Samacsys Manufacturer MCC
Additional Feature LOW INDUCTANCE
Breakdown Voltage-Max 159 V
Breakdown Voltage-Min 144 V
Breakdown Voltage-Nom 151.5 V
Clamping Voltage-Max 209 V
Configuration SINGLE
Diode Element Material SILICON
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 Code DO-214AB
JESD-30 Code R-PDSO-C2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 3000 W
Number of Elements 1
Number of Terminals 2
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Qualification Status Not Qualified
Reference Standard UL RECOGNIZED
Rep Pk Reverse Voltage-Max 130 V
Surface Mount YES
Technology AVALANCHE
Terminal Finish Tin (Sn)
Terminal Form C BEND
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 3

Alternate Parts for SMLJ130A

This table gives cross-reference parts and alternative options found for SMLJ130A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMLJ130A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
SMLJ130A Bourns Inc $0.4409 Trans Voltage Suppressor Diode, 3000W, 130V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN SMLJ130A vs SMLJ130A
3.0SMCJ130A-GT3 Sangdest Microelectronics (Nanjing) Co Ltd Check for Price Trans Voltage Suppressor Diode, 3000W, 130V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, LEAD FREE, PLASTIC, SMC, 2 PIN SMLJ130A vs 3.0SMCJ130A-GT3
SMLJ130A MDE Semiconductor Inc Check for Price Trans Voltage Suppressor Diode, 3000W, 130V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC PACKAGE-2 SMLJ130A vs SMLJ130A
SMLJ130ATRE3 Microsemi Corporation Check for Price Trans Voltage Suppressor Diode, 130V V(RWM), Unidirectional, SMLJ130A vs SMLJ130ATRE3
Part Number Manufacturer Composite Price Description Compare
SMLJ130A Microsemi Corporation Check for Price Trans Voltage Suppressor Diode, 3000W, 130V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, PLASTIC PACKAGE-2 SMLJ130A vs SMLJ130A
CD214L-T130ALF Bourns Inc Check for Price Trans Voltage Suppressor Diode, 130V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN SMLJ130A vs CD214L-T130ALF
3SMC130A Central Semiconductor Corp Check for Price Trans Voltage Suppressor Diode, 3000W, 130V V(RWM), Unidirectional, 1 Element, Silicon, SMC, 2 PIN SMLJ130A vs 3SMC130A
3.0SMCJ130A Sensitron Semiconductors Check for Price Trans Voltage Suppressor Diode, 3000W, 130V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, PLASTIC, SMC, 2 PIN SMLJ130A vs 3.0SMCJ130A
3.0SMCJ130A-T3 Sangdest Microelectronics (Nanjing) Co Ltd Check for Price Trans Voltage Suppressor Diode, 3000W, 130V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, PLASTIC, SMC, 2 PIN SMLJ130A vs 3.0SMCJ130A-T3
3.0SMCJ130A Sangdest Microelectronics (Nanjing) Co Ltd Check for Price Trans Voltage Suppressor Diode, 3000W, 130V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN SMLJ130A vs 3.0SMCJ130A
3.0SMCJ130A World Products Inc Check for Price Trans Voltage Suppressor Diode, 3000W, 130V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, PLASTIC PACKAGE-2 SMLJ130A vs 3.0SMCJ130A
SMLJ130ATR Microsemi Corporation Check for Price Trans Voltage Suppressor Diode, 3000W, 130V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, PLASTIC PACKAGE-2 SMLJ130A vs SMLJ130ATR
SMDJ130A ProTek Devices Check for Price Trans Voltage Suppressor Diode, 3000W, 130V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB SMLJ130A vs SMDJ130A
3.0SMCJ130A Surge Components Inc Check for Price Trans Voltage Suppressor Diode, Unidirectional, 1 Element, Silicon, DO-214AB, SMLJ130A vs 3.0SMCJ130A
