Diodes / Zener Diodes / SML4741A-E3/61
Datasheets
SML4741A-E3/61 by:

Zener Diode, 11V V(Z), 5%, 1W, Silicon, Unidirectional, DO-214AC,

Part Details for SML4741A-E3/61 by Vishay Intertechnologies

Results Overview of SML4741A-E3/61 by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

SML4741A-E3/61 Information

SML4741A-E3/61 by Vishay Intertechnologies is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for SML4741A-E3/61

Part # Distributor Description Stock Price Buy
DISTI # 84AC2768
Newark 1.5Kw,33V 5%,bidir, smc Tvs Rohs Compliant: Yes |Vishay SML4741A-E3/61 RoHS: Compliant Min Qty: 1800 Package Multiple: 1 Date Code: 0 Container: Reel 28800
  • 1 $0.1940
  • 5,000 $0.1900
  • 10,000 $0.1750
  • 20,000 $0.1630
  • 30,000 $0.1520
  • 50,000 $0.1460
$0.1460 / $0.1940 Buy Now
DISTI # 20M0177
Newark Diode, Zener, 1W, 11V, Do-214Ac-2, Full Reel, Zener Voltage Nom:11V, Power Dissipation:1W, Diode Case Style:Do-214Ac (Sma), No. Of Pins:2Pins, Operating Temperature Max:150°C, Diode Mounting:Surface Mount, Product Range:- Rohs Compliant: Yes |Vishay SML4741A-E3/61 RoHS: Compliant Min Qty: 1800 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.2190
  • 5,000 $0.2150
  • 10,000 $0.2000
  • 20,000 $0.1880
  • 30,000 $0.1770
  • 50,000 $0.1710
$0.1710 / $0.2190 Buy Now
DISTI # 05W6975
Newark Diode, Zener, 1W, 11V, Do-214Ac-2, Zener Voltage Nom:11V, Power Dissipation:1W, Diode Case Style:Do-214Ac (Sma), No. Of Pins:2Pins, Operating Temperature Max:150°C, Product Range:-, Msl:Msl 1 - Unlimited Rohs Compliant: Yes |Vishay SML4741A-E3/61 RoHS: Compliant Min Qty: 1800 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 1,000 $0.2240
$0.2240 Buy Now
DISTI # SML4741A-E3/61
Avnet Americas Zener Single Diode, 11 V, 1 W, DO-214AC (SMA), 2 Pins, 150 ?C, Surface Mount - Tape and Reel (Alt: SML4741A-E3/61) RoHS: Compliant Min Qty: 1800 Package Multiple: 1800 Lead time: 7 Weeks, 0 Days Container: Reel 28800
  • 1,800 $0.1186
  • 3,600 $0.1180
  • 7,200 $0.1174
  • 10,800 $0.1168
  • 14,400 $0.1162
$0.1162 / $0.1186 Buy Now
DISTI # 78-SML4741A-E3
Mouser Electronics Zener Diodes 11 Volt 1.0W 5% RoHS: Compliant 35267
  • 1 $0.3400
  • 10 $0.2750
  • 100 $0.2230
  • 500 $0.2030
  • 1,000 $0.1380
  • 1,800 $0.1370
$0.1370 / $0.3400 Buy Now
DISTI # SML4741A-E3/61
TTI Zener Diodes 11 Volt 1.0W 5% pbFree: Pb-Free Min Qty: 1800 Package Multiple: 1800 Container: Reel Americas - 3600
In Stock
  • 1,800 $0.1420
  • 3,600 $0.1400
  • 7,200 $0.1370
  • 10,800 $0.1340
$0.1340 / $0.1420 Buy Now
DISTI # SML4741A-E3/61
TME Diode: Zener, 1W, 11V, SMD, reel,tape, SMA, single diode, 5uA Min Qty: 5 0
  • 5 $0.2010
  • 25 $0.1800
  • 100 $0.1600
  • 500 $0.1440
  • 1,800 $0.1340
$0.1340 / $0.2010 RFQ
DISTI # SML4741A-E3/61
IBS Electronics SML4741A SERIES 11 V 5 &#xB5, A 1 W SURFACE MOUNT ZENER DIODE - DO-214AC (SMA) Min Qty: 1800 Package Multiple: 1 0
  • 1,800 $0.1703
  • 3,600 $0.1690
  • 5,400 $0.1677
  • 7,200 $0.1664
  • 9,000 $0.1638
$0.1638 / $0.1703 Buy Now
DISTI # SMC-SML4741A-E3/61
Sensible Micro Corporation OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 3374
RFQ
DISTI # SML4741A-E3/61
EBV Elektronik Zener Single Diode 11 V 1 W DO214AC SMA 2 Pins 150 C Surface Mount (Alt: SML4741A-E3/61) RoHS: Compliant Min Qty: 1800 Package Multiple: 1800 Lead time: 8 Weeks, 0 Days EBV - 0
Buy Now
Vyrian Diodes 18308
RFQ

Part Details for SML4741A-E3/61

SML4741A-E3/61 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

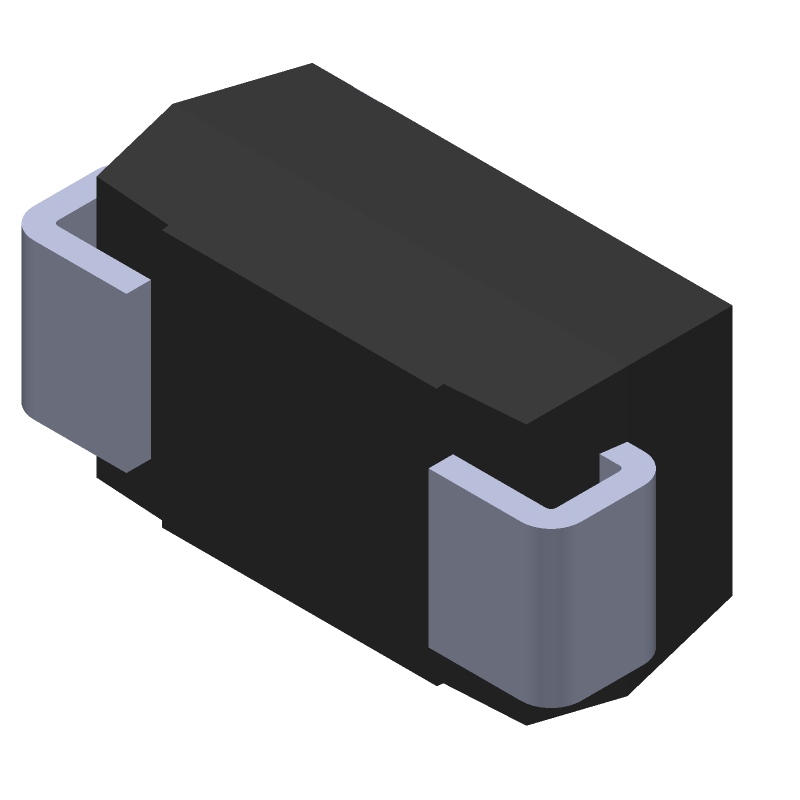

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SML4741A-E3/61 Part Data Attributes

Parametric Data
SML4741A-E3/61 Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
SML4741A-E3/61 Vishay Intertechnologies Zener Diode, 11V V(Z), 5%, 1W, Silicon, Unidirectional, DO-214AC,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Reach Compliance Code not_compliant
Factory Lead Time 7 Weeks
Samacsys Manufacturer Vishay
Additional Feature LOW IMPEDANCE
Configuration SINGLE
Diode Element Material SILICON
Diode Type ZENER DIODE
Dynamic Impedance-Max 8 Ω
JEDEC-95 Code DO-214AC
JESD-30 Code R-PDSO-C2
JESD-609 Code e3
Moisture Sensitivity Level 1
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Power Dissipation-Max 1 W
Qualification Status Not Qualified
Reference Voltage-Nom 11 V
Surface Mount YES
Technology ZENER
Terminal Finish MATTE TIN
Terminal Form C BEND
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Voltage Tol-Max 5%
Working Test Current 23 mA

Alternate Parts for SML4741A-E3/61

This table gives cross-reference parts and alternative options found for SML4741A-E3/61. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SML4741A-E3/61, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
SML4741A Vishay Intertechnologies Check for Price Zener Diode, 11V V(Z), 5%, 1W, Silicon, Unidirectional, DO-214AC, PLASTIC PACKAGE-2 SML4741A-E3/61 vs SML4741A
SML4741A-E3/5A Vishay Semiconductors Check for Price ZENER SGL 11V 5% 1W 2PIN SMA - Tape and Reel SML4741A-E3/61 vs SML4741A-E3/5A
SML4741A-E3/5A Vishay Intertechnologies Check for Price Zener Diode, 11V V(Z), 5%, 1W, Silicon, Unidirectional, DO-214AC, SML4741A-E3/61 vs SML4741A-E3/5A
1SMA4741-T3 Won-Top Electronics Co Ltd Check for Price Zener Diode, 11V V(Z), 5%, 1W SML4741A-E3/61 vs 1SMA4741-T3
FM4741WA Rectron Semiconductor Check for Price Zener Diode, 11V V(Z), 10%, 1W, Silicon, Unidirectional, DO-214AC, ROHS COMPLIANT, PLASTIC PACKAGE-2 SML4741A-E3/61 vs FM4741WA
1SMA4741T/R13 PanJit Semiconductor Check for Price Zener Diode, 11V V(Z), 5%, 1W, Silicon, Unidirectional, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN SML4741A-E3/61 vs 1SMA4741T/R13
SMAJ4741AP Micro Commercial Components Check for Price DIODE 11 V, 1 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-214AC, PLASTIC, SMAJ, 2 PIN, Voltage Regulator Diode SML4741A-E3/61 vs SMAJ4741AP
SMAJ4741A Micro Commercial Components Check for Price Zener Diode, 11V V(Z), 5%, 1W, Silicon, Unidirectional, DO-214AC, PLASTIC, SMAJ, 2 PIN SML4741A-E3/61 vs SMAJ4741A
SMAJ4741A-T Micro Commercial Components Check for Price Zener Diode, SML4741A-E3/61 vs SMAJ4741A-T
1SMA4741-GT3 Sangdest Microelectronics (Nanjing) Co Ltd Check for Price Zener Diode, 11V V(Z), 5%, 1W, Silicon, Unidirectional, DO-214AC, PLASTIC, SMA, 2 PIN SML4741A-E3/61 vs 1SMA4741-GT3
Part Number Manufacturer Composite Price Description Compare
CDLL4466 Microchip Technology Inc $11.7102 Zener Diode, 11V V(Z), 5%, 1.5W, Silicon, Unidirectional, DO-213AB SML4741A-E3/61 vs CDLL4466
MSP1N3023CUR-1E3 Microsemi Corporation Check for Price Zener Diode, 13V V(Z), 2%, 1.25W, Silicon, Unidirectional, DO-213AB, ROHS COMPLIANT, HERMETIC SEALED, LEADLESS, GLASS, MELF-2 SML4741A-E3/61 vs MSP1N3023CUR-1E3
1N4983 Microsemi Corporation Check for Price Zener Diode, 110V V(Z), 5%, 0.5W, Silicon, Unidirectional, HERMETIC SEALED, PLASTIC, E PACKAGE-2 SML4741A-E3/61 vs 1N4983
JANS1N4468US Semtech Corporation Check for Price Zener Diode, 13V V(Z), 5%, 1.5W, Silicon, Unidirectional, HERMETIC SEALED PACKAGE-2 SML4741A-E3/61 vs JANS1N4468US
MSP1N4741CGTR Microsemi Corporation Check for Price Zener Diode, 11V V(Z), 2%, 1W, Silicon, Unidirectional, DO-204AL, HERMETIC SEALED, GLASS, DO-41, 2 PIN SML4741A-E3/61 vs MSP1N4741CGTR
1N3023B-1E3 Microsemi Corporation Check for Price Zener Diode, 13V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41, HERMETIC SEALED, GLASS PACKAGE-1 SML4741A-E3/61 vs 1N3023B-1E3
JANTXV1N3021D-1 Compensated Devices Inc Check for Price Zener Diode, 11V V(Z), 1%, 1W, Silicon, Unidirectional, DO-41, DO-41, 2 PIN SML4741A-E3/61 vs JANTXV1N3021D-1
1SMA5928_R1_10001 PanJit Semiconductor Check for Price Zener Diode SML4741A-E3/61 vs 1SMA5928_R1_10001
MQ1N4743GTR Microsemi Corporation Check for Price Zener Diode, 13V V(Z), 10%, 1W, Silicon, Unidirectional, DO-204AL, HERMETIC SEALED, GLASS, DO-204AL, 2 PIN SML4741A-E3/61 vs MQ1N4743GTR
MV1N3021CUR-1 Microsemi Corporation Check for Price Zener Diode, 11V V(Z), 2%, 1.25W, Silicon, Unidirectional, DO-213AB, HERMETIC SEALED, LEADLESS, GLASS, MELF-2 SML4741A-E3/61 vs MV1N3021CUR-1

SML4741A-E3/61 Related Parts

SML4741A-E3/61 Frequently Asked Questions (FAQ)

  • The recommended storage condition for SML4741A-E3/61 is in a dry, cool place, away from direct sunlight, with a temperature range of -40°C to 100°C and humidity below 60%.

  • Yes, the SML4741A-E3/61 is suitable for high-reliability applications due to its high-quality materials, robust design, and rigorous testing procedures.

  • Handle the SML4741A-E3/61 by the body, avoiding touching the leads or electrical contacts to prevent damage from electrostatic discharge (ESD) or contamination.

  • The recommended soldering profile for the SML4741A-E3/61 is a peak temperature of 260°C for 10 seconds, with a preheat temperature of 150°C to 180°C.

  • Yes, the SML4741A-E3/61 is AEC-Q101 qualified, making it suitable for use in automotive applications.
