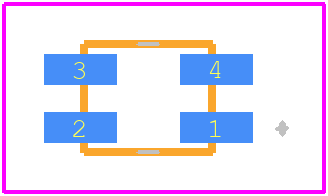

Footprint
-

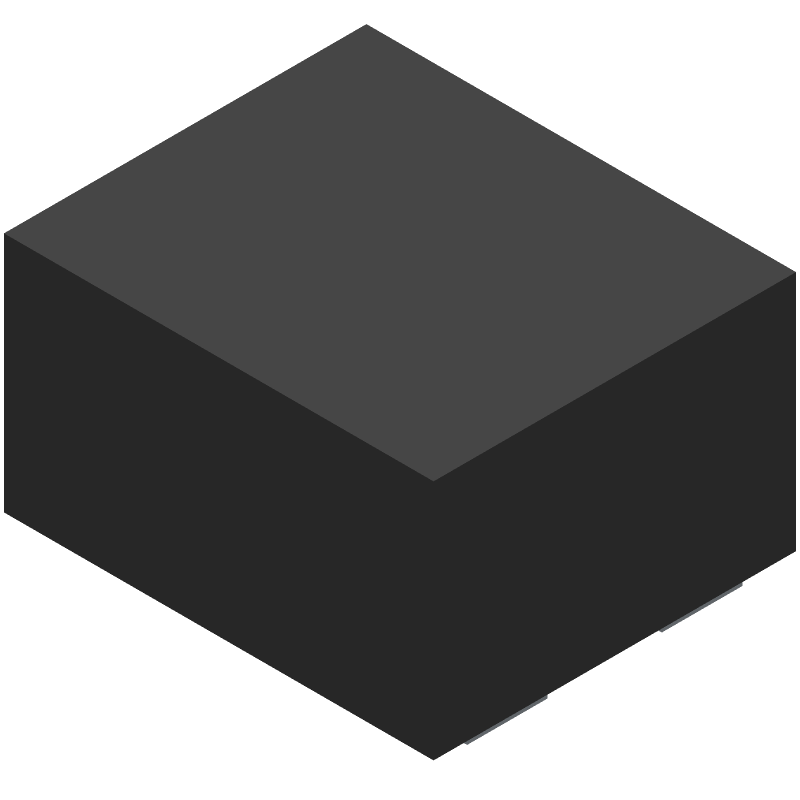

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SML-LX2835SISUGUBC by ITW Lumex
Results Overview of SML-LX2835SISUGUBC by ITW Lumex
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Renewable Energy
Entertainment and Gaming
SML-LX2835SISUGUBC Information
SML-LX2835SISUGUBC by ITW Lumex is a Visible LED.
Visible LEDs are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for SML-LX2835SISUGUBC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
78T0684
|
Newark | 2.8X3.5Mm Smt Led, Red/ Grn/Blu, Clr Lns, T&r |Lumex SML-LX2835SISUGUBC RoHS: Not Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.3510 / $0.4490 | Buy Now |
|
DISTI #
SML-LX2835SISUGUBC-ND
|
DigiKey | LED RED/GREEN/BLUE SMD Min Qty: 2000 Lead time: 16 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.3463 / $0.3627 | Buy Now |
|
DISTI #
696-LX2835SISUGUBC
|
Mouser Electronics | Multi-Color LEDs 2.8x3.2mm LED w/ Ref 632nm/575nm/468nm RoHS: Compliant | 0 |
|
$0.3600 / $0.3990 | Order Now |
|
DISTI #
71495027
|
RS | 2.8x3.5mm SMT LED, RED/ GRN/BLU, CLR LNS, T&R Min Qty: 2000 Package Multiple: 1 Container: Bulk | 0 |
|
$0.4570 / $0.4710 | RFQ |
|
|
Onlinecomponents.com | LED Tri-Color Blue/Green/Red 468nm/575nm/632nm 4-Pin T/R RoHS: Compliant | 0 |
|
$0.2756 / $0.3857 | Buy Now |
Part Details for SML-LX2835SISUGUBC
SML-LX2835SISUGUBC CAD Models
SML-LX2835SISUGUBC Part Data Attributes
|
|
SML-LX2835SISUGUBC
ITW Lumex
Buy Now
Datasheet
|
Compare Parts:
SML-LX2835SISUGUBC
ITW Lumex
Triple Color LED, Red/green/blue, Water Clear, 2.64mm, 3.20 X 2.70 MM, LEAD FREE, PLASTIC PACKAGE-4
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LUMEX INC | |
| Package Description | 3.20 X 2.70 MM, LEAD FREE, PLASTIC PACKAGE-4 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.40.20.00 | |
| Samacsys Manufacturer | Lumex | |
| Color | RED/GREEN/BLUE | |
| Configuration | COMMON ANODE, 3 ELEMENTS | |
| Forward Current-Max | 0.025 A | |
| Lens Type | WATER CLEAR | |
| Luminous Intensity-Nom | 126.0/50.0/157.5 mcd | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | TRIPLE COLOR LED | |
| Overall Height | 1.8 mm | |
| Packing Method | TR | |
| Peak Wavelength | 632/575/468 nm | |
| Shape | RECTANGULAR | |
| Size | 2.64 mm | |
| Surface Mount | YES | |
| Terminal Pitch | 3.4 mm | |
| Viewing Angle | 120 deg |
