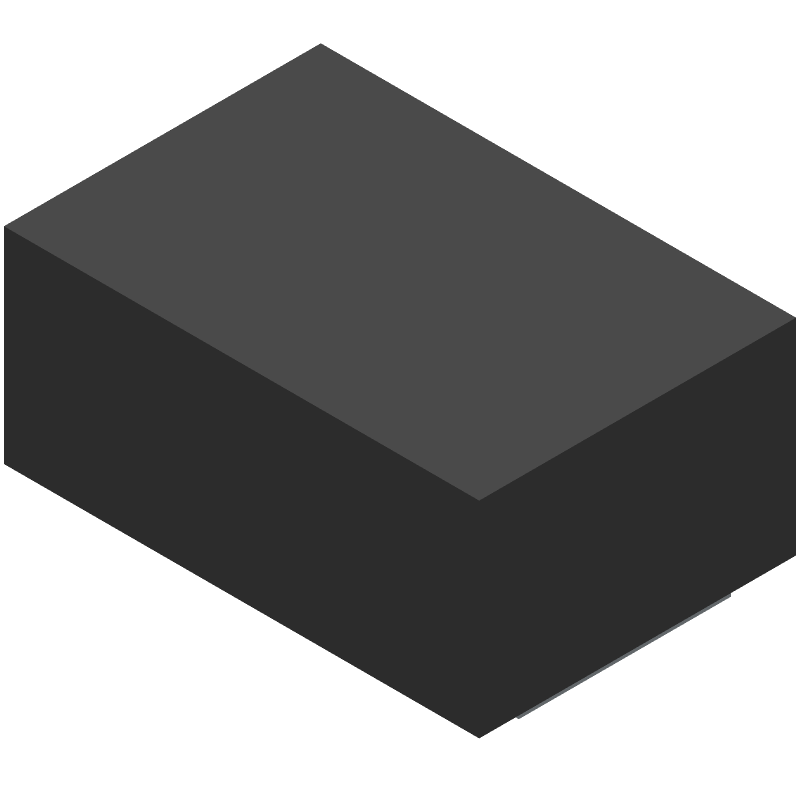

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SML-LX23SUGC-TR by ITW Lumex
Results Overview of SML-LX23SUGC-TR by ITW Lumex
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Renewable Energy
SML-LX23SUGC-TR Information
SML-LX23SUGC-TR by ITW Lumex is a Visible LED.
Visible LEDs are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for SML-LX23SUGC-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
21J7170
|
Newark | Led, Green, 1.4Mm X 2Mm, 80Mcd, 574Nm, Led Color:Green, Led Mounting:Smd, Bulb Size:1.4Mm X 2Mm, Forward Current If:20Ma, Forward Voltage:2.2V, Wavelength Typ:574Nm, Luminous Intensity:80Mcd, Viewing Angle:90°, Lens Shape:Rectangularrohs Compliant: Yes |Lumex SML-LX23SUGC-TR RoHS: Compliant Min Qty: 20000 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.4030 | Buy Now |
|
DISTI #
67-1724-1-ND
|
DigiKey | LED GREEN CLEAR SMD Min Qty: 1 Lead time: 14 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
12594 In Stock |
|
$0.3701 / $1.0900 | Buy Now |
|
DISTI #
696-SML-LX23SUGC
|
Mouser Electronics | Single Color LEDs 2mm x 3mm Green RoHS: Compliant | 18747 |
|
$0.3310 / $0.7200 | Buy Now |
|
DISTI #
70127307
|
RS | LED, 2.0 X 3MM SMD LED W/REFLECTOR SUPER ULTRA GREEN ALLNGAP Min Qty: 20000 Package Multiple: 1 Container: Bulk | 0 |
|
$0.5200 / $0.5800 | RFQ |
|
|
Onlinecomponents.com | LED Uni-Color Green 574nm 2-Pin SMD T/R RoHS: Compliant |
746 In Stock |
|
$0.3611 / $0.4799 | Buy Now |
|
DISTI #
51543210
|
Verical | LED Uni-Color Green 574nm 2-Pin SMD T/R RoHS: Compliant Min Qty: 150 Package Multiple: 50 Date Code: 2039 | Americas - 700 |
|
$0.4827 / $0.6239 | Buy Now |
|
|
Quest Components | SINGLE COLOR LED, SUPER ULTRA GREEN, CLEAR, 2MM | 58 |
|
$0.5805 / $0.9675 | Buy Now |
|
DISTI #
SML-LX23SUGC-TR
|
IBS Electronics | LED 2.0 X 3MM SMD LED W/REFLECTOR SUPER ULTRA GREEN ALLNGAP | LUMEX SML-LX23SUGC-TR Min Qty: 50 Package Multiple: 1 | 746 |
|
$0.4694 / $0.6239 | Buy Now |
|
|
Master Electronics | LED Uni-Color Green 574nm 2-Pin SMD T/R RoHS: Compliant |
746 In Stock |
|
$0.3611 / $0.4799 | Buy Now |
|
|
Vyrian | Optoelectronics | 5336 |
|
RFQ |
Part Details for SML-LX23SUGC-TR
SML-LX23SUGC-TR CAD Models
SML-LX23SUGC-TR Part Data Attributes
|
|
SML-LX23SUGC-TR
ITW Lumex
Buy Now
Datasheet
|
Compare Parts:
SML-LX23SUGC-TR
ITW Lumex
Single Color LED, Super Ultra Green, Clear, 2mm, 2 X 3 MM, SMT, 2 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LUMEX INC | |
| Package Description | 2 X 3 MM, SMT, 2 PIN | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.40.20.00 | |
| Samacsys Manufacturer | Lumex | |
| Color | SUPER ULTRA GREEN | |
| Color@Wavelength | Green-Yellow | |
| Configuration | SINGLE | |
| Forward Current-Max | 0.025 A | |
| Forward Voltage-Max | 2.6 V | |
| Lens Type | CLEAR | |
| Luminous Intensity-Nom | 80.0 mcd | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 80 °C | |
| Operating Temperature-Min | -25 °C | |
| Optoelectronic Device Type | SINGLE COLOR LED | |
| Overall Height | 1.4 mm | |
| Packing Method | TR | |
| Peak Wavelength | 574 nm | |
| Reverse Voltage-Max | 5 V | |
| Shape | RECTANGULAR | |
| Size | 2 mm | |
| Surface Mount | YES | |
| Terminal Pitch | 2.8 mm | |
| Viewing Angle | 90 deg |
SML-LX23SUGC-TR Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the SML-LX23SUGC-TR is -40°C to 85°C.
-
Yes, the SML-LX23SUGC-TR is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
-
The typical forward voltage drop of the SML-LX23SUGC-TR is around 2.0-2.5V at a forward current of 20mA.
-
Yes, the SML-LX23SUGC-TR is suitable for outdoor applications, with a moisture sensitivity level (MSL) of 3 and a rating of IP67 for dust and water resistance.
-
The recommended storage temperature range for the SML-LX23SUGC-TR is -40°C to 30°C, and the recommended storage humidity range is 20% to 80% RH.
