Optoelectronics / Visible LEDs / SML-D12U8WT86Q
Datasheets
SML-D12U8WT86Q by: ROHM Semiconductor

Single Color LED, Red, Milky White, 1.2mm, 1.60 X 0.80 MM, 0.55 MM HEIGHT, 0603, 2 PIN

Part Details for SML-D12U8WT86Q by ROHM Semiconductor

Results Overview of SML-D12U8WT86Q by ROHM Semiconductor

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Renewable Energy

SML-D12U8WT86Q Information

SML-D12U8WT86Q by ROHM Semiconductor is a Visible LED.
Visible LEDs are under the broader part category of Optoelectronics.

Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.

Price & Stock for SML-D12U8WT86Q

Part # Distributor Description Stock Price Buy
DISTI # SML-D12U8WT86Q
Avnet Asia LED Single Chip Red 620nm 20mA 2-Pin SMD T/R (Alt: SML-D12U8WT86Q) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 24 Weeks, 0 Days 0
RFQ

Part Details for SML-D12U8WT86Q

SML-D12U8WT86Q CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

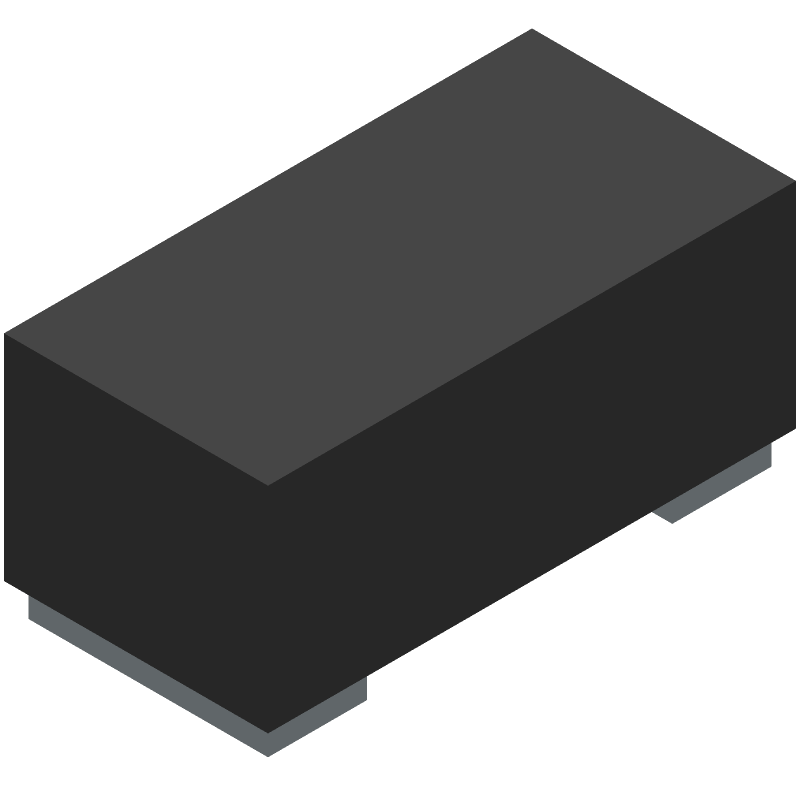

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SML-D12U8WT86Q Part Data Attributes

Parametric Data
SML-D12U8WT86Q ROHM Semiconductor
Buy Now Datasheet
Compare Parts:
SML-D12U8WT86Q ROHM Semiconductor Single Color LED, Red, Milky White, 1.2mm, 1.60 X 0.80 MM, 0.55 MM HEIGHT, 0603, 2 PIN
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ROHM CO LTD
Reach Compliance Code compliant
HTS Code 8541.40.20.00
Samacsys Manufacturer ROHM Semiconductor
Additional Feature HIGH RELIABILITY
Color RED
Configuration SINGLE
Forward Current-Max 0.02 A
JESD-609 Code e4
Lens Type MILKY WHITE
Luminous Intensity-Nom 63.0 mcd
Mounting Feature SURFACE MOUNT
Number of Functions 1
Number of Terminals 2
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Optoelectronic Device Type SINGLE COLOR LED
Overall Height 0.55 mm
Packing Method TR, 7 INCH
Shape RECTANGULAR
Size 1.2 mm
Surface Mount YES
Terminal Finish GOLD OVER NICKEL
Terminal Pitch 1.65 mm

Alternate Parts for SML-D12U8WT86Q

This table gives cross-reference parts and alternative options found for SML-D12U8WT86Q. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SML-D12U8WT86Q, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
SML-D12U1WT86 ROHM Semiconductor $0.0724 Single Color LED, Red, Milky White, 1.2mm, 1.60 X 0.80 MM, 0.55 MM HEIGHT, 0603, 2 PIN SML-D12U8WT86Q vs SML-D12U1WT86
SML-E12U8WT86 ROHM Semiconductor $0.1061 Single Color LED, Red, Diffused Milky White, 1.2mm, 1.60 X 0.80 MM, 0.36 MM HEIGHT, ROHS COMPLIANT, 0603, 2 PIN SML-D12U8WT86Q vs SML-E12U8WT86
SML-D12U8WT87Q ROHM Semiconductor Check for Price Single Color LED, Red, Milky White, 1.2mm, 1.60 X 0.80 MM, 0.55 MM HEIGHT, 0603, 2 PIN SML-D12U8WT86Q vs SML-D12U8WT87Q
SML-D12U1WT87R ROHM Semiconductor Check for Price Single Color LED, Red, Milky White, 1.2mm, 1.60 X 0.80 MM, 0.55 MM HEIGHT, 0603, 2 PIN SML-D12U8WT86Q vs SML-D12U1WT87R
SML-D12U1WT86R ROHM Semiconductor Check for Price Single Color LED, Red, Milky White, 1.2mm, 1.60 X 0.80 MM, 0.55 MM HEIGHT, 0603, 2 PIN SML-D12U8WT86Q vs SML-D12U1WT86R
SML-D12U1WT87Q ROHM Semiconductor Check for Price Single Color LED, Red, Milky White, 1.2mm, 1.60 X 0.80 MM, 0.55 MM HEIGHT, 0603, 2 PIN SML-D12U8WT86Q vs SML-D12U1WT87Q
SML-D12U8WT87R ROHM Semiconductor Check for Price Single Color LED, Red, Milky White, 1.2mm, 1.60 X 0.80 MM, 0.55 MM HEIGHT, 0603, 2 PIN SML-D12U8WT86Q vs SML-D12U8WT87R
SML-E12U8W ROHM Semiconductor Check for Price Single Color LED, Red, Diffused Milky White, 1.2mm, 1.60 X 0.80 MM, ROHS COMPLIANT PACKAGE-2 SML-D12U8WT86Q vs SML-E12U8W
SML-D12U8WT86P ROHM Semiconductor Check for Price Single Color LED, Red, Milky White, 1.2mm, 1.60 X 0.80 MM, 0.55 MM HEIGHT, 0603, 2 PIN SML-D12U8WT86Q vs SML-D12U8WT86P

SML-D12U8WT86Q Related Parts

SML-D12U8WT86Q Frequently Asked Questions (FAQ)

  • The recommended storage temperature for SML-D12U8WT86Q is -30°C to 60°C, as per ROHM Semiconductor's guidelines.

  • While the SML-D12U8WT86Q is designed to operate in a wide range of temperatures, it's not recommended for use in high-humidity environments above 80% RH. ROHM Semiconductor recommends taking precautions to prevent moisture ingress.

  • The maximum soldering temperature for the SML-D12U8WT86Q is 260°C for 10 seconds, as per ROHM Semiconductor's reflow soldering guidelines.

  • Yes, the SML-D12U8WT86Q is compatible with lead-free soldering. ROHM Semiconductor recommends using a lead-free soldering process with a peak temperature of 260°C.

  • To prevent ESD damage, ROHM Semiconductor recommends handling the SML-D12U8WT86Q with anti-static wrist straps, mats, or bags, and ensuring that all equipment and tools are properly grounded.
