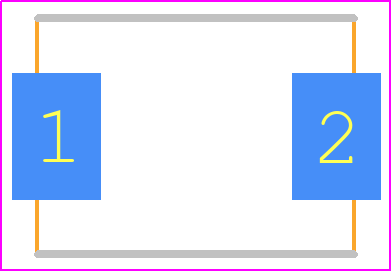

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SMDJ16CA by Littelfuse Inc
Results Overview of SMDJ16CA by Littelfuse Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
SMDJ16CA Information
SMDJ16CA by Littelfuse Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMDJ16CA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
32M3609
|
Newark | Tvs 3Kw 16V 5%bi Do-214Ab Tr13 Rohs/ Tr |Littelfuse SMDJ16CA RoHS: Not Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.3750 / $0.4420 | Buy Now |
|
DISTI #
SMDJ16CACT-ND
|
DigiKey | TVS DIODE 16VWM 26VC DO214AB Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3113 In Stock |
|
$0.3518 / $0.8800 | Buy Now |
|
DISTI #
576-SMDJ16CA
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 3kW 16V 5% Bi-Directional RoHS: Compliant | 2184 |
|
$0.3510 / $0.8800 | Buy Now |
|
DISTI #
V72:2272_06470841
|
Arrow Electronics | TVS Diode Single Bi-Dir 16V 3KW 2-Pin SMC T/R Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2234 Container: Cut Strips | Americas - 2716 |
|
$0.3551 / $0.9537 | Buy Now |
|
DISTI #
63383024
|
Verical | TVS Diode Single Bi-Dir 16V 3KW 2-Pin SMC T/R Min Qty: 17 Package Multiple: 1 Date Code: 2234 | Americas - 2716 |
|
$0.3551 / $0.7005 | Buy Now |
|
|
Bristol Electronics | Min Qty: 5 | 120 |
|
$0.3938 / $1.0500 | Buy Now |
|
|
Quest Components | TRANS VOLTAGE SUPPRESSOR DIODE, 3000W, 16V V(RWM), BIDIRECTIONAL, 1 ELEMENT, SILICON, DO-214AB | 96 |
|
$0.4200 / $1.4000 | Buy Now |
|
DISTI #
SMDJ16CA
|
TTI | ESD Protection Diodes / TVS Diodes 3kW 16V 5% Bi-Directional RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Container: Reel | Americas - 0 |
|
$0.4110 / $0.4190 | Buy Now |
|
|
ComSIT USA | TVS Diode Trans Voltage Suppressor Diode, 3000W, 16V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB ECCN: EAR99 RoHS: Compliant |
|
|
RFQ |
Part Details for SMDJ16CA
SMDJ16CA CAD Models
SMDJ16CA Part Data Attributes
|
|
SMDJ16CA
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
SMDJ16CA
Littelfuse Inc
Trans Voltage Suppressor Diode, 3000W, 16V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Part Package Code | DO-214AB | |
| Pin Count | 2 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY | |
| Breakdown Voltage-Max | 19.7 V | |
| Breakdown Voltage-Min | 17.8 V | |
| Breakdown Voltage-Nom | 18.75 V | |
| Clamping Voltage-Max | 26 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AB | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 3000 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 6.5 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | IEC-61000-4-2, 4-4; UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 16 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 |
SMDJ16CA Frequently Asked Questions (FAQ)
-
The recommended land pattern for SMDJ16CA is a rectangular pad with a size of 2.5mm x 1.5mm, with a 0.5mm gap between the pads.
-
To ensure reliable soldering of SMDJ16CA, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the pads. Use a soldering technique that minimizes the risk of overheating the component.
-
Yes, SMDJ16CA is a high-reliability component that meets the requirements of AEC-Q101, making it suitable for use in automotive and other high-reliability applications.
-
SMDJ16CA is designed to respond quickly to surge events, clamping the voltage to a safe level to protect the downstream circuitry. The response time is typically in the range of 1-10 ns.
-
SMDJ16CA is rated for operation up to 150°C, making it suitable for use in high-temperature environments. However, the component's performance may degrade at temperatures above 125°C.
