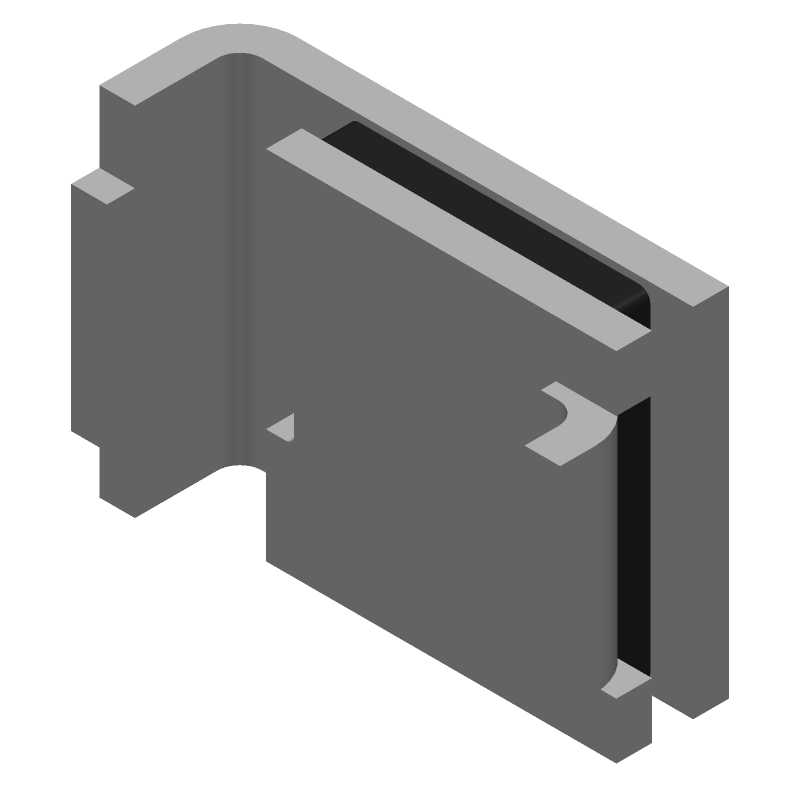

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SMD200F-2 by Littelfuse Inc
Results Overview of SMD200F-2 by Littelfuse Inc
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SMD200F-2 Information
SMD200F-2 by Littelfuse Inc is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for SMD200F-2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
69K8056
|
Newark | Resettable Fuse, Product Range:Polyswitch Series, Holding Current:2A, Tripping Current:4A, Voltage Rating:24Vdc, Thermistor Mounting:Smd, Operating Temperature Min:-40 C, Operating Temperature Max:85 C, External Depth:3Mm Rohs Compliant: Yes |Littelfuse SMD200F-2 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1450 |
|
$0.2870 / $0.3400 | Buy Now |
|
DISTI #
26M3153
|
Newark | `olyswitch, Smd, 2A, Thermistor Mounting:Smd, Product Range:Polyswitch Series, Holding Current:2A, Tripping Current:4A, Voltage Rating:24Vdc, Operating Temperature Min:-40°C, Operating Temperature Max:85°C, Automotive Qualification Rohs Compliant: Yes |Littelfuse SMD200F-2 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 300 |
|
$0.3140 / $0.6170 | Buy Now |
|
DISTI #
99H2403
|
Newark | Resettable Fuse, Full Reel, Pptc Case Style:3425 (8763 Metric), Product Range:Polyswitch Smd Series, Voltage Rating:24Vdc, Holding Current:2A, Trip Current:4A, Time To Trip:12S, Current Rating Max:40A, Operating Temperature Min:-40°Crohs Compliant: Yes |Littelfuse SMD200F-2 RoHS: Compliant Min Qty: 1500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2280 / $0.2520 | Buy Now |
|
DISTI #
SMD200F-2CT-ND
|
DigiKey | PTC RESET FUSE 15V 2A 2SMD Min Qty: 1 Lead time: 15 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
5552 In Stock |
|
$0.2333 / $0.6300 | Buy Now |
|
DISTI #
650-SMD200F-2
|
Mouser Electronics | Resettable Fuses - PPTC 2A 15V 40A Imax RoHS: Compliant | 9234 |
|
$0.2360 / $0.5000 | Buy Now |
|
|
Future Electronics | SMD Series 15 V 2 A Ihold Surface Mount PolySwitch Resettable Fuse RoHS: Compliant pbFree: Yes Min Qty: 1500 Package Multiple: 1500 Lead time: 12 Weeks Container: Reel | 48000Reel |
|
$0.1860 / $0.1960 | Buy Now |
|
|
Future Electronics | SMD Series 15 V 2 A Ihold Surface Mount PolySwitch Resettable Fuse RoHS: Compliant pbFree: Yes Min Qty: 1500 Package Multiple: 1500 Lead time: 12 Weeks Container: Reel | 0Reel |
|
$0.1860 / $0.1960 | Buy Now |
|
|
Bristol Electronics | Min Qty: 11 | 1145 |
|
$0.1560 / $0.4875 | Buy Now |
|
|
Bristol Electronics | 411 |
|
RFQ | ||
|
|
Quest Components | RESISTOR, TEMPERATURE DEPENDENT, PTC RESETTABLE FUSE, SURFACE MOUNT | 1112 |
|
$0.7875 / $2.2500 | Buy Now |
Part Details for SMD200F-2
SMD200F-2 CAD Models
SMD200F-2 Part Data Attributes
|
|
SMD200F-2
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
SMD200F-2
Littelfuse Inc
PTC Resettable Fuse, Surface Mount, CHIP, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.40.80.70 | |
| Samacsys Manufacturer | LITTELFUSE | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 3 mm | |
| Package Length | 9.4 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 6.71 mm | |
| Packing Method | TR, EMBOSSED, 13 INCH | |
| Reference Standard | CSA; TUV; UL | |
| Resistance | 0.05 Ω | |
| Resistor Type | PTC RESETTABLE FUSE | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | FLAT | |
| Thermistor Application | OVERCURRENT PROTECTION | |
| Working Voltage | 15 V |
SMD200F-2 Frequently Asked Questions (FAQ)
-
The recommended land pattern for SMD200F-2 is a rectangular pad with a size of 2.5mm x 1.5mm, with a 0.5mm gap between the pads.
-
While SMD200F-2 is rated for operation up to 125°C, it's recommended to derate the fuse's current rating by 1.5% per degree Celsius above 85°C to ensure reliable operation.
-
The voltage drop across the fuse during fault conditions can be significant. Ensure that your circuit design takes into account the fuse's voltage drop to prevent unwanted tripping or malfunction.
-
While SMD200F-2 is designed to be robust, it's still important to ensure that the PCB is properly secured and the fuse is properly soldered to prevent mechanical stress and vibration-induced failures.
-
The recommended soldering profile for SMD200F-2 is a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C.
