Diodes / Transient Suppressors / SMCJ6.0A-TR
Datasheets
SMCJ6.0A-TR by:

1500 W, 6 V TVS in SMC

Part Details for SMCJ6.0A-TR by STMicroelectronics

Results Overview of SMCJ6.0A-TR by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SMCJ6.0A-TR Information

SMCJ6.0A-TR by STMicroelectronics is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for SMCJ6.0A-TR

Part # Distributor Description Stock Price Buy
DISTI # 497-4296-1-ND
DigiKey TVS DIODE 6VWM 13.7VC SMC Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 8325
In Stock
  • 1 $0.6600
  • 10 $0.5570
  • 100 $0.3890
  • 500 $0.3100
  • 1,000 $0.2840
  • 2,500 $0.2261
$0.2261 / $0.6600 Buy Now
DISTI # SMCJ6.0A-TR
Avnet Americas Diode TVS Single Uni-Dir 6V 1.5KW 2-Pin DO-214AB T/R - Tape and Reel (Alt: SMCJ6.0A-TR) RoHS: Compliant Min Qty: 5000 Package Multiple: 2500 Lead time: 53 Weeks, 1 Days Container: Reel 0
  • 5,000 $0.2034
  • 10,000 $0.1980
  • 15,000 $0.1942
  • 25,000 $0.1895
  • 50,000 $0.1851
$0.1851 / $0.2034 Buy Now
DISTI # 511-SMCJ6.0A-TR
Mouser Electronics ESD Protection Diodes / TVS Diodes 1500W 6.0V Unidirect RoHS: Compliant 6648
  • 1 $0.6600
  • 10 $0.5570
  • 100 $0.3890
  • 500 $0.3100
  • 1,000 $0.2840
  • 2,500 $0.2260
$0.2260 / $0.6600 Buy Now
STMicroelectronics 1500 W, 6 V TVS in SMC RoHS: Compliant Min Qty: 1 6648
  • 1 $0.6500
  • 10 $0.5500
  • 100 $0.3800
  • 500 $0.3000
$0.3000 / $0.6500 Buy Now
Bristol Electronics   391
RFQ
Quest Components   312
  • 1 $0.9600
  • 27 $0.5760
  • 105 $0.4800
$0.4800 / $0.9600 Buy Now
DISTI # SMCJ6.0A-TR
TME Diode: TVS, 1.5kW, 7.05V, 152A, unidirectional, SMC, reel,tape Min Qty: 1 0
  • 1 $0.5120
  • 10 $0.4530
  • 25 $0.4100
  • 100 $0.3470
  • 250 $0.3140
  • 500 $0.2630
  • 1,000 $0.2200
  • 2,500 $0.1940
  • 5,000 $0.1750
  • 10,000 $0.1690
$0.1690 / $0.5120 RFQ
DISTI # SMCJ6.0A-TR
IBS Electronics SMCJ SERIES 1500 W 7.05 V SURFACE MOUNT UNI DIRECTIONAL TVS DIODE-DO-214AB (SMC) Min Qty: 2500 Package Multiple: 1 30000
  • 2,500 $0.2093
  • 5,000 $0.2067
  • 7,500 $0.2054
  • 10,000 $0.2041
  • 12,500 $0.2015
$0.2015 / $0.2093 Buy Now
DISTI # SMCJ6.0A-TR
Avnet Silica Diode TVS Single UniDir 6V 15KW 2Pin DO214AB TR (Alt: SMCJ6.0A-TR) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 14 Weeks, 0 Days Silica - 12500
Buy Now
Cytech Systems Limited TVS DIODE 6VWM 13.7VC SMC 5000
RFQ
DISTI # SMCJ6.0A-TR
EBV Elektronik Diode TVS Single UniDir 6V 15KW 2Pin DO214AB TR (Alt: SMCJ6.0A-TR) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 14 Weeks, 0 Days EBV - 0
Buy Now
Vyrian Diodes 3965
RFQ

Part Details for SMCJ6.0A-TR

SMCJ6.0A-TR CAD Models

  • Part Symbol

    Part Symbol

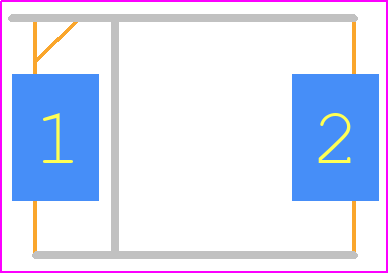

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SMCJ6.0A-TR Part Data Attributes

Parametric Data
SMCJ6.0A-TR STMicroelectronics
Buy Now Datasheet
Compare Parts:
SMCJ6.0A-TR STMicroelectronics 1500 W, 6 V TVS in SMC
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code DO-214AB
Package Description SMC, 2 PIN
Pin Count 2
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Factory Lead Time 53 Weeks, 1 Day
Samacsys Manufacturer STMicroelectronics
Breakdown Voltage-Min 6.7 V
Clamping Voltage-Max 13.7 V
Configuration SINGLE
Diode Element Material SILICON
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 Code DO-214AB
JESD-30 Code R-PDSO-C2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 1500 W
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Power Dissipation-Max 6.5 W
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 6 V
Surface Mount YES
Technology AVALANCHE
Terminal Finish Matte Tin (Sn) - annealed
Terminal Form C BEND
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30

Alternate Parts for SMCJ6.0A-TR

This table gives cross-reference parts and alternative options found for SMCJ6.0A-TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMCJ6.0A-TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
SMCJ6.0A Littelfuse Inc $0.2478 Trans Voltage Suppressor Diode, 1500W, 6V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, HALOGEN FREE AND ROHS COMPLIANT PACKAGE-2 SMCJ6.0A-TR vs SMCJ6.0A
SMCJ6.0A-E3/9AT Vishay Intertechnologies $0.3620 Trans Voltage Suppressor Diode, 1500W, 6V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, DO-214AB, SMC, 2 PIN SMCJ6.0A-TR vs SMCJ6.0A-E3/9AT
SMCJ6.0A-HRAT7 Littelfuse Inc $15.9118 Trans Voltage Suppressor Diode SMCJ6.0A-TR vs SMCJ6.0A-HRAT7
SMCJ6.0A-E3/57T Vishay Semiconductors Check for Price DIODE 1500 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AB, ROHS COMPLIANT, PLASTIC, SMCJ, 2 PIN, Transient Suppressor SMCJ6.0A-TR vs SMCJ6.0A-E3/57T
SMCJ6.0A MERITEK Electronics Corporation Check for Price Trans Voltage Suppressor Diode, 1500W, 6V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN SMCJ6.0A-TR vs SMCJ6.0A
SMCJ6.0 Vishay Semiconductors Check for Price Trans Voltage Suppressor Diode, 1500W, 6V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, PLASTIC, SMC, 2 PIN SMCJ6.0A-TR vs SMCJ6.0
SMCJ6.0AHM3/H Vishay Intertechnologies Check for Price Trans Voltage Suppressor Diode, SMCJ6.0A-TR vs SMCJ6.0AHM3/H
SMCJ6.0A-E3/9AT Vishay Semiconductors Check for Price DIODE 1500 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AB, ROHS COMPLIANT, PLASTIC, SMCJ, 2 PIN, Transient Suppressor SMCJ6.0A-TR vs SMCJ6.0A-E3/9AT
1SMC6.0AT3G Littelfuse Inc Check for Price Trans Voltage Suppressor Diode, 1500W, 6V V(RWM), Unidirectional, 1 Element, Silicon, SMC, 2 PIN SMCJ6.0A-TR vs 1SMC6.0AT3G
Part Number Manufacturer Composite Price Description Compare
SMCJ6.0A-HR Littelfuse Inc $17.7215 Trans Voltage Suppressor Diode, 1500W, 6V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMC, 2 PIN SMCJ6.0A-TR vs SMCJ6.0A-HR
SMCJ5.0A-HRA Littelfuse Inc $21.6992 Trans Voltage Suppressor Diode, SMCJ6.0A-TR vs SMCJ5.0A-HRA
SMCJ6.0A/57T Vishay Semiconductors Check for Price Trans Voltage Suppressor Diode, 1500W, Unidirectional, 1 Element, Silicon, DO-214AB, DO-214AB, SMC, 2 PIN SMCJ6.0A-TR vs SMCJ6.0A/57T
SMCG6.0A-M3/57T Vishay Intertechnologies Check for Price Trans Voltage Suppressor Diode, 1500W, 6V V(RWM), Unidirectional, 1 Element, Silicon, DO-215AB, SMCJ6.0A-TR vs SMCG6.0A-M3/57T
1.5SMCJ5.0-T3-LF Won-Top Electronics Co Ltd Check for Price Trans Voltage Suppressor Diode, 1500W, 5V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN SMCJ6.0A-TR vs 1.5SMCJ5.0-T3-LF
SMCJ5.0A-M3/9AT Vishay Intertechnologies Check for Price Trans Voltage Suppressor Diode, 1500W, 5V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, DO-214AB, SMC, 2 PIN SMCJ6.0A-TR vs SMCJ5.0A-M3/9AT
SMCJ6.0A Pulse Electronics Corporation Check for Price Trans Voltage Suppressor Diode, 1500W, 6V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN SMCJ6.0A-TR vs SMCJ6.0A
1.5SMC6.8AR7 Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 1500W, 5.8V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN SMCJ6.0A-TR vs 1.5SMC6.8AR7
1.5SMC6.8A-E3/9AT Vishay Semiconductors Check for Price DIODE 1500 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN, Transient Suppressor SMCJ6.0A-TR vs 1.5SMC6.8A-E3/9AT
SMCJ6.0 Telefunken Microelectronics Gmbh Check for Price Transient Suppressor, SMCJ6.0A-TR vs SMCJ6.0

SMCJ6.0A-TR Related Parts

SMCJ6.0A-TR Frequently Asked Questions (FAQ)

  • The recommended footprint for SMCJ6.0A-TR is a standard SMC (DO-214AB) package with a pad layout of 5.08mm x 2.92mm.

  • To ensure reliability, follow the recommended derating curves for voltage and current, and consider using a heat sink or thermal interface material to reduce the junction temperature.

  • Yes, the SMCJ6.0A-TR is suitable for high-frequency circuits up to 1 GHz. However, consider the parasitic inductance and capacitance of the device and the PCB layout to minimize signal degradation.

  • Handle the device by the body or pins, avoid touching the pins, and use an ESD wrist strap or mat to prevent static discharge. Store the devices in anti-static packaging.

  • The recommended soldering profile is a peak temperature of 260°C for 10-30 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.
