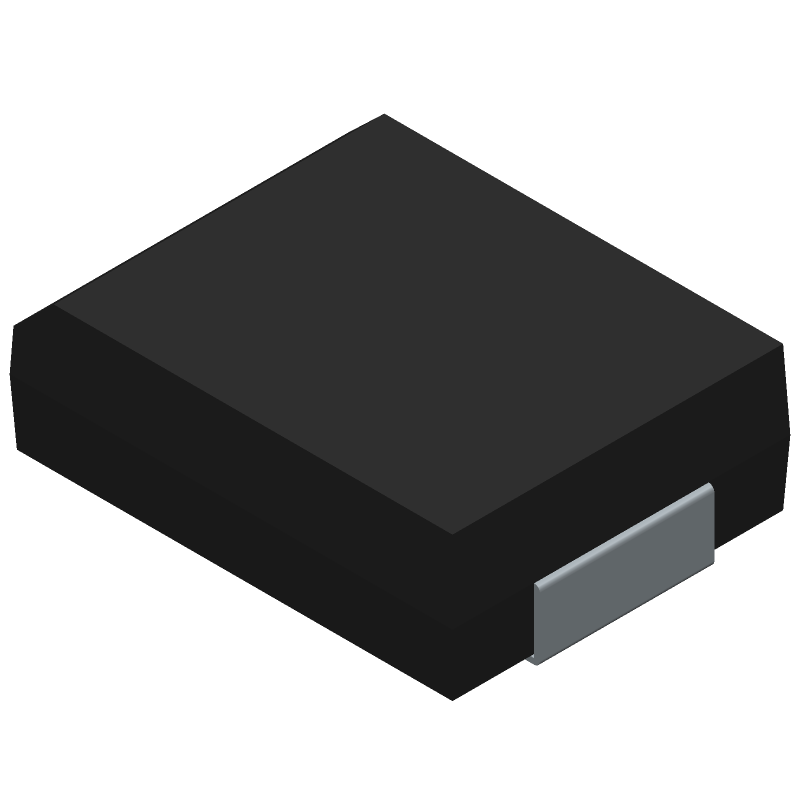

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SMCJ18A-E3/57T by Vishay Intertechnologies
Results Overview of SMCJ18A-E3/57T by Vishay Intertechnologies
- Distributor Offerings: (20 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SMCJ18A-E3/57T Information
SMCJ18A-E3/57T by Vishay Intertechnologies is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMCJ18A-E3/57T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
98AH5934
|
Newark | 1.5Kw,18V 5%,unidir, smc Tvs Rohs Compliant: Yes |Vishay SMCJ18A-E3/57T RoHS: Compliant Min Qty: 850 Package Multiple: 1 Date Code: 0 Container: Reel | 39950 |
|
$0.2730 / $0.3510 | Buy Now |
|
DISTI #
97K9959
|
Newark | Tvs Diode, 1.5Kw, 18V, Unidir, Do-214Ab, Product Range:Transzorb Smcj Series, Tvs Polarity:Unidirectional, Reverse Standoff Voltage:18V, Clamping Voltage Max:29.2V, Diode Case Style:Do-214Ab (Smc), No. Of Pins:2Pins, Qualification:- Rohs Compliant: Yes |Vishay SMCJ18A-E3/57T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 54 |
|
$0.0830 | Buy Now |
|
DISTI #
77K6429
|
Newark | Tvs Diode, 1.5Kw, 18V, Do-214Ab, Full Reel, Product Range:Transzorb Smcj Series, Tvs Polarity:Unidirectional, Reverse Standoff Voltage:18V, Clamping Voltage Max:29.2V, Diode Case Style:Do-214Ab (Smc), No. Of Pins:2Pins Rohs Compliant: Yes |Vishay SMCJ18A-E3/57T RoHS: Compliant Min Qty: 1700 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2730 / $0.3510 | Buy Now |
|
DISTI #
SMCJ18A-E3/57T
|
Avnet Americas | 1.5KW,18V 5%,UNIDIR,SMC TVS - Tape and Reel (Alt: SMCJ18A-E3/57T) RoHS: Compliant Min Qty: 850 Package Multiple: 850 Lead time: 9 Weeks, 0 Days Container: Reel | 39950 |
|
$0.1035 | Buy Now |
|
DISTI #
97K9959
|
Avnet Americas | 1.5KW,18V 5%,UNIDIR,SMC TVS - Product that comes on tape, but is not reeled (Alt: 97K9959) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Container: Ammo Pack | 54 Partner Stock |
|
$0.3780 / $0.7030 | Buy Now |
|
DISTI #
625-SMCJ18A-E3
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 1500W 18V Unidirect RoHS: Compliant | 1807 |
|
$0.1660 / $0.5800 | Buy Now |
|
DISTI #
E02:0323_00193689
|
Arrow Electronics | TVS Diode Single Uni-Dir 18V 1.5KW 2-Pin SMC T/R Min Qty: 850 Package Multiple: 850 Lead time: 9 Weeks Date Code: 2503 | Europe - 57800 |
|
$0.1681 / $0.1742 | Buy Now |
|
DISTI #
V36:1790_18781250
|
Arrow Electronics | TVS Diode Single Uni-Dir 18V 1.5KW 2-Pin SMC T/R Min Qty: 1700 Package Multiple: 1700 Lead time: 9 Weeks Date Code: 2421 | Americas - 15300 |
|
$0.1162 | Buy Now |
|
DISTI #
V72:2272_18781250
|
Arrow Electronics | TVS Diode Single Uni-Dir 18V 1.5KW 2-Pin SMC T/R Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks Date Code: 2409 Container: Cut Strips | Americas - 369 |
|
$0.1306 / $0.1887 | Buy Now |
|
|
Future Electronics | 1500 W DO-214AB 18 V Uni Directional SMT Transient Voltage Suppressor Diode RoHS: Compliant pbFree: Yes Min Qty: 850 Package Multiple: 850 Lead time: 9 Weeks Container: Reel | 2550Reel |
|
$0.1130 / $0.1200 | Buy Now |
Part Details for SMCJ18A-E3/57T
SMCJ18A-E3/57T CAD Models
SMCJ18A-E3/57T Part Data Attributes
|
|
SMCJ18A-E3/57T
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
SMCJ18A-E3/57T
Vishay Intertechnologies
Trans Voltage Suppressor Diode, 1500W, 18V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, DO-214AB, SMC, 2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | DO-214AB, SMC, 2 PIN | |
| Reach Compliance Code | not_compliant | |
| Factory Lead Time | 14 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY | |
| Breakdown Voltage-Max | 22.1 V | |
| Breakdown Voltage-Min | 20 V | |
| Breakdown Voltage-Nom | 21.05 V | |
| Clamping Voltage-Max | 29.2 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| Forward Voltage-Max (VF) | 3.5 V | |
| JEDEC-95 Code | DO-214AB | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 1500 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 6.5 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 18 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for SMCJ18A-E3/57T
This table gives cross-reference parts and alternative options found for SMCJ18A-E3/57T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMCJ18A-E3/57T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SMCJ18 | Concord Semiconductor Corp | Check for Price | Trans Voltage Suppressor Diode, 18V V(RWM), Unidirectional, | SMCJ18A-E3/57T vs SMCJ18 |
| SMCJ18A | MERITEK Electronics Corporation | Check for Price | Trans Voltage Suppressor Diode, 1500W, 18V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN | SMCJ18A-E3/57T vs SMCJ18A |
| SMCJ18 | Square D by Schneider Electric | Check for Price | Trans Voltage Suppressor Diode, 18V V(RWM), Unidirectional, | SMCJ18A-E3/57T vs SMCJ18 |
SMCJ18A-E3/57T Frequently Asked Questions (FAQ)
-
The recommended land pattern for the SMCJ18A-E3/57T can be found in the Vishay Intertechnologies' application note AN10364, which provides guidelines for surface mount assembly of SMC packages.
-
To prevent damage, handle the SMCJ18A-E3/57T by the body only, avoiding touching the leads or the glass passivation. Use anti-static wrist straps, mats, or floors to prevent electrostatic discharge (ESD) damage.
-
The maximum storage temperature for the SMCJ18A-E3/57T is 30°C to 40°C (86°F to 104°F) with a relative humidity of 60% to 90%.
-
Yes, the SMCJ18A-E3/57T is suitable for high-reliability applications. It is manufactured and tested to meet the requirements of MIL-PRF-19500 and is qualified to the aerospace industry standard ESCC 3012.
-
The SMCJ18A-E3/57T can be soldered using a wave soldering process with a peak temperature of 260°C (500°F) for 10 seconds maximum. Hand soldering is not recommended.
