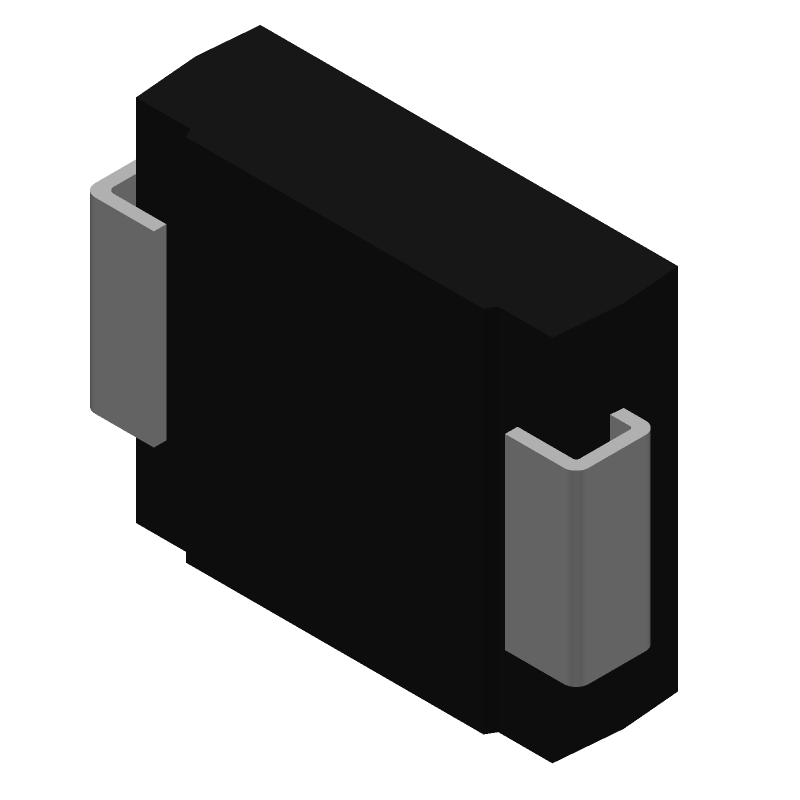

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SMCJ150A-E3/57T by Vishay Intertechnologies
Results Overview of SMCJ150A-E3/57T by Vishay Intertechnologies
- Distributor Offerings: (16 listings)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SMCJ150A-E3/57T Information
SMCJ150A-E3/57T by Vishay Intertechnologies is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMCJ150A-E3/57T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
64AH8659
|
Newark | Tvs Diode, 1.5Kw, 150V, Unidir, Do-214Ab Rohs Compliant: Yes |Vishay SMCJ150A-E3/57T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1286 |
|
$0.3170 / $0.6480 | Buy Now |
|
DISTI #
38AH2463
|
Newark | 1.5Kw,150V 5%,unidir, smc Tvs Rohs Compliant: Yes |Vishay SMCJ150A-E3/57T RoHS: Compliant Min Qty: 850 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2670 / $0.3560 | Buy Now |
|
DISTI #
77K6340
|
Newark | Tvs Diode, 1.5Kw, 150V, Do-214Ab, Full Reel, Product Range:Transzorb Smcj Series, Tvs Polarity:Unidirectional, Reverse Standoff Voltage:150V, Clamping Voltage Max:243V, Diode Case Style:Do-214Ab (Smc), No. Of Pins:2Pins Rohs Compliant: Yes |Vishay SMCJ150A-E3/57T RoHS: Compliant Min Qty: 1700 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2730 / $0.3510 | Buy Now |
|
DISTI #
SMCJ150A-E3/57T
|
Avnet Americas | TVS Diode, TRANSZORB SMCJ Series, Unidirectional, 150 V, 243 V, DO-214AB (SMC), 2 Pins - Tape and Reel (Alt: SMCJ150A-E3/57T) RoHS: Compliant Min Qty: 850 Package Multiple: 850 Lead time: 9 Weeks, 0 Days Container: Reel | 23800 |
|
$0.1057 | Buy Now |
|
DISTI #
625-SMCJ150A-E3
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 1500W 150V Unidirect RoHS: Compliant | 0 |
|
$0.1660 / $0.3800 | Order Now |
|
DISTI #
E02:0323_00193340
|
Arrow Electronics | TVS Diode Single Uni-Dir 150V 1.5KW 2-Pin SMC T/R Min Qty: 850 Package Multiple: 850 Lead time: 9 Weeks Date Code: 2503 | Europe - 313650 |
|
$0.1247 | Buy Now |
|
DISTI #
V36:1790_18779824
|
Arrow Electronics | TVS Diode Single Uni-Dir 150V 1.5KW 2-Pin SMC T/R Min Qty: 1700 Package Multiple: 1700 Lead time: 9 Weeks Date Code: 2441 | Americas - 3400 |
|
$0.1159 | Buy Now |
|
DISTI #
V72:2272_18779824
|
Arrow Electronics | TVS Diode Single Uni-Dir 150V 1.5KW 2-Pin SMC T/R Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks Date Code: 2228 Container: Cut Strips | Americas - 2 |
|
$0.1208 | Buy Now |
|
DISTI #
87622661
|
Verical | TVS Diode Single Uni-Dir 150V 1.5KW 2-Pin SMC T/R Min Qty: 850 Package Multiple: 850 Date Code: 2503 | Americas - 313650 |
|
$0.1253 | Buy Now |
|
DISTI #
85919946
|
Verical | TVS Diode Single Uni-Dir 150V 1.5KW 2-Pin SMC T/R Min Qty: 1700 Package Multiple: 1700 Date Code: 2441 | Americas - 3400 |
|
$0.1159 | Buy Now |
Part Details for SMCJ150A-E3/57T
SMCJ150A-E3/57T CAD Models
SMCJ150A-E3/57T Part Data Attributes
|
|
SMCJ150A-E3/57T
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
SMCJ150A-E3/57T
Vishay Intertechnologies
Trans Voltage Suppressor Diode, 1500W, 150V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, DO-214AB, SMC, 2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | DO-214AB, SMC, 2 PIN | |
| Reach Compliance Code | not_compliant | |
| Factory Lead Time | 9 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY | |
| Breakdown Voltage-Max | 185 V | |
| Breakdown Voltage-Min | 167 V | |
| Breakdown Voltage-Nom | 176 V | |
| Clamping Voltage-Max | 243 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| Forward Voltage-Max (VF) | 3.5 V | |
| JEDEC-95 Code | DO-214AB | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 1500 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 6.5 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 150 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for SMCJ150A-E3/57T
This table gives cross-reference parts and alternative options found for SMCJ150A-E3/57T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMCJ150A-E3/57T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MSMCJLCE150A | Microchip Technology Inc | $4.4808 | Trans Voltage Suppressor Diode, 1500W, 150V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB | SMCJ150A-E3/57T vs MSMCJLCE150A |
| MASMCJLCE150AE3 | Microchip Technology Inc | $8.7101 | Trans Voltage Suppressor Diode, 1500W, 150V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB | SMCJ150A-E3/57T vs MASMCJLCE150AE3 |
| SMCJ150AP5 | Fairchild Semiconductor Corporation | Check for Price | Trans Voltage Suppressor Diode, 1500W, 150V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN | SMCJ150A-E3/57T vs SMCJ150AP5 |
| SMCJ150A-7 | Diodes Incorporated | Check for Price | Trans Voltage Suppressor Diode, 1500W, 150V V(RWM), Unidirectional, 1 Element, Silicon, PLASTIC, SMC, 2 PIN | SMCJ150A-E3/57T vs SMCJ150A-7 |
| SMCJ150A | Lite-On Semiconductor Corporation | Check for Price | Trans Voltage Suppressor Diode, 1500W, 150V V(RWM), Unidirectional, 1 Element, Silicon, HALOGEN FREE, PLASTIC, SMC, 2 PIN | SMCJ150A-E3/57T vs SMCJ150A |
| SMCJ5663A/TR13 | Microsemi Corporation | Check for Price | Trans Voltage Suppressor Diode, 1500W, 145V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, PLASTIC PACKAGE-2 | SMCJ150A-E3/57T vs SMCJ5663A/TR13 |
| SMCJ150A-13 | Diodes Incorporated | Check for Price | Trans Voltage Suppressor Diode, 1500W, 150V V(RWM), Unidirectional, 1 Element, Silicon, PLASTIC, SMC, 2 PIN | SMCJ150A-E3/57T vs SMCJ150A-13 |
| SMCJ150A/51 | Vishay Semiconductors | Check for Price | Trans Voltage Suppressor Diode, 1500W, 150V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, PLASTIC, SMC, 2 PIN | SMCJ150A-E3/57T vs SMCJ150A/51 |
| SMCJ150A | Bourns Inc | Check for Price | Trans Voltage Suppressor Diode, 1500W, 150V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC PACKAGE-2 | SMCJ150A-E3/57T vs SMCJ150A |
SMCJ150A-E3/57T Frequently Asked Questions (FAQ)
-
The recommended land pattern for the SMCJ150A-E3/57T can be found in the Vishay Intertechnologies' application note AN10364, which provides guidelines for surface mount assembly of this component.
-
To prevent damage, handle the SMCJ150A-E3/57T by the body only, avoiding touching the leads or the glass passivation. Use anti-static wrist straps, mats, or other ESD protection devices to prevent electrostatic discharge damage.
-
The maximum soldering temperature for the SMCJ150A-E3/57T is 260°C (500°F) for 10 seconds. It is recommended to follow the soldering profile recommended by the manufacturer to prevent damage to the component.
-
Yes, the SMCJ150A-E3/57T is suitable for high-reliability applications. It is manufactured using a high-reliability process and is screened to ensure compliance with the relevant industry standards.
-
The equivalent series resistance (ESR) of the SMCJ150A-E3/57T is not explicitly stated in the datasheet. However, it can be estimated to be around 1.5 ohms based on the component's internal construction and materials.
