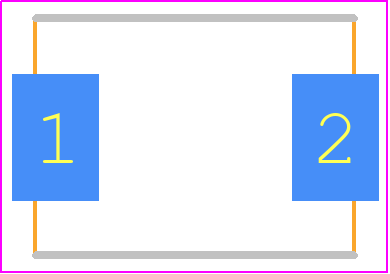

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SMCJ130CA-TR by STMicroelectronics
Results Overview of SMCJ130CA-TR by STMicroelectronics
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SMCJ130CA-TR Information
SMCJ130CA-TR by STMicroelectronics is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMCJ130CA-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-16191-1-ND
|
DigiKey | TVS DIODE 130VWM 265VC SMC Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3087 In Stock |
|
$0.2535 / $0.5000 | Buy Now |
|
DISTI #
SMCJ130CA-TR
|
Avnet Americas | Diode TVS Single Bi-Dir 130V 1.5KW 2-Pin DO-214AB T/R - Tape and Reel (Alt: SMCJ130CA-TR) RoHS: Compliant Min Qty: 5000 Package Multiple: 2500 Lead time: 53 Weeks, 1 Days Container: Reel | 0 |
|
$0.2079 / $0.2284 | Buy Now |
|
DISTI #
511-SMCJ130CA-TR
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 1500W 130V Bidirect RoHS: Compliant | 79 |
|
$0.2530 / $0.4500 | Buy Now |
|
DISTI #
V79:2366_26448454
|
Arrow Electronics | Diode TVS Single Bi-Dir 130V 1.5KW 2-Pin SMC T/R Min Qty: 1 Package Multiple: 1 Date Code: 2010 | Americas - 245 |
|
$0.1411 | Buy Now |
|
DISTI #
V72:2272_18457474
|
Arrow Electronics | Diode TVS Single Bi-Dir 130V 1.5KW 2-Pin SMC T/R Min Qty: 1 Package Multiple: 1 Date Code: 2010 Container: Cut Strips | Americas - 224 |
|
$0.3696 | Buy Now |
|
|
STMicroelectronics | 1500 W, 130 V TVS in SMC RoHS: Compliant Min Qty: 1 | 79 |
|
$0.3200 / $0.4400 | Buy Now |
|
DISTI #
61709141
|
Verical | Diode TVS Single Bi-Dir 130V 1.5KW 2-Pin SMC T/R Min Qty: 41 Package Multiple: 1 Date Code: 2010 | Americas - 245 |
|
$0.1411 | Buy Now |
|
DISTI #
39234905
|
Verical | Diode TVS Single Bi-Dir 130V 1.5KW 2-Pin SMC T/R Min Qty: 26 Package Multiple: 1 Date Code: 2010 | Americas - 224 |
|
$0.3696 | Buy Now |
|
DISTI #
SMCJ130CA-TR
|
IBS Electronics | SMCJ SERIES 1500 W 152 V BI DIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR - DO-214AB Min Qty: 5000 Package Multiple: 1 | 0 |
|
$0.2925 / $0.3055 | Buy Now |
|
DISTI #
SMCJ130CA-TR
|
Avnet Silica | Diode TVS Single BiDir 130V 15KW 2Pin DO214AB TR (Alt: SMCJ130CA-TR) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 14 Weeks, 0 Days | Silica - 32500 |
|
Buy Now |
Part Details for SMCJ130CA-TR
SMCJ130CA-TR CAD Models
SMCJ130CA-TR Part Data Attributes
|
|
SMCJ130CA-TR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
SMCJ130CA-TR
STMicroelectronics
1500 W, 130 V TVS in SMC
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | DO-214AB | |
| Package Description | SMC, 2 PIN | |
| Pin Count | 2 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 53 Weeks, 1 Day | |
| Samacsys Manufacturer | STMicroelectronics | |
| Breakdown Voltage-Min | 144 V | |
| Clamping Voltage-Max | 265 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AB | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 1500 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 6.5 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 130 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for SMCJ130CA-TR
This table gives cross-reference parts and alternative options found for SMCJ130CA-TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMCJ130CA-TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SMCJ130CA-E3/57T | Vishay Intertechnologies | $0.5392 | Trans Voltage Suppressor Diode, 1500W, 130V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, DO-214AB, SMC, 2 PIN | SMCJ130CA-TR vs SMCJ130CA-E3/57T |
| SMCJ130CA | Telefunken Microelectronics Gmbh | Check for Price | Transient Suppressor, | SMCJ130CA-TR vs SMCJ130CA |
| SMCJ130CA-M3/57T | Vishay Semiconductors | Check for Price | DIODE 1500 W, BIDIRECTIONAL, SILICON, TVS DIODE, DO-214AB, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMC, 2 PIN, Transient Suppressor | SMCJ130CA-TR vs SMCJ130CA-M3/57T |
| SMCJ130C-T | Rectron Semiconductor | Check for Price | Trans Voltage Suppressor Diode, | SMCJ130CA-TR vs SMCJ130C-T |
| SMCJ130CA | Vishay Intertechnologies | Check for Price | Trans Voltage Suppressor Diode, 1500W, 130V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, DO-214AB, SMC, 2 PIN | SMCJ130CA-TR vs SMCJ130CA |
| SMCJ130CA | Taitron Components Inc | Check for Price | Trans Voltage Suppressor Diode, | SMCJ130CA-TR vs SMCJ130CA |
| SMCJ130C.TF | Semtech Corporation | Check for Price | Trans Voltage Suppressor Diode, 1500W, Bidirectional, 1 Element, Silicon, DO-214AB | SMCJ130CA-TR vs SMCJ130C.TF |
| SMCJ130CA-E3/9AT | Vishay Semiconductors | Check for Price | DIODE 1500 W, BIDIRECTIONAL, SILICON, TVS DIODE, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN, Transient Suppressor | SMCJ130CA-TR vs SMCJ130CA-E3/9AT |
| SMCJ130CA | Galaxy Microelectronics | Check for Price | Surface Mount TVS Diode; Direction: Bidirectional; V(BR) Typ (V): 144V; PPK Max (W): 1500W; Condition: 10×1000us; VRWM Max (V): 130V; VBR Min (V): 144V; VBR Max (V): 159V; IR Max (uA): 5uA; VC Max (V): 209V; Package: SMC | SMCJ130CA-TR vs SMCJ130CA |
| SMCJ130CA | MERITEK Electronics Corporation | Check for Price | Trans Voltage Suppressor Diode, 1500W, 130V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN | SMCJ130CA-TR vs SMCJ130CA |
