Diodes / Transient Suppressors / SMCJ130CA-E3/57T
Datasheets
SMCJ130CA-E3/57T by:

Trans Voltage Suppressor Diode, 1500W, 130V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, DO-214AB, SMC, 2 PIN

Part Details for SMCJ130CA-E3/57T by Vishay Intertechnologies

Results Overview of SMCJ130CA-E3/57T by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SMCJ130CA-E3/57T Information

SMCJ130CA-E3/57T by Vishay Intertechnologies is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for SMCJ130CA-E3/57T

Part # Distributor Description Stock Price Buy
DISTI # 97W2733
Newark Transient Voltage Suppressor, Tvs, Transzorb Smcj Series, Bidirectional, 130 V, Do-214Ab, 2, 144 V Rohs Compliant: Yes |Vishay SMCJ130CA-E3/57T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 640
  • 1 $0.7280
  • 10 $0.6510
  • 25 $0.6010
  • 50 $0.5500
  • 100 $0.5000
  • 500 $0.4460
  • 1,000 $0.4320
  • 2,500 $0.4240
$0.4240 / $0.7280 Buy Now
DISTI # SMCJ130CA-E3/57T
Avnet Americas TVS Diode, TRANSZORB SMCJ, Bidirectional, 130 V, 209 V, DO-214AB (SMC), 2 Pins - Tape and Reel (Alt: SMCJ130CA-E3/57T) RoHS: Compliant Min Qty: 850 Package Multiple: 850 Lead time: 11 Weeks, 0 Days Container: Reel 17000
  • 850 $0.1154
$0.1154 Buy Now
DISTI # 625-SMCJ130CA-E3
Mouser Electronics ESD Protection Diodes / TVS Diodes 1500W 130V Bidirect RoHS: Compliant 929
  • 1 $0.6000
  • 10 $0.4910
  • 100 $0.3370
  • 500 $0.2270
  • 850 $0.1950
  • 1,700 $0.1910
  • 9,350 $0.1870
$0.1870 / $0.6000 Buy Now
DISTI # E02:0323_00193326
Arrow Electronics TVS Diode Single Bi-Dir 130V 1.5KW 2-Pin SMC T/R Min Qty: 1700 Package Multiple: 850 Lead time: 11 Weeks Date Code: 2446 Europe - 13600
  • 1,700 $0.2171
  • 9,350 $0.2125
$0.2125 / $0.2171 Buy Now
DISTI # V36:1790_18779649
Arrow Electronics TVS Diode Single Bi-Dir 130V 1.5KW 2-Pin SMC T/R Min Qty: 1700 Package Multiple: 1700 Lead time: 11 Weeks Date Code: 2341 Americas - 5100
  • 1,700 $0.1906
$0.1906 Buy Now
DISTI # 88740247
Verical TVS Diode Single Bi-Dir 130V 1.5KW 2-Pin SMC T/R Min Qty: 1700 Package Multiple: 1700 Date Code: 2446 Americas - 13600
  • 1,700 $0.2095
$0.2095 Buy Now
DISTI # 71796754
Verical TVS Diode Single Bi-Dir 130V 1.5KW 2-Pin SMC T/R Min Qty: 1700 Package Multiple: 1700 Date Code: 2341 Americas - 5100
  • 1,700 $0.0579
$0.0579 Buy Now
Bristol Electronics   738
RFQ
DISTI # SMCJ130CA-E3/57T
IBS Electronics SMCJ SERIES 209 V 1500 W SURFACE MOUNT BI-DIRECTIONAL TVS DIODE - DO-214AB Min Qty: 850 Package Multiple: 1 10200
  • 850 $0.1534
  • 2,550 $0.1508
  • 4,250 $0.1495
  • 17,000 $0.1456
  • 25,500 $0.1443
$0.1443 / $0.1534 Buy Now
DISTI # SMCJ130CA-E3/57T
EBV Elektronik TVS Diode TRANSZORB SMCJ Bidirectional 130 V 209 V DO214AB SMC 2 Pins (Alt: SMCJ130CA-E3/57T) RoHS: Compliant Min Qty: 850 Package Multiple: 850 Lead time: 12 Weeks, 0 Days EBV - 0
Buy Now
LCSC 7.2A 209V 1.5kW 144V Bidirectional 130V DO-214AB(SMCJ) ESD and Surge Protection (TVS/ESD) ROHS 707
  • 1 $0.4527
  • 10 $0.3682
  • 30 $0.3320
  • 100 $0.2867
  • 500 $0.2671
  • 850 $0.2535
$0.2535 / $0.4527 Buy Now

Part Details for SMCJ130CA-E3/57T

SMCJ130CA-E3/57T CAD Models

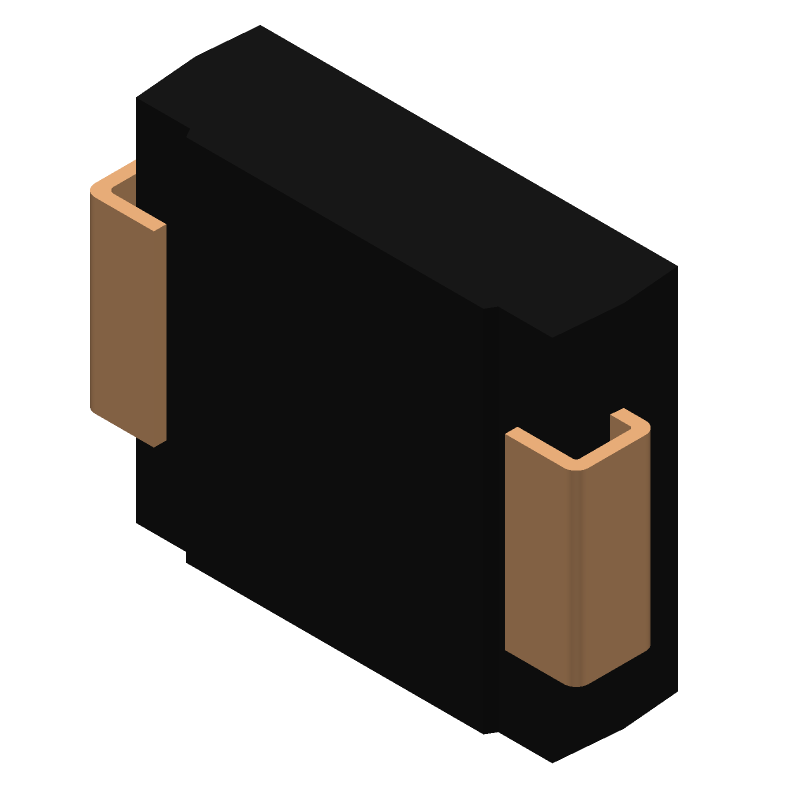

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SMCJ130CA-E3/57T Part Data Attributes

Parametric Data
SMCJ130CA-E3/57T Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
SMCJ130CA-E3/57T Vishay Intertechnologies Trans Voltage Suppressor Diode, 1500W, 130V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, DO-214AB, SMC, 2 PIN
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description DO-214AB, SMC, 2 PIN
Reach Compliance Code not_compliant
Factory Lead Time 11 Weeks
Samacsys Manufacturer Vishay
Additional Feature EXCELLENT CLAMPING CAPABILITY
Breakdown Voltage-Max 159 V
Breakdown Voltage-Min 144 V
Breakdown Voltage-Nom 151.5 V
Clamping Voltage-Max 209 V
Configuration SINGLE
Diode Element Material SILICON
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 Code DO-214AB
JESD-30 Code R-PDSO-C2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 1500 W
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity BIDIRECTIONAL
Power Dissipation-Max 6.5 W
Qualification Status Not Qualified
Reference Standard UL RECOGNIZED
Rep Pk Reverse Voltage-Max 130 V
Surface Mount YES
Technology AVALANCHE
Terminal Finish MATTE TIN
Terminal Form C BEND
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30

Alternate Parts for SMCJ130CA-E3/57T

This table gives cross-reference parts and alternative options found for SMCJ130CA-E3/57T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMCJ130CA-E3/57T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
SMCJ130CA Telefunken Microelectronics Gmbh Check for Price Transient Suppressor, SMCJ130CA-E3/57T vs SMCJ130CA
SMCJ130CA-TR STMicroelectronics Check for Price 1500 W, 130 V TVS in SMC SMCJ130CA-E3/57T vs SMCJ130CA-TR
SMCJ130CA-M3/57T Vishay Semiconductors Check for Price DIODE 1500 W, BIDIRECTIONAL, SILICON, TVS DIODE, DO-214AB, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMC, 2 PIN, Transient Suppressor SMCJ130CA-E3/57T vs SMCJ130CA-M3/57T
SMCJ130C-T Rectron Semiconductor Check for Price Trans Voltage Suppressor Diode, SMCJ130CA-E3/57T vs SMCJ130C-T
SMCJ130CA Vishay Intertechnologies Check for Price Trans Voltage Suppressor Diode, 1500W, 130V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, DO-214AB, SMC, 2 PIN SMCJ130CA-E3/57T vs SMCJ130CA
SMCJ130CA Taitron Components Inc Check for Price Trans Voltage Suppressor Diode, SMCJ130CA-E3/57T vs SMCJ130CA
SMCJ130C.TF Semtech Corporation Check for Price Trans Voltage Suppressor Diode, 1500W, Bidirectional, 1 Element, Silicon, DO-214AB SMCJ130CA-E3/57T vs SMCJ130C.TF
SMCJ130CA-E3/9AT Vishay Semiconductors Check for Price DIODE 1500 W, BIDIRECTIONAL, SILICON, TVS DIODE, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN, Transient Suppressor SMCJ130CA-E3/57T vs SMCJ130CA-E3/9AT
SMCJ130CA Galaxy Microelectronics Check for Price Surface Mount TVS Diode; Direction: Bidirectional; V(BR) Typ (V): 144V; PPK Max (W): 1500W; Condition: 10×1000us; VRWM Max (V): 130V; VBR Min (V): 144V; VBR Max (V): 159V; IR Max (uA): 5uA; VC Max (V): 209V; Package: SMC SMCJ130CA-E3/57T vs SMCJ130CA
SMCJ130CA MERITEK Electronics Corporation Check for Price Trans Voltage Suppressor Diode, 1500W, 130V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN SMCJ130CA-E3/57T vs SMCJ130CA
Part Number Manufacturer Composite Price Description Compare
SMCJ150CA/51-E3 Vishay Semiconductors Check for Price DIODE 1500 W, BIDIRECTIONAL, SILICON, TVS DIODE, DO-214AB, PLASTIC, SMC, 2 PIN, Transient Suppressor SMCJ130CA-E3/57T vs SMCJ150CA/51-E3
SMCJ150CA Secos Corporation Check for Price Trans Voltage Suppressor Diode, 1500W, 150V V(RWM), Bidirectional, 1 Element, Silicon, SMC, 2 PIN SMCJ130CA-E3/57T vs SMCJ150CA
SMCJ150CA.TF Semtech Corporation Check for Price Trans Voltage Suppressor Diode, 1500W, Bidirectional, 1 Element, Silicon, DO-214AB SMCJ130CA-E3/57T vs SMCJ150CA.TF
SMCJ150CA EIC Semiconductor Inc Check for Price Trans Voltage Suppressor Diode, 1500W, 150V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN SMCJ130CA-E3/57T vs SMCJ150CA
SMCJ150CA Sensitron Semiconductors Check for Price Trans Voltage Suppressor Diode, 1500W, 150V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, PLASTIC, SMC, 2 PIN SMCJ130CA-E3/57T vs SMCJ150CA
SMCJ150C.TB Semtech Corporation Check for Price Trans Voltage Suppressor Diode, 1500W, Bidirectional, 1 Element, Silicon, DO-214AB SMCJ130CA-E3/57T vs SMCJ150C.TB
SMCJ130CA-C Secos Corporation Check for Price Trans Voltage Suppressor Diode, 1500W, 130V V(RWM), Bidirectional, 1 Element, Silicon, SMC, 2 PIN SMCJ130CA-E3/57T vs SMCJ130CA-C
SMCJ150C/9 Vishay Semiconductors Check for Price Trans Voltage Suppressor Diode, 1500W, Bidirectional, 1 Element, Silicon, DO-214AB, PLASTIC, SMC, 2 PIN SMCJ130CA-E3/57T vs SMCJ150C/9
SMCJ150CA.TB Semtech Corporation Check for Price Trans Voltage Suppressor Diode, 1500W, Bidirectional, 1 Element, Silicon, DO-214AB SMCJ130CA-E3/57T vs SMCJ150CA.TB
SMCJ130CA Littelfuse Inc Check for Price Trans Voltage Suppressor Diode, 1500W, 130V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMCJ, 2 PIN SMCJ130CA-E3/57T vs SMCJ130CA

SMCJ130CA-E3/57T Related Parts

SMCJ130CA-E3/57T Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the SMCJ130CA-E3/57T is 260°C (500°F) for 10 seconds or less.

  • Yes, the SMCJ130CA-E3/57T is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.

  • The maximum power dissipation of the SMCJ130CA-E3/57T is 1500 W.

  • Yes, the SMCJ130CA-E3/57T is designed for high-reliability applications and meets the requirements of various industry standards, including AEC-Q101.

  • The operating temperature range of the SMCJ130CA-E3/57T is -55°C to 150°C.
