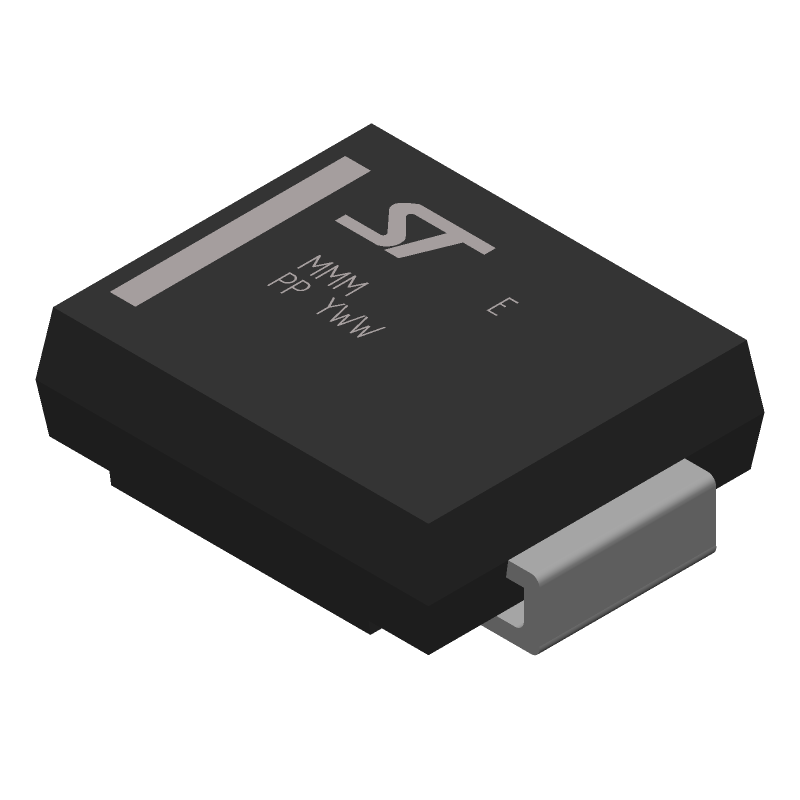

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SMCJ12A-TR by STMicroelectronics
Results Overview of SMCJ12A-TR by STMicroelectronics
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SMCJ12A-TR Information
SMCJ12A-TR by STMicroelectronics is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMCJ12A-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-SMCJ12A-TRCT-ND
|
DigiKey | TVS DIODE 12VWM 25.3VC SMC Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
875 In Stock |
|
$0.3720 / $1.1100 | Buy Now |
|
DISTI #
SMCJ12A-TR
|
Avnet Americas | Diode TVS Single Uni-Dir 12V 1.5KW 2-Pin SMC T/R - Tape and Reel (Alt: SMCJ12A-TR) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 13 Weeks, 0 Days Container: Reel | 82500 |
|
$0.3497 | Buy Now |
|
DISTI #
511-SMCJ12A-TR
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 1500W 12V Unidirect RoHS: Compliant | 896 |
|
$0.3720 / $1.1100 | Buy Now |
|
|
STMicroelectronics | 1500 W, 12 V TVS in SMC RoHS: Compliant Min Qty: 1 | 896 |
|
$0.4600 / $1.0900 | Buy Now |
|
DISTI #
SMCJ12A-TR
|
Avnet Silica | Diode TVS Single UniDir 12V 15KW 2Pin SMC TR (Alt: SMCJ12A-TR) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 14 Weeks, 0 Days | Silica - 17500 |
|
Buy Now | |
|
DISTI #
SMCJ12A-TR
|
EBV Elektronik | Diode TVS Single UniDir 12V 15KW 2Pin SMC TR (Alt: SMCJ12A-TR) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 14 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Vyrian | Diodes | 6065 |
|
RFQ |
Part Details for SMCJ12A-TR
SMCJ12A-TR CAD Models
SMCJ12A-TR Part Data Attributes
|
|
SMCJ12A-TR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
SMCJ12A-TR
STMicroelectronics
1500 W, 12 V TVS in SMC
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | DO-214AB | |
| Package Description | SMC, 2 PIN | |
| Pin Count | 2 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Breakdown Voltage-Min | 13.3 V | |
| Clamping Voltage-Max | 25.3 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AB | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 1500 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 6.5 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 12 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
Alternate Parts for SMCJ12A-TR
This table gives cross-reference parts and alternative options found for SMCJ12A-TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMCJ12A-TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SMCJ12A-13-F | Diodes Incorporated | $0.4820 | Trans Voltage Suppressor Diode, 1500W, 12V V(RWM), Unidirectional, 1 Element, Silicon, GREEN, PLASTIC, SMC, 2 PIN | SMCJ12A-TR vs SMCJ12A-13-F |
SMCJ12A-TR Frequently Asked Questions (FAQ)
-
The recommended footprint and land pattern for the SMCJ12A-TR can be found in the STMicroelectronics application note AN1231, which provides guidelines for PCB layout and assembly.
-
To ensure reliability in high-temperature applications, it is recommended to follow the derating curves provided in the datasheet, and to consider the maximum junction temperature (Tj) of 150°C. Additionally, ensure proper thermal management and heat dissipation in the system design.
-
The SMCJ12A-TR has an ESD protection level of ±30kV, which is compliant with the IEC 61000-4-2 standard.
-
Yes, the SMCJ12A-TR is AEC-Q101 qualified, which makes it suitable for use in automotive applications. However, it is recommended to consult with STMicroelectronics' automotive support team for specific requirements and validation.
-
The SMCJ12A-TR should be stored in a dry, cool place, away from direct sunlight and moisture. It is recommended to follow the ESD precautions and handling guidelines provided in the STMicroelectronics' packaging and storage application note.
