Diodes / Transient Suppressors / SMCJ1.5KE51A-TP
Datasheets
SMCJ1.5KE51A-TP by: Micro Commercial Components

Trans Voltage Suppressor Diode, 1500W, 43.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMCJ, 2 PIN

Part Details for SMCJ1.5KE51A-TP by Micro Commercial Components

Results Overview of SMCJ1.5KE51A-TP by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SMCJ1.5KE51A-TP Information

SMCJ1.5KE51A-TP by Micro Commercial Components is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for SMCJ1.5KE51A-TP

Part # Distributor Description Stock Price Buy
DISTI # SMCJ1.5KE51A-TPMSCT-ND
DigiKey TVS DIODE 43.6VWM 70.1V DO214AB Min Qty: 1 Lead time: 18 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 8281
In Stock
  • 1 $0.7100
  • 10 $0.4830
  • 100 $0.3160
  • 500 $0.2430
  • 1,000 $0.2216
  • 3,000 $0.2127
  • 6,000 $0.1477
$0.1477 / $0.7100 Buy Now
DISTI # 833-SMCJ1.5KE51A-TP
Mouser Electronics ESD Protection Diodes / TVS Diodes 70.1V 1500W 21.7A RoHS: Compliant 281
  • 1 $0.7100
  • 10 $0.4830
  • 100 $0.3160
  • 500 $0.2430
  • 1,000 $0.2220
  • 3,000 $0.2170
$0.2170 / $0.7100 Buy Now
Bristol Electronics   24520
RFQ

Part Details for SMCJ1.5KE51A-TP

SMCJ1.5KE51A-TP CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

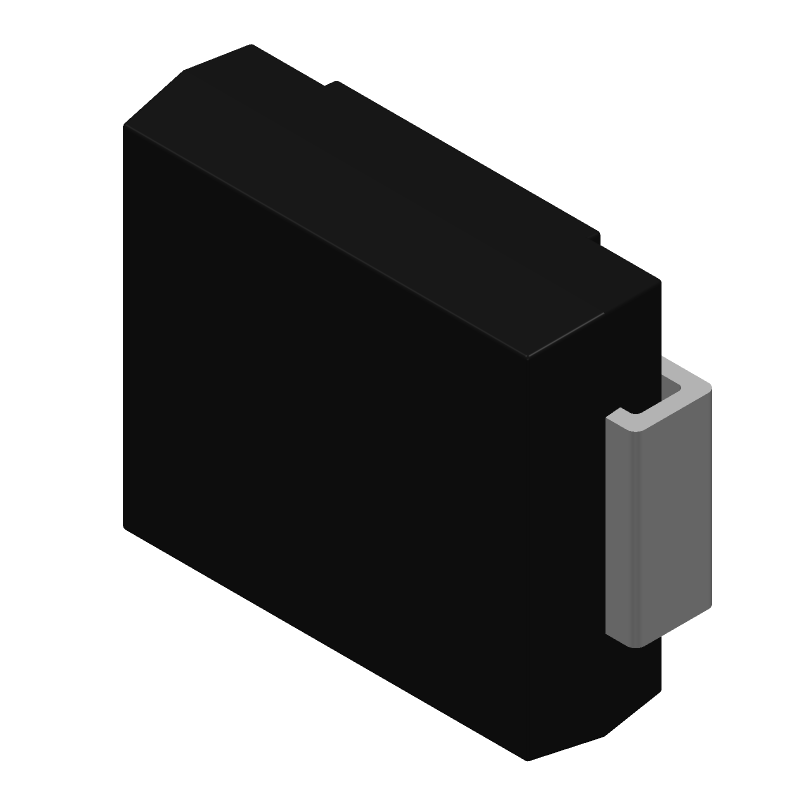

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SMCJ1.5KE51A-TP Part Data Attributes

Parametric Data
SMCJ1.5KE51A-TP Micro Commercial Components
Buy Now Datasheet
Compare Parts:
SMCJ1.5KE51A-TP Micro Commercial Components Trans Voltage Suppressor Diode, 1500W, 43.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMCJ, 2 PIN
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP
Part Package Code DO-214AB
Package Description 2 PIN
Pin Count 2
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Samacsys Manufacturer MCC
Additional Feature EXCELLENT CLAMPING CAPABILITY
Breakdown Voltage-Max 53.6 V
Breakdown Voltage-Min 48.5 V
Breakdown Voltage-Nom 51 V
Clamping Voltage-Max 70.1 V
Configuration SINGLE
Diode Element Material SILICON
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 Code DO-214AB
JESD-30 Code R-PDSO-C2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 1500 W
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 175 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Qualification Status Not Qualified
Reference Standard UL RECOGNIZED
Rep Pk Reverse Voltage-Max 43.6 V
Surface Mount YES
Technology AVALANCHE
Terminal Finish MATTE TIN
Terminal Form C BEND
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 10

Alternate Parts for SMCJ1.5KE51A-TP

This table gives cross-reference parts and alternative options found for SMCJ1.5KE51A-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMCJ1.5KE51A-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
1.5SMC51AHE3TRTS Fagor Electrónica Check for Price Trans Voltage Suppressor Diode, 1500W, 43.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN SMCJ1.5KE51A-TP vs 1.5SMC51AHE3TRTS
1.5SMC51ATRTS Fagor Electrónica Check for Price Trans Voltage Suppressor Diode, 1500W, 43.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN SMCJ1.5KE51A-TP vs 1.5SMC51ATRTS
1.5SMC51AHE3TRTB Fagor Electrónica Check for Price Trans Voltage Suppressor Diode, 1500W, 43.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN SMCJ1.5KE51A-TP vs 1.5SMC51AHE3TRTB
SMCJ1.5KE51AP Micro Commercial Components Check for Price Trans Voltage Suppressor Diode, 1500W, 43.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMCJ, 2 PIN SMCJ1.5KE51A-TP vs SMCJ1.5KE51AP
1.5SMC51A Bourns Inc Check for Price Trans Voltage Suppressor Diode, 1500W, 43.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN SMCJ1.5KE51A-TP vs 1.5SMC51A
1.5SMC51A-H Bourns Inc Check for Price Trans Voltage Suppressor Diode, 1500W, 43.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN SMCJ1.5KE51A-TP vs 1.5SMC51A-H
1.5SMC51ATRTB Fagor Electrónica Check for Price Trans Voltage Suppressor Diode, 1500W, 43.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN SMCJ1.5KE51A-TP vs 1.5SMC51ATRTB
SMCJ1.5KE51A Micro Commercial Components Check for Price Trans Voltage Suppressor Diode, 1500W, 43.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMCJ, 2 PIN SMCJ1.5KE51A-TP vs SMCJ1.5KE51A

SMCJ1.5KE51A-TP Related Parts

SMCJ1.5KE51A-TP Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for SMCJ1.5KE51A-TP is 260°C (500°F) for 10 seconds or less.

  • Yes, SMCJ1.5KE51A-TP is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the European Union's directive on the restriction of certain hazardous substances in electrical and electronic equipment.

  • The typical lead time for SMCJ1.5KE51A-TP is 8-12 weeks, but this may vary depending on the supplier, quantity, and other factors.

  • Yes, SMCJ1.5KE51A-TP is suitable for high-reliability applications, such as aerospace, defense, and medical devices, due to its high-quality construction and rigorous testing.

  • To prevent ESD damage, handle SMCJ1.5KE51A-TP with anti-static wrist straps, mats, or bags, and avoid touching the component's leads or body.
