Diodes / Transient Suppressors / SMCJ1.5KE18AQ-TP
Datasheets
SMCJ1.5KE18AQ-TP by: Micro Commercial Components

Trans Voltage Suppressor Diode,

Part Details for SMCJ1.5KE18AQ-TP by Micro Commercial Components

Results Overview of SMCJ1.5KE18AQ-TP by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SMCJ1.5KE18AQ-TP Information

SMCJ1.5KE18AQ-TP by Micro Commercial Components is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for SMCJ1.5KE18AQ-TP

Part # Distributor Description Stock Price Buy
DISTI # 353-SMCJ1.5KE18AQ-TPCT-ND
DigiKey TVS DIODE 15.3VWM 25.2V DO214AB Min Qty: 1 Lead time: 24 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 5990
In Stock
  • 1 $0.8300
  • 10 $0.7230
  • 100 $0.5000
  • 500 $0.4042
  • 1,000 $0.3630
  • 3,000 $0.3080
  • 6,000 $0.2960
  • 9,000 $0.2750
$0.2750 / $0.8300 Buy Now
DISTI # 833-SMCJ1.5KE18AQ-TP
Mouser Electronics ESD Protection Diodes / TVS Diodes RoHS: Compliant 3000
  • 1 $0.8300
  • 10 $0.7230
  • 100 $0.5000
  • 500 $0.4050
  • 1,000 $0.3630
  • 3,000 $0.3080
  • 6,000 $0.2960
  • 9,000 $0.2750
$0.2750 / $0.8300 Buy Now
DISTI # 71261272
Verical Diode TVS Single Uni-Dir 15.3V 1.5KW 2-Pin SMC T/R Automotive AEC-Q101 Min Qty: 3000 Package Multiple: 3000 Americas - 6000
  • 3,000 $0.2700
$0.2700 Buy Now
DISTI # 84392037
Verical Diode TVS Single Uni-Dir 15.3V 1.5KW 2-Pin SMC T/R Automotive AEC-Q101 Min Qty: 3000 Package Multiple: 3000 Americas - 3000
  • 3,000 $0.2700
$0.2700 Buy Now

Part Details for SMCJ1.5KE18AQ-TP

SMCJ1.5KE18AQ-TP CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

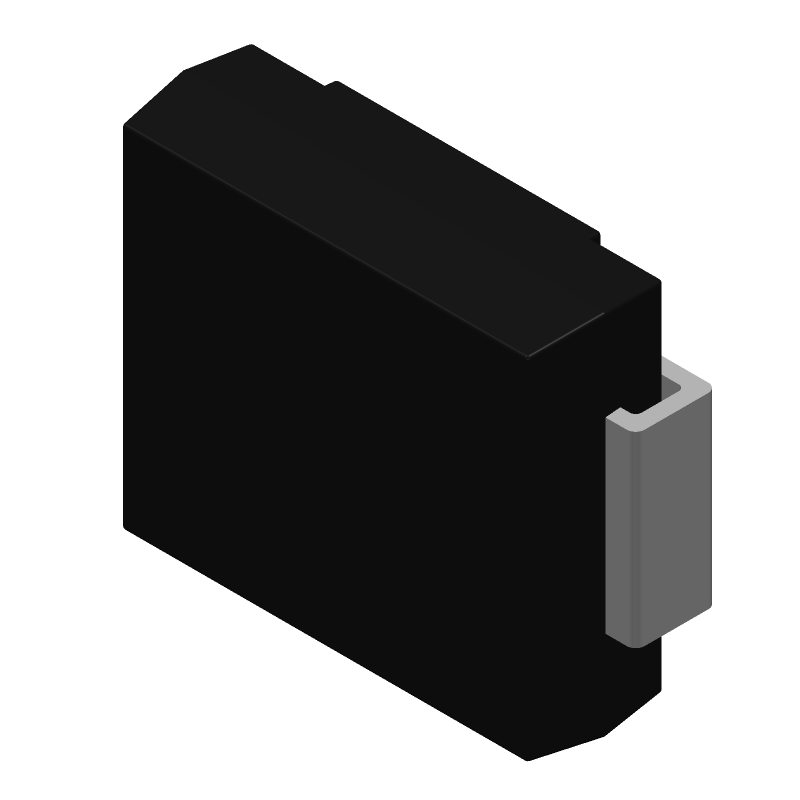

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SMCJ1.5KE18AQ-TP Part Data Attributes

Parametric Data
SMCJ1.5KE18AQ-TP Micro Commercial Components
Buy Now Datasheet
Compare Parts:
SMCJ1.5KE18AQ-TP Micro Commercial Components Trans Voltage Suppressor Diode,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP
Reach Compliance Code not_compliant
Samacsys Manufacturer MCC
Breakdown Voltage-Max 18.9 V
Breakdown Voltage-Min 17.1 V
Clamping Voltage-Max 25.2 V
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 1500 W
Rep Pk Reverse Voltage-Max 15.3 V
