Diodes / Transient Suppressors / SMCJ1.5KE18A-TP-HF
Datasheets
SMCJ1.5KE18A-TP-HF by: Micro Commercial Components

Trans Voltage Suppressor Diode, 1500W, 15.3V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN

Part Details for SMCJ1.5KE18A-TP-HF by Micro Commercial Components

Results Overview of SMCJ1.5KE18A-TP-HF by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SMCJ1.5KE18A-TP-HF Information

SMCJ1.5KE18A-TP-HF by Micro Commercial Components is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for SMCJ1.5KE18A-TP-HF

Part # Distributor Description Stock Price Buy
DISTI # 833-SMCJ15KE18ATPHF
Mouser Electronics ESD Protection Diodes / TVS Diodes 1500W Transient Voltage Suppressor RoHS: Compliant 0
  • 3,000 $0.2800
  • 6,000 $0.2610
  • 9,000 $0.2500
  • 24,000 $0.2330
$0.2330 / $0.2800 Order Now

Part Details for SMCJ1.5KE18A-TP-HF

SMCJ1.5KE18A-TP-HF CAD Models

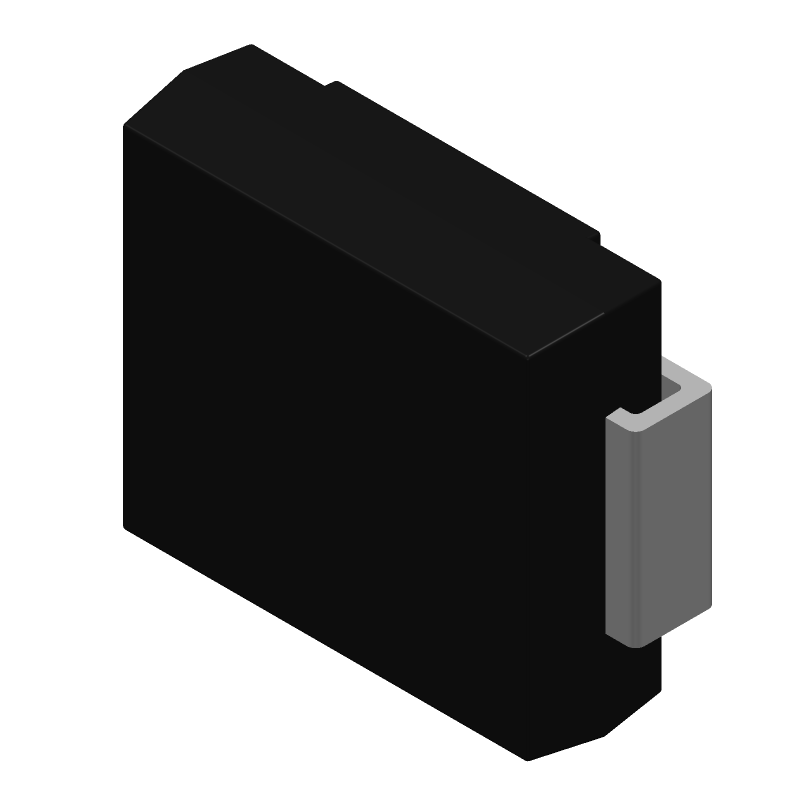

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SMCJ1.5KE18A-TP-HF Part Data Attributes

Parametric Data
SMCJ1.5KE18A-TP-HF Micro Commercial Components
Buy Now Datasheet
Compare Parts:
SMCJ1.5KE18A-TP-HF Micro Commercial Components Trans Voltage Suppressor Diode, 1500W, 15.3V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP
Package Description R-PDSO-C2
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Samacsys Manufacturer MCC
Additional Feature EXCELLENT CLAMPING CAPABILITY
Breakdown Voltage-Max 18.9 V
Breakdown Voltage-Min 17.1 V
Breakdown Voltage-Nom 18 V
Clamping Voltage-Max 25.5 V
Configuration SINGLE
Diode Element Material SILICON
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 Code DO-214AB
JESD-30 Code R-PDSO-C2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 1500 W
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 175 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Reference Standard UL RECOGNIZED
Rep Pk Reverse Voltage-Max 15.3 V
Surface Mount YES
Technology AVALANCHE
Terminal Finish Matte Tin (Sn)
Terminal Form C BEND
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 10

Alternate Parts for SMCJ1.5KE18A-TP-HF

This table gives cross-reference parts and alternative options found for SMCJ1.5KE18A-TP-HF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMCJ1.5KE18A-TP-HF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
1.5SMC18A BrightKing Inc Check for Price Trans Voltage Suppressor Diode, 1500W, 15.3V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN SMCJ1.5KE18A-TP-HF vs 1.5SMC18A
1.5SMC18AM6 Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 1500W, 15.3V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN SMCJ1.5KE18A-TP-HF vs 1.5SMC18AM6
SMCJ16A-M3/9AT Vishay Intertechnologies Check for Price Trans Voltage Suppressor Diode, 1500W, 16V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, DO-214AB, SMC, 2 PIN SMCJ1.5KE18A-TP-HF vs SMCJ16A-M3/9AT
SMCJ1.5KE18AP Micro Commercial Components Check for Price Trans Voltage Suppressor Diode, 1500W, 15.3V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMCJ, 2 PIN SMCJ1.5KE18A-TP-HF vs SMCJ1.5KE18AP
1.5SMC18A PanJit Semiconductor Check for Price Trans Voltage Suppressor Diode, 1500W, 15.3V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN SMCJ1.5KE18A-TP-HF vs 1.5SMC18A
1.5SMC18HE3TRTS Fagor Electrónica Check for Price Trans Voltage Suppressor Diode, 1500W, 14.5V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN SMCJ1.5KE18A-TP-HF vs 1.5SMC18HE3TRTS
1.5SMC18A Motorola Mobility LLC Check for Price 1500W, UNIDIRECTIONAL, SILICON, TVS DIODE, CASE 403-03, SMC, 2 PIN SMCJ1.5KE18A-TP-HF vs 1.5SMC18A
1.5SMCJ16A-T3-LF Won-Top Electronics Co Ltd Check for Price Trans Voltage Suppressor Diode, 1500W, 16V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN SMCJ1.5KE18A-TP-HF vs 1.5SMCJ16A-T3-LF
1.5SMC18A-E3/9AT Vishay Semiconductors Check for Price DIODE 1500 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN, Transient Suppressor SMCJ1.5KE18A-TP-HF vs 1.5SMC18A-E3/9AT
1.5SMC18HR6G Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 1500W, 14.5V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN SMCJ1.5KE18A-TP-HF vs 1.5SMC18HR6G
Part Number Manufacturer Composite Price Description Compare
1.5SMC18_R2_00001 PanJit Semiconductor Check for Price Trans Voltage Suppressor Diode, 1500W, 14.5V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN SMCJ1.5KE18A-TP-HF vs 1.5SMC18_R2_00001
SMCJ17 Semtech Corporation Check for Price Trans Voltage Suppressor Diode, 1500W, 17V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB SMCJ1.5KE18A-TP-HF vs SMCJ17
SMCG15A-M3/57T Vishay Intertechnologies Check for Price Trans Voltage Suppressor Diode, 1500W, 15V V(RWM), Unidirectional, 1 Element, Silicon, DO-215AB, SMCJ1.5KE18A-TP-HF vs SMCG15A-M3/57T
SMCJ16 MDE Semiconductor Inc Check for Price Trans Voltage Suppressor Diode, 1500W, 16V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC PACKAGE-2 SMCJ1.5KE18A-TP-HF vs SMCJ16
1.5SMC18A-LF-T13 ProTek Devices Check for Price Trans Voltage Suppressor Diode, SMCJ1.5KE18A-TP-HF vs 1.5SMC18A-LF-T13
1.5SMC18AHV6G Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, SMCJ1.5KE18A-TP-HF vs 1.5SMC18AHV6G
1.5SMCJ17A-T3 Won-Top Electronics Co Ltd Check for Price Trans Voltage Suppressor Diode, 1500W, 17V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, PLASTIC, SMC, 2 PIN SMCJ1.5KE18A-TP-HF vs 1.5SMCJ17A-T3
SMCJ15A-M3/9AT Vishay Semiconductors Check for Price DIODE 1500 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AB, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMC, 2 PIN, Transient Suppressor SMCJ1.5KE18A-TP-HF vs SMCJ15A-M3/9AT
SMCG15AHE3/9AT Vishay Semiconductors Check for Price DIODE 1500 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-215AB, ROHS COMPLIANT, PLASTIC, SMCG, 2 PIN, Transient Suppressor SMCJ1.5KE18A-TP-HF vs SMCG15AHE3/9AT
TFMCJ17 Rectron Semiconductor Check for Price Trans Voltage Suppressor Diode, 1500W, 17V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC PACKAGE-2 SMCJ1.5KE18A-TP-HF vs TFMCJ17
