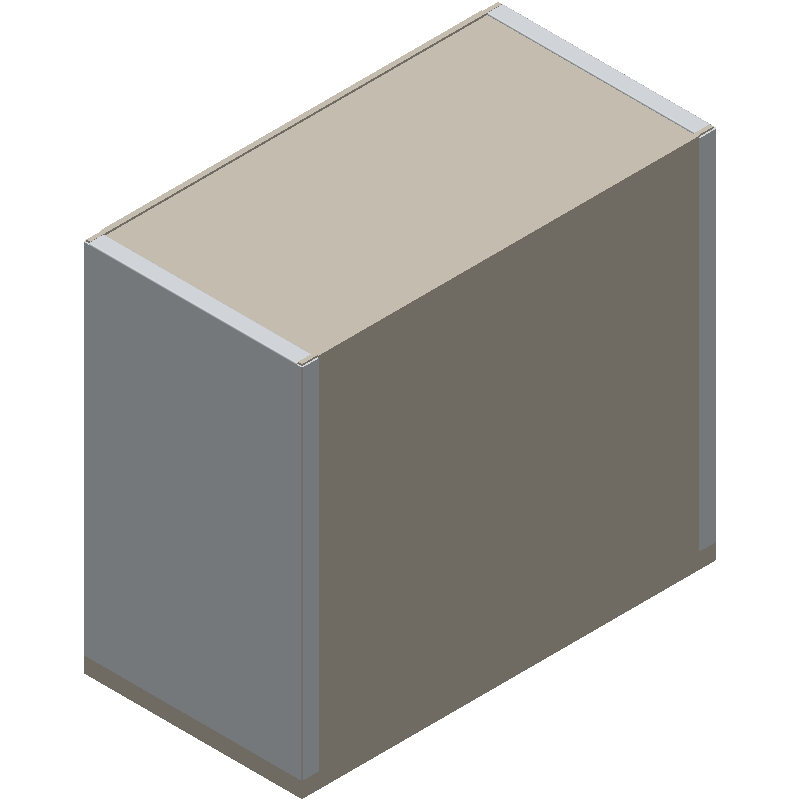

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SMC12.7105J50B31TR24 by KEMET Corporation
Results Overview of SMC12.7105J50B31TR24 by KEMET Corporation
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SMC12.7105J50B31TR24 Information
SMC12.7105J50B31TR24 by KEMET Corporation is a Film Capacitor.
Film Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for SMC12.7105J50B31TR24
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
399-12917-1-ND
|
DigiKey | CAP FILM 1UF 5% 50VDC SMD Min Qty: 1 Lead time: 36 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
695 In Stock |
|
$12.6097 / $22.4200 | Buy Now |
|
DISTI #
80-SMC127105J50B31
|
Mouser Electronics | Film Capacitors 50volts 1.0uF 5% LS 12.7mm RoHS: Compliant | 142 |
|
$12.6100 / $22.4200 | Buy Now |
|
DISTI #
SMC12.7105J50B31
|
TME | Capacitor: metallized PPS, 1uF, SMD, ±5%, 5045, -55÷125°C, 3V/μs Min Qty: 1 | 3 |
|
$10.4000 / $19.0500 | Buy Now |
|
DISTI #
SMC12.7105J50B31TR24
|
Avnet Abacus | Film Capacitor 1 uF 30 V 50 V 5 Metallized PPS 5045 127114 Metric - Tape and Reel (Alt: SMC12.7105J50B31TR24) RoHS: Compliant Min Qty: 600 Package Multiple: 600 Lead time: 25 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now |
Part Details for SMC12.7105J50B31TR24
SMC12.7105J50B31TR24 CAD Models
SMC12.7105J50B31TR24 Part Data Attributes
|
|
SMC12.7105J50B31TR24
KEMET Corporation
Buy Now
Datasheet
|
Compare Parts:
SMC12.7105J50B31TR24
KEMET Corporation
Film Capacitor, Polyphenylene Sulphide, 50V, 5% +Tol, 5% -Tol, 1uF, Surface Mount, 5045, CHIP, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KEMET ELECTRONICS CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.25.00.45 | |
| Factory Lead Time | 36 Weeks | |
| Samacsys Manufacturer | KEMET | |
| Capacitance | 1 µF | |
| Capacitor Type | FILM CAPACITOR | |
| Dielectric Material | POLYPHENYLENE SULPHIDE | |
| Height | 6.5 mm | |
| JESD-609 Code | e3 | |
| Length | 12.7 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Negative Tolerance | 5% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, 13 INCH | |
| Positive Tolerance | 5% | |
| Rated (AC) Voltage (URac) | 30 V | |
| Rated (DC) Voltage (URdc) | 50 V | |
| Size Code | 5045 | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Shape | WRAPAROUND | |
| Width | 11.5 mm |
Alternate Parts for SMC12.7105J50B31TR24
This table gives cross-reference parts and alternative options found for SMC12.7105J50B31TR24. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMC12.7105J50B31TR24, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| F125YR105J050V | KEMET Corporation | $15.4922 | Film Capacitor, Polyphenylene Sulphide, 50V, 1uF, 5045 | SMC12.7105J50B31TR24 vs F125YR105J050V |
| F125YR105J050Y | KEMET Corporation | Check for Price | Film Capacitor, Polyphenylene Sulphide, 50V, 1uF, 5045 | SMC12.7105J50B31TR24 vs F125YR105J050Y |
| SMC12.7105J50B31TV24 | KEMET Corporation | Check for Price | Film Capacitor, Polyphenylene Sulphide, 50V, 1uF, 5045 | SMC12.7105J50B31TR24 vs SMC12.7105J50B31TV24 |
| SMC12.7105J50B31BULK | KEMET Corporation | Check for Price | Film Capacitor, Polyphenylene Sulphide, 50V, 1uF, 5045 | SMC12.7105J50B31TR24 vs SMC12.7105J50B31BULK |
SMC12.7105J50B31TR24 Frequently Asked Questions (FAQ)
-
The recommended land pattern for SMC12.7105J50B31TR24 can be found in the KEMET Corporation's Surface Mount Ceramics Land Pattern document, which provides guidelines for pad layout and spacing to ensure reliable assembly and performance.
-
To minimize the risk of mechanical stress, it is recommended to follow proper PCB design and assembly guidelines, such as using a sturdy PCB material, avoiding excessive bending or flexing, and ensuring proper component mounting and soldering.
-
The maximum operating temperature range for SMC12.7105J50B31TR24 is -55°C to +125°C, as specified in the datasheet. However, it's essential to consider the derating curves and temperature coefficients to ensure reliable operation within the desired temperature range.
-
While SMC12.7105J50B31TR24 is a high-quality component, it's essential to evaluate its suitability for high-reliability or safety-critical applications. Engineers should consult with KEMET Corporation's application engineers and review relevant industry standards, such as MIL-PRF-123, to ensure the component meets the required specifications and standards.
-
To ensure the capacitor's electrical performance over time, it's crucial to follow proper storage and handling procedures, avoid excessive voltage, current, or temperature stress, and consider the component's aging characteristics, as specified in the datasheet.
