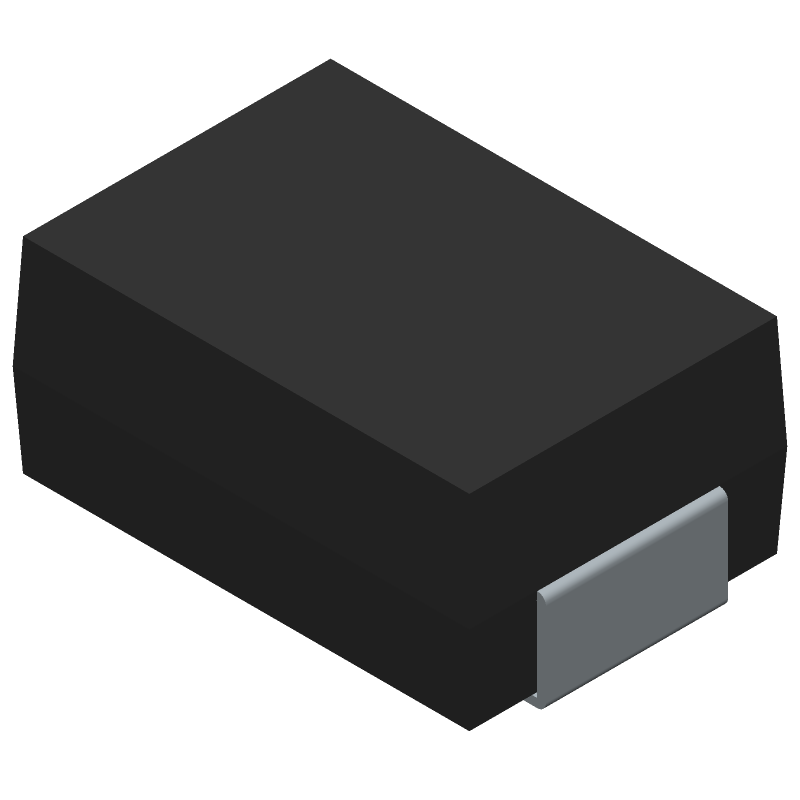

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SMBJ7.0CA-Q by Bourns Inc
Results Overview of SMBJ7.0CA-Q by Bourns Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SMBJ7.0CA-Q Information
SMBJ7.0CA-Q by Bourns Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMBJ7.0CA-Q
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
14AJ4282
|
Newark | Dio Tvs Vrwm 7.0V 600W Bidir Smb Aec-Q/Tape & Reel - 13" Reel |Bourns SMBJ7.0CA-Q RoHS: Not Compliant Min Qty: 12000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1200 / $0.1610 | Buy Now |
|
DISTI #
118-SMBJ7.0CA-QTR-ND
|
DigiKey | TVS DIODE 7VWM 12VC DO214AA Min Qty: 12000 Lead time: 16 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.1163 / $0.1217 | Buy Now |
|
DISTI #
SMBJ7.0CA-Q
|
Avnet Americas | Diode TVS Single Bi-Directional 7V 600W 2-Pin DO-214AA T/R - Tape and Reel (Alt: SMBJ7.0CA-Q) RoHS: Compliant Min Qty: 12000 Package Multiple: 3000 Lead time: 16 Weeks, 0 Days Container: Reel | 0 |
|
$0.1131 / $0.1245 | Buy Now |
|
DISTI #
652-SMBJ7.0CA-Q
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes SMBJ - CA 7V RoHS: Compliant | 0 |
|
$0.1160 | Order Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$0.1154 / $0.2418 | Buy Now |
|
DISTI #
SMBJ7.0CA-Q
|
TTI | ESD Protection Diodes / TVS Diodes SMBJ - CA 7V RoHS: Compliant pbFree: Pb-Free Min Qty: 12000 Package Multiple: 3000 Container: Reel | Americas - 0 |
|
$0.1200 / $0.1300 | Buy Now |
|
DISTI #
SMBJ7.0CA-Q
|
Avnet Abacus | Diode TVS Single BiDirectional 7V 600W 2Pin DO214AA TR - Tape and Reel (Alt: SMBJ7.0CA-Q) RoHS: Compliant Min Qty: 12000 Package Multiple: 3000 Lead time: 17 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now | |
|
|
Master Electronics | RoHS: Compliant | 0 |
|
$0.1154 / $0.2418 | Buy Now |
Part Details for SMBJ7.0CA-Q
SMBJ7.0CA-Q CAD Models
SMBJ7.0CA-Q Part Data Attributes
|
|
SMBJ7.0CA-Q
Bourns Inc
Buy Now
Datasheet
|
Compare Parts:
SMBJ7.0CA-Q
Bourns Inc
Trans Voltage Suppressor Diode, 600W, 7V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BOURNS INC | |
| Package Description | SMB, 2 PIN | |
| Reach Compliance Code | not_compliant | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | Bourns | |
| Additional Feature | PRSM-MIN | |
| Breakdown Voltage-Max | 8.6 V | |
| Breakdown Voltage-Min | 7.78 V | |
| Breakdown Voltage-Nom | 8.19 V | |
| Clamping Voltage-Max | 12 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AA | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 600 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Reference Standard | AEC-Q101; UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 7 V | |
| Reverse Current-Max | 200 µA | |
| Reverse Test Voltage | 7 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
