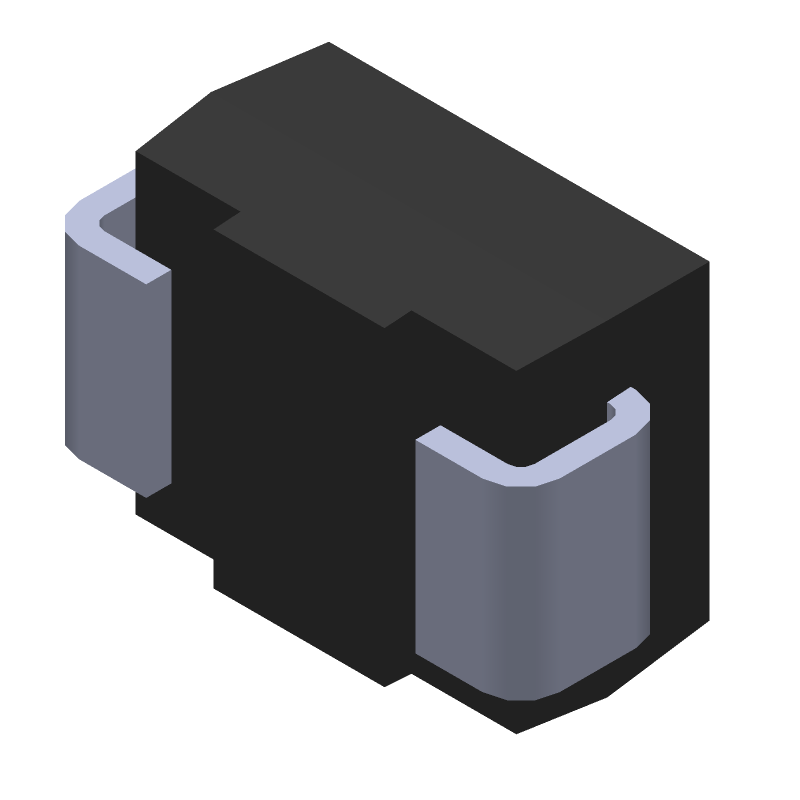

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SMBJ60CA by Semtech Corporation
Results Overview of SMBJ60CA by Semtech Corporation
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SMBJ60CA Information
SMBJ60CA by Semtech Corporation is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMBJ60CA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
600-SMBJ60CATR-ND
|
DigiKey | TVS DIODE 60VWM 96.8VC DO214AA Min Qty: 3000 Lead time: 34 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.2316 / $0.2769 | Buy Now |
|
DISTI #
SMBJ60CA
|
Avnet Americas | TVS Diode, Bidirectional, 60 V, 96.8 V, DO-214AA (SMB), 2 Pins - Tape and Reel (Alt: SMBJ60CA) Min Qty: 3000 Package Multiple: 3000 Lead time: 34 Weeks, 0 Days Container: Reel | 0 |
|
$0.2353 | Buy Now |
|
DISTI #
947-SMBJ60CA
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 1-Line 60V 6.2A TVS DO-214AA(SMB) RoHS: Compliant | 1830 |
|
$0.2310 / $1.1800 | Buy Now |
|
|
Future Electronics | RoHS: Not Compliant pbFree: No Min Qty: 3000 Package Multiple: 3000 | 0 |
|
$0.2350 / $0.2450 | Buy Now |
|
DISTI #
SMBJ60CA
|
Richardson RFPD | TVS RoHS: Not Compliant Min Qty: 1000 | 0 |
|
$0.2500 | Buy Now |
|
|
Braemac Americas-Symmetry | Min Qty: 1 | 0 |
|
$0.2261 / $0.2502 | Buy Now |
Part Details for SMBJ60CA
SMBJ60CA CAD Models
SMBJ60CA Part Data Attributes
|
|
SMBJ60CA
Semtech Corporation
Buy Now
Datasheet
|
Compare Parts:
SMBJ60CA
Semtech Corporation
Trans Voltage Suppressor Diode, 600W, 60V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SEMTECH CORP | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 34 Weeks | |
| Samacsys Manufacturer | SEMTECH | |
| Breakdown Voltage-Min | 66.7 V | |
| Breakdown Voltage-Nom | 70.2 V | |
| Clamping Voltage-Max | 96.8 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AA | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 600 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 1 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 60 V | |
| Reverse Current-Max | 5 µA | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL |
Alternate Parts for SMBJ60CA
This table gives cross-reference parts and alternative options found for SMBJ60CA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMBJ60CA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| P6SMBJ60C | World Products Inc | Check for Price | Trans Voltage Suppressor Diode, 600W, 60V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, PLASTIC PACKAGE-2 | SMBJ60CA vs P6SMBJ60C |
| SMBJ60CA | Kyocera AVX Components | Check for Price | Trans Voltage Suppressor Diode, 600W, 60V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, HALOGEN FREE, SMBJ, 2 PIN | SMBJ60CA vs SMBJ60CA |
| SMBJ60CA | JGD Semiconductors Co Ltd | Check for Price | Trans Voltage Suppressor Diode, 60V V(RWM), Bidirectional, | SMBJ60CA vs SMBJ60CA |
| P6SMBJ60C_R1_10001 | PanJit Semiconductor | Check for Price | Trans Voltage Suppressor Diode | SMBJ60CA vs P6SMBJ60C_R1_10001 |
| SMBJ60CA/2 | Vishay Semiconductors | Check for Price | Trans Voltage Suppressor Diode, 600W, Bidirectional, 1 Element, Silicon, DO-214AA, PLASTIC, SMB, 2 PIN | SMBJ60CA vs SMBJ60CA/2 |
| SMBJ60C | WEITRON INTERNATIONAL CO., LTD. | Check for Price | Transient Suppressor | SMBJ60CA vs SMBJ60C |
| P6SMBJ60C | PanJit Semiconductor | Check for Price | Trans Voltage Suppressor Diode, 600W, 60V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, ROHS COMPLIANT, PLASTIC, SMB, 2 PIN | SMBJ60CA vs P6SMBJ60C |
| SMBJ60C-GT3 | Sangdest Microelectronics (Nanjing) Co Ltd | Check for Price | Trans Voltage Suppressor Diode, 600W, 60V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, LEAD FREE, PLASTIC, SMB, 2 PIN | SMBJ60CA vs SMBJ60C-GT3 |
| SMBJ60CHE3/52 | Vishay Intertechnologies | Check for Price | Trans Voltage Suppressor Diode, 60V V(RWM), Bidirectional, | SMBJ60CA vs SMBJ60CHE3/52 |
| SMBJ60CA | Zowie Technology Corp | Check for Price | Trans Voltage Suppressor Diode, 60V V(RWM), Bidirectional | SMBJ60CA vs SMBJ60CA |
SMBJ60CA Frequently Asked Questions (FAQ)
-
A good PCB layout for the SMBJ60CA should ensure that the device is placed close to the protected circuit, with short leads and minimal inductance. The PCB should also have a solid ground plane and a separate layer for the high-frequency signals. Additionally, the device's pads should be connected to the PCB with a low-inductance path to minimize parasitic inductance.
-
To select the correct SMBJ60CA, consider the following factors: the maximum voltage and current of the circuit to be protected, the desired clamping voltage, and the package type (e.g., DO-214AA or SOD-123). Also, ensure that the device's power rating and thermal characteristics meet the requirements of your application.
-
The SMBJ60CA has an operating temperature range of -55°C to 150°C, but the device's performance and reliability may degrade at extreme temperatures. It's essential to consider the temperature range of your application and ensure that the device is operated within its recommended specifications.
-
Yes, the SMBJ60CA is suitable for high-frequency applications up to 1 GHz. However, the device's performance may be affected by parasitic inductance and capacitance at high frequencies. To minimize these effects, use a good PCB layout, and consider using a device with a lower capacitance and inductance, such as the SMBJ60CA-TP.
-
To ensure proper soldering, follow the recommended soldering profile and temperature range (260°C to 280°C) for the SMBJ60CA. Use a solder with a low melting point (e.g., Sn96.5Ag3Cu0.5) and a flux that is compatible with the device's package. Avoid overheating the device, and ensure that the solder joints are clean and free of oxidation.
