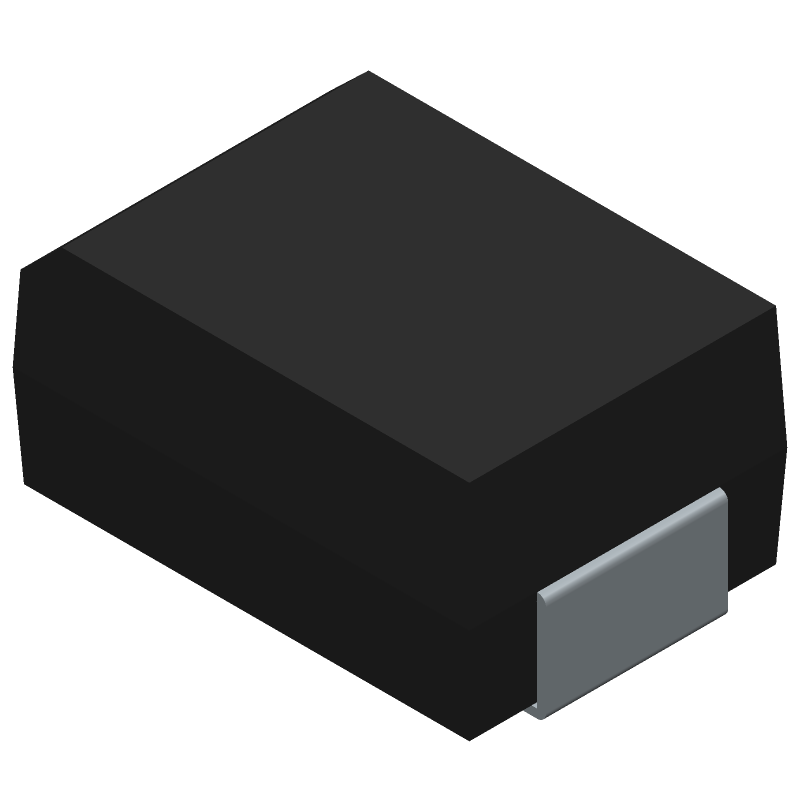

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SMBJ6.0A/TR13 by YAGEO Corporation
Results Overview of SMBJ6.0A/TR13 by YAGEO Corporation
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SMBJ6.0A/TR13 Information
SMBJ6.0A/TR13 by YAGEO Corporation is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| CLC001AJE-TR13 | Texas Instruments | Serial Digital Cable Driver with Adjustable Outputs 8-SOIC -40 to 85 | |
| CLC001AJE-TR13/NOPB | Texas Instruments | Serial Digital Cable Driver with Adjustable Outputs 8-SOIC -40 to 85 |
Price & Stock for SMBJ6.0A/TR13
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
66AJ8030
|
Newark | Tvs Diode, Unidir, 6V, 600W, Do-214Aa-2 Rohs Compliant: Yes |Yageo SMBJ6.0A/TR13 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1890 |
|
$0.1200 / $0.4060 | Buy Now |
|
DISTI #
13-SMBJ6.0A/TR13CT-ND
|
DigiKey | TVS DIODE 6VWM 10.3VC DO214AA Min Qty: 1 Lead time: 31 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
7464 In Stock |
|
$0.0503 / $0.2700 | Buy Now |
|
DISTI #
SMBJ6.0A/TR13
|
Avnet Americas | Transient Voltage Suppressor Uni-Directional 6V 600W 2-Pin DO-214AA T/R - Tape and Reel (Alt: SMBJ6.0A/TR13) RoHS: Compliant Min Qty: 30000 Package Multiple: 3000 Lead time: 18 Weeks, 0 Days Container: Reel | 0 |
|
$0.0504 / $0.0515 | Buy Now |
|
DISTI #
603-SMBJ6.0A/TR13
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes SMBJ - A 6V RoHS: Compliant | 21746 |
|
$0.0520 / $0.2700 | Buy Now |
|
DISTI #
SMBJ6.0A/TR13
|
TTI | ESD Protection Diodes / TVS Diodes SMBJ - A 6V RoHS: Compliant pbFree: Pb-Free Min Qty: 30000 Package Multiple: 3000 Container: Reel | Americas - 0 |
|
$0.0400 / $0.0410 | Buy Now |
|
DISTI #
SMBJ6.0A/TR13
|
Avnet Abacus | Transient Voltage Suppressor UniDirectional 6V 600W 2Pin DO214AA TR (Alt: SMBJ6.0A/TR13) RoHS: Compliant Min Qty: 30000 Package Multiple: 3000 Lead time: 24 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
Cytech Systems Limited | TVS DIODE 6VWM 10.3VC DO214AA | 6000 |
|
RFQ |
Part Details for SMBJ6.0A/TR13
SMBJ6.0A/TR13 CAD Models
SMBJ6.0A/TR13 Part Data Attributes
|
|
SMBJ6.0A/TR13
YAGEO Corporation
Buy Now
Datasheet
|
Compare Parts:
SMBJ6.0A/TR13
YAGEO Corporation
Trans Voltage Suppressor Diode,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | YAGEO CORP | |
| Package Description | SMB, 2 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 18 Weeks | |
| Date Of Intro | 2019-04-29 | |
| Samacsys Manufacturer | YAGEO | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY, PRSM-MIN, UL CERTIFIED | |
| Breakdown Voltage-Max | 7.37 V | |
| Breakdown Voltage-Min | 6.67 V | |
| Breakdown Voltage-Nom | 7.02 V | |
| Clamping Voltage-Max | 10.3 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AA | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 600 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 5 W | |
| Reference Standard | UL CERTIFIED | |
| Rep Pk Reverse Voltage-Max | 6 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 |
Alternate Parts for SMBJ6.0A/TR13
This table gives cross-reference parts and alternative options found for SMBJ6.0A/TR13. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMBJ6.0A/TR13, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MASMBJ6.0AE3 | Microchip Technology Inc | $5.4078 | Trans Voltage Suppressor Diode, 600W, 6V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA | SMBJ6.0A/TR13 vs MASMBJ6.0AE3 |
| SMBJ6.0A | STMicroelectronics | Check for Price | 4000W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AA, ROHS COMPLIANT, PLASTIC, SMB, 2 PIN | SMBJ6.0A/TR13 vs SMBJ6.0A |
| SMBJ6.0 | FCI Semiconductor | Check for Price | Trans Voltage Suppressor Diode, 6V V(RWM), Unidirectional | SMBJ6.0A/TR13 vs SMBJ6.0 |
| SMBJ6.0A | SPC Multicomp | Check for Price | Trans Voltage Suppressor Diode, 6V V(RWM), Unidirectional | SMBJ6.0A/TR13 vs SMBJ6.0A |
| SMBJ6.0 | BrightKing Inc | Check for Price | Trans Voltage Suppressor Diode, 6V V(RWM), Unidirectional, | SMBJ6.0A/TR13 vs SMBJ6.0 |
| SMBJ6.0A | PRO-AN Electronic Co Ltd | Check for Price | Trans Voltage Suppressor Diode, 6V V(RWM), Unidirectional | SMBJ6.0A/TR13 vs SMBJ6.0A |
| SMBJ6.0A-E3/52 | Vishay Semiconductors | Check for Price | DIODE 600 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AA, ROHS COMPLIANT, PLASTIC, SMBJ, 2 PIN, Transient Suppressor | SMBJ6.0A/TR13 vs SMBJ6.0A-E3/52 |
| MXSMBJ6.0A | Microchip Technology Inc | Check for Price | Trans Voltage Suppressor Diode, 600W, 6V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA | SMBJ6.0A/TR13 vs MXSMBJ6.0A |
| SMBJ6.0A/TR13 | Microsemi Corporation | Check for Price | Trans Voltage Suppressor Diode, 600W, 6V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, PLASTIC, SMBJ, 2 PIN | SMBJ6.0A/TR13 vs SMBJ6.0A/TR13 |
| SMBJ6.0A-M3/52 | Vishay Semiconductors | Check for Price | DIODE 600 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AA, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMB, 2 PIN, Transient Suppressor | SMBJ6.0A/TR13 vs SMBJ6.0A-M3/52 |
SMBJ6.0A/TR13 Frequently Asked Questions (FAQ)
-
The recommended land pattern for SMBJ6.0A/TR13 is a rectangular pad with a size of 1.5mm x 0.8mm, with a solder mask opening of 1.2mm x 0.5mm. This ensures proper soldering and thermal dissipation.
-
While SMBJ6.0A/TR13 has a maximum operating temperature of 150°C, it's not recommended to use it in high-temperature environments above 125°C for extended periods. This may affect the component's reliability and lifespan.
-
To handle the ESD sensitivity of SMBJ6.0A/TR13, follow proper ESD handling procedures, such as using an ESD wrist strap, ESD mat, and ESD-safe packaging. Also, ensure that the component is not exposed to electrostatic discharge during assembly and testing.
-
Store SMBJ6.0A/TR13 in a dry, cool place with a temperature range of 5°C to 30°C and relative humidity below 60%. Avoid storing the component in direct sunlight or near heat sources.
-
While SMBJ6.0A/TR13 is designed to withstand normal vibration, it's not recommended to use it in high-vibration environments above 10G. This may cause the component to detach from the PCB or compromise its electrical performance.
