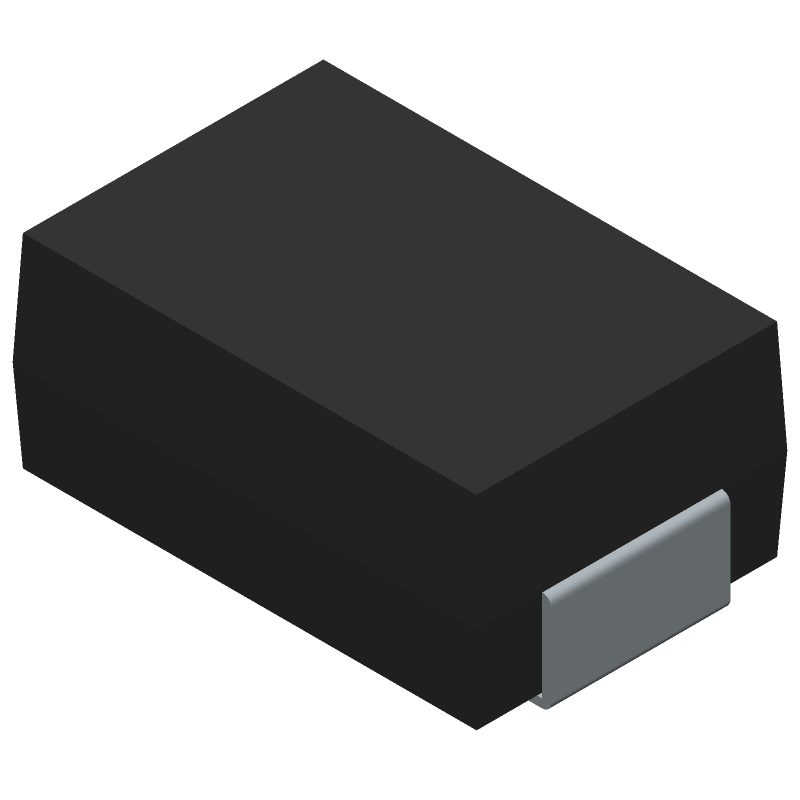

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SMBJ5.0CA by Kyocera AVX Components
Results Overview of SMBJ5.0CA by Kyocera AVX Components
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SMBJ5.0CA Information
SMBJ5.0CA by Kyocera AVX Components is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMBJ5.0CA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
64AH8608
|
Newark | Tvs Diode, 600W, 5V, Bidir, Do-214Aa, Product Range:Transil Smbj Series, Tvs Polarity:Bidirectional, Reverse Stand-Off Voltage Vrwm:5V, Clamping Voltage Vc Max:9.2V, Diode Case Style:Do-214Aa, No. Of Pins:2Pins, Breakdown Voltage Rohs Compliant: Yes |Kyocera Avx SMBJ5.0CA RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2750 |
|
$0.1540 / $0.4800 | Buy Now |
|
DISTI #
45W3852
|
Newark | Transient Voltage Suppressor, Tvs, Smbj Series, Bidirectional, 5 V, Do-214Aa, 2, 6.4 V Rohs Compliant: Yes |Kyocera Avx SMBJ5.0CA RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1090 / $0.1770 | Buy Now |
|
DISTI #
478-7071-1-ND
|
DigiKey | TVS DIODE 5VWM 9.2VC SMB Min Qty: 1 Lead time: 25 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
3658 In Stock |
|
$0.1050 / $0.4800 | Buy Now |
|
DISTI #
SMBJ5.0CA
|
Avnet Americas | Diode TVS Single Bi-Dir 5V 600W 2-Pin SMBJ - Tape and Reel (Alt: SMBJ5.0CA) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 25 Weeks, 0 Days Container: Reel | 0 |
|
$0.1008 / $0.1029 | Buy Now |
|
DISTI #
581-SMBJ5.0CA
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes TVS DIODES RoHS: Compliant | 6692 |
|
$0.1050 / $0.4800 | Buy Now |
|
DISTI #
SMBJ5.0CA
|
Avnet Abacus | Diode TVS Single BiDir 5V 600W 2Pin SMBJ (Alt: SMBJ5.0CA) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 27 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for SMBJ5.0CA
SMBJ5.0CA CAD Models
SMBJ5.0CA Part Data Attributes
|
|
SMBJ5.0CA
Kyocera AVX Components
Buy Now
Datasheet
|
Compare Parts:
SMBJ5.0CA
Kyocera AVX Components
Trans Voltage Suppressor Diode, 600W, 5V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, HALOGEN FREE, SMBJ, 2 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KYOCERA AVX COMPONENTS CORP | |
| Part Package Code | DO-214AA | |
| Pin Count | 2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 25 Weeks | |
| Samacsys Manufacturer | Kyocera AVX | |
| Additional Feature | HIGH RELIABILITY | |
| Breakdown Voltage-Max | 7 V | |
| Breakdown Voltage-Min | 6.4 V | |
| Breakdown Voltage-Nom | 6.7 V | |
| Clamping Voltage-Max | 9.2 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AA | |
| JESD-30 Code | R-PDSO-C2 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 600 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 5 W | |
| Rep Pk Reverse Voltage-Max | 5 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL |
Alternate Parts for SMBJ5.0CA
This table gives cross-reference parts and alternative options found for SMBJ5.0CA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMBJ5.0CA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SMBJ5.0C | MERITEK Electronics Corporation | Check for Price | Trans Voltage Suppressor Diode, | SMBJ5.0CA vs SMBJ5.0C |
| SMBJ5.0CA/TR13 | Microchip Technology Inc | Check for Price | Trans Voltage Suppressor Diode, 600W, 5V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA | SMBJ5.0CA vs SMBJ5.0CA/TR13 |
| MXLSMBJ5.0CA | Microchip Technology Inc | Check for Price | Trans Voltage Suppressor Diode, 600W, 5V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA | SMBJ5.0CA vs MXLSMBJ5.0CA |
| SMBJ5.0CA | Galaxy Microelectronics | Check for Price | Surface Mount TVS Diode; Direction: Bidirectional; V(BR) Typ (V): 6.4V; PPK Max (W): 600W; Condition: 10×1000us; VRWM Max (V): 5V; VBR Min (V): 6.4V; VBR Max (V): 7.07V; IR Max (uA): 5uA; VC Max (V): 9.2V; Package: SMB | SMBJ5.0CA vs SMBJ5.0CA |
| SMBJ5.0CA-M3/5B | Vishay Semiconductors | Check for Price | DIODE 600 W, BIDIRECTIONAL, SILICON, TVS DIODE, DO-214AA, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMB, 2 PIN, Transient Suppressor | SMBJ5.0CA vs SMBJ5.0CA-M3/5B |
| SMBJ5.0CA | FCI Semiconductor | Check for Price | Trans Voltage Suppressor Diode, 600W, 5V V(RWM), Bidirectional, 1 Element, Silicon, SMB, 2 PIN | SMBJ5.0CA vs SMBJ5.0CA |
| SMBJ5.0CA | SPC Multicomp | Check for Price | Trans Voltage Suppressor Diode, 600W, 5V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, PLASTIC, SMB, 2 PIN | SMBJ5.0CA vs SMBJ5.0CA |
| SMBJ5.0CA-13-F | Diodes Incorporated | $0.1492 | Trans Voltage Suppressor Diode, 600W, 5V V(RWM), Bidirectional, 1 Element, Silicon, SMB, 2 PIN | SMBJ5.0CA vs SMBJ5.0CA-13-F |
| SMBJ5.0C | Littelfuse Inc | Check for Price | Trans Voltage Suppressor Diode, 600W, 5V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMBJ, 2 PIN | SMBJ5.0CA vs SMBJ5.0C |
| SMBJ5.0CA/TR7 | Microsemi Corporation | Check for Price | Trans Voltage Suppressor Diode, 600W, 5V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, PLASTIC, SMBJ, 2 PIN | SMBJ5.0CA vs SMBJ5.0CA/TR7 |
SMBJ5.0CA Frequently Asked Questions (FAQ)
-
The recommended land pattern for SMBJ5.0CA is a rectangular pad with a size of 1.5mm x 0.8mm, with a solder mask clearance of 0.2mm. The pad should be centered on the component and have a non-solder mask defined (NSMD) pad shape.
-
To handle thermal considerations for SMBJ5.0CA, ensure good thermal conduction by using a thermal via or a thermal pad on the PCB. Also, consider using a heat sink or a thermal interface material (TIM) to improve heat dissipation.
-
The maximum operating temperature for SMBJ5.0CA is 150°C, with a derating of 1.33V per °C above 25°C. It's essential to ensure the device operates within the recommended temperature range to maintain its performance and reliability.
-
Yes, SMBJ5.0CA can be used in high-frequency applications up to 1 GHz. However, it's essential to consider the device's parasitic inductance and capacitance, as well as the PCB layout, to minimize signal degradation and ensure optimal performance.
-
To ensure the reliability of SMBJ5.0CA in a humid environment, consider applying a conformal coating to the PCB, using a moisture-resistant packaging, and following the recommended storage and handling procedures to prevent moisture absorption.
