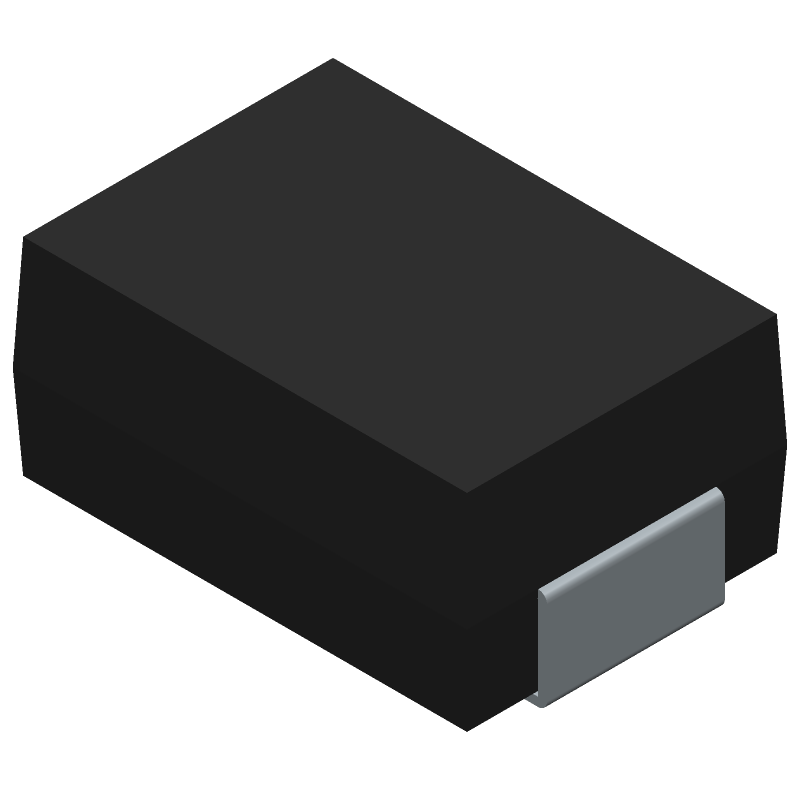

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SMBJ36CA by SPC Multicomp
Results Overview of SMBJ36CA by SPC Multicomp
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SMBJ36CA Information
SMBJ36CA by SPC Multicomp is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Part Details for SMBJ36CA
SMBJ36CA CAD Models
SMBJ36CA Part Data Attributes
|
|
SMBJ36CA
SPC Multicomp
Buy Now
Datasheet
|
Compare Parts:
SMBJ36CA
SPC Multicomp
Trans Voltage Suppressor Diode, 36V V(RWM), Bidirectional
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MULTICOMP PRO | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | Multicomp Pro | |
| Breakdown Voltage-Nom | 42.1 V | |
| Clamping Voltage-Max | 58.1 V | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AA | |
| JESD-30 Code | R-PDSO-C2 | |
| Number of Terminals | 2 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Polarity | BIDIRECTIONAL | |
| Rep Pk Reverse Voltage-Max | 36 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL |
Alternate Parts for SMBJ36CA
This table gives cross-reference parts and alternative options found for SMBJ36CA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMBJ36CA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SMBJ36CA | Yangzhou Yangjie Electronics Co Ltd | Check for Price | Trans Voltage Suppressor Diode, 36V V(RWM), Bidirectional | SMBJ36CA vs SMBJ36CA |
| SMBJ36CA | Concord Semiconductor Corp | Check for Price | Trans Voltage Suppressor Diode, 36V V(RWM), Bidirectional, | SMBJ36CA vs SMBJ36CA |
| SMBJ36C | Microsemi Corporation | Check for Price | Trans Voltage Suppressor Diode, 600W, 36V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, PLASTIC, SMBJ, 2 PIN | SMBJ36CA vs SMBJ36C |
| SMBJ36CA | SynSemi Inc | Check for Price | Transient Suppressor, | SMBJ36CA vs SMBJ36CA |
| SMBJ36CA | Telefunken Microelectronics Gmbh | Check for Price | Transient Suppressor, | SMBJ36CA vs SMBJ36CA |
| SMBJ36C | BrightKing Inc | Check for Price | Trans Voltage Suppressor Diode, 36V V(RWM), Bidirectional, | SMBJ36CA vs SMBJ36C |
| MASMBJ36CA | Microchip Technology Inc | $5.8376 | Trans Voltage Suppressor Diode, 600W, 36V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA | SMBJ36CA vs MASMBJ36CA |
| SMBJ36C | MDE Semiconductor Inc | Check for Price | Transient Suppressor | SMBJ36CA vs SMBJ36C |
| SMBJ36CA-TP | Micro Commercial Components | Check for Price | Trans Voltage Suppressor Diode, 600W, 36V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, ROHS COMPLIANT, PLASTIC, SMB, 2 PIN | SMBJ36CA vs SMBJ36CA-TP |
SMBJ36CA Frequently Asked Questions (FAQ)
-
The recommended footprint and land pattern for SMBJ36CA can be found in the IPC-7351 standard or in the manufacturer's application notes. A typical footprint consists of a rectangular pad with a size of 2.5mm x 1.5mm and a solder mask clearance of 0.2mm.
-
To ensure the reliability of the SMBJ36CA in high-temperature applications, it is recommended to follow the manufacturer's derating guidelines, use a suitable thermal interface material, and ensure good thermal conduction to a heat sink or PCB ground plane.
-
The SMBJ36CA is a TVS diode designed for transient voltage suppression, and it may not be suitable for high-frequency circuits. The device's parasitic capacitance and inductance may affect the circuit's performance at high frequencies. It is recommended to consult the manufacturer's application notes or use a TVS diode specifically designed for high-frequency applications.
-
To select the correct SMBJ36CA variant, consider the following factors: working voltage, peak pulse current, and response time. Choose a device with a working voltage that matches or exceeds the maximum voltage in your application, and a peak pulse current that is higher than the expected surge current.
-
The typical lead time and MOQ (Minimum Order Quantity) for SMBJ36CA may vary depending on the supplier, region, and availability. It is recommended to check with the manufacturer or authorized distributors for the latest information on lead time and MOQ.
