Part Details for SMBJ33CA-M3/5B by Vishay Intertechnologies
Results Overview of SMBJ33CA-M3/5B by Vishay Intertechnologies
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SMBJ33CA-M3/5B Information
SMBJ33CA-M3/5B by Vishay Intertechnologies is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMBJ33CA-M3/5B
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
53T2620
|
Newark | 600W,33V 5%,bidir, smb Tvs |Vishay SMBJ33CA-M3/5B RoHS: Not Compliant Min Qty: 9600 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2170 / $0.3160 | Buy Now |
|
DISTI #
SMBJ33CA-M3/5B
|
Avnet Americas | 600W,33V 5%,BIDIR,SMB TVS - Tape and Reel (Alt: SMBJ33CA-M3/5B) RoHS: Compliant Min Qty: 9600 Package Multiple: 3200 Lead time: 11 Weeks, 0 Days Container: Reel | 0 |
|
$0.1843 / $0.1882 | Buy Now |
|
DISTI #
78-SMBJ33CAM35B
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 33V 800W Bidir TransZorb 5% Tol RoHS: Compliant | 0 |
|
$0.1910 / $0.9500 | Order Now |
|
|
Bristol Electronics | 9229 |
|
RFQ | ||
|
DISTI #
SMBJ33CA-M3/5B
|
TTI | ESD Protection Diodes / TVS Diodes 33V 800W Bidir TransZorb 5% Tol RoHS: Compliant pbFree: Pb-Free Min Qty: 9600 Package Multiple: 3200 Container: Reel | Americas - 0 |
|
$0.2380 / $0.2580 | Buy Now |
|
DISTI #
SMBJ33CA-M3/5B
|
EBV Elektronik | 600W33V 5BIDIRSMB TVS (Alt: SMBJ33CA-M3/5B) RoHS: Compliant Min Qty: 3200 Package Multiple: 3200 Lead time: 12 Weeks, 0 Days | EBV - 6400 |
|
Buy Now | |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 3200 | 6400 |
|
$0.3231 / $0.3500 | Buy Now |
Part Details for SMBJ33CA-M3/5B

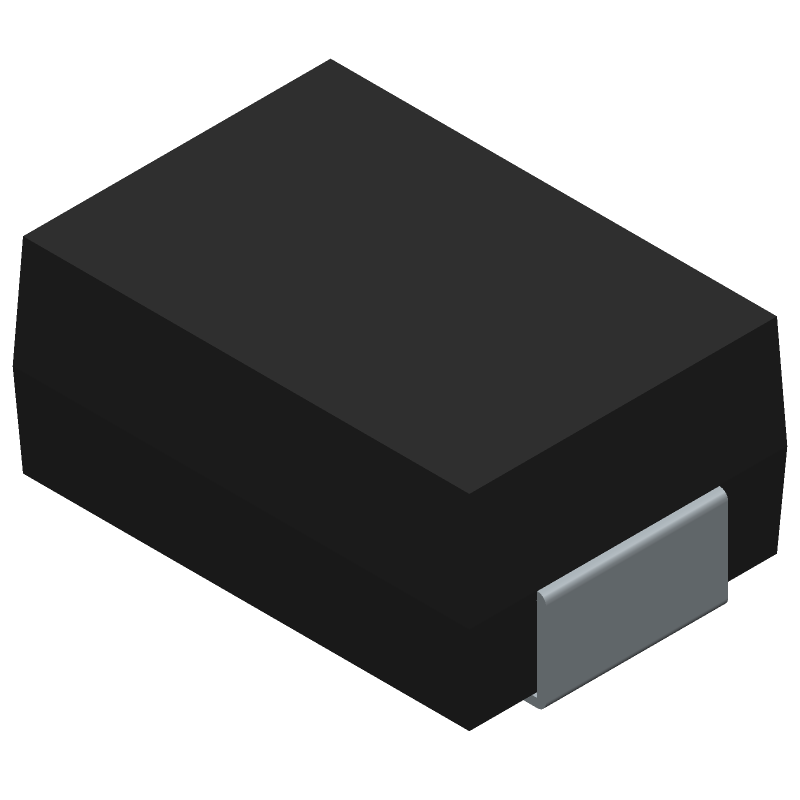

SMBJ33CA-M3/5B CAD Models
SMBJ33CA-M3/5B Part Data Attributes
|
|
SMBJ33CA-M3/5B
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
SMBJ33CA-M3/5B
Vishay Intertechnologies
Trans Voltage Suppressor Diode, 600W, 33V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | SMB, 2 PIN | |
| Reach Compliance Code | not_compliant | |
| Factory Lead Time | 11 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY, UL RECOGNIZED | |
| Breakdown Voltage-Max | 40.6 V | |
| Breakdown Voltage-Min | 36.7 V | |
| Breakdown Voltage-Nom | 38.65 V | |
| Clamping Voltage-Max | 53.3 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AA | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 600 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 5 W | |
| Reference Standard | UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 33 V | |
| Reverse Current-Max | 1 µA | |
| Reverse Test Voltage | 33 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for SMBJ33CA-M3/5B
This table gives cross-reference parts and alternative options found for SMBJ33CA-M3/5B. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMBJ33CA-M3/5B, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MASMBJ33CA | Microchip Technology Inc | $5.8376 | Trans Voltage Suppressor Diode, 600W, 33V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA | SMBJ33CA-M3/5B vs MASMBJ33CA |
| SMBJ33CA | Sensitron Semiconductors | Check for Price | Trans Voltage Suppressor Diode, 600W, 33V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, PLASTIC, SMB, 2 PIN | SMBJ33CA-M3/5B vs SMBJ33CA |
| SMBJ33C | ProTek Devices | Check for Price | Trans Voltage Suppressor Diode, 600W, Bidirectional, 1 Element, Silicon, DO-214AA | SMBJ33CA-M3/5B vs SMBJ33C |
| SMBJ33CA | Vishay Intertechnologies | Check for Price | Trans Voltage Suppressor Diode, 33V V(RWM), Bidirectional, | SMBJ33CA-M3/5B vs SMBJ33CA |
| SMBJ33C | Kuwait Semiconductor Co Ltd | Check for Price | Trans Voltage Suppressor Diode, 33V V(RWM), Bidirectional | SMBJ33CA-M3/5B vs SMBJ33C |
| SMBJ33C | Diodes Incorporated | Check for Price | Trans Voltage Suppressor Diode, 400W, 33V V(RWM), Bidirectional, 1 Element, Silicon | SMBJ33CA-M3/5B vs SMBJ33C |
| SMBJ33CA | SPC Multicomp | Check for Price | Trans Voltage Suppressor Diode, 33V V(RWM), Bidirectional | SMBJ33CA-M3/5B vs SMBJ33CA |
| SMBJ33C | PRO-AN Electronic Co Ltd | Check for Price | Trans Voltage Suppressor Diode, 33V V(RWM), Bidirectional | SMBJ33CA-M3/5B vs SMBJ33C |
| SMBJ33CA | Yangzhou Yangjie Electronics Co Ltd | Check for Price | Trans Voltage Suppressor Diode, 33V V(RWM), Bidirectional | SMBJ33CA-M3/5B vs SMBJ33CA |
SMBJ33CA-M3/5B Frequently Asked Questions (FAQ)
-
The recommended footprint and land pattern for the SMBJ33CA-M3/5B can be found in the Vishay Intertechnologies application note 'Surface Mount Assembly Guidelines for TVS Diodes' (document number 91000).
-
Follow the soldering guidelines in the Vishay Intertechnologies application note 'Surface Mount Assembly Guidelines for TVS Diodes' (document number 91000) and ensure that the soldering process meets the requirements of IPC-A-610.
-
The SMBJ33CA-M3/5B has an operating temperature range of -55°C to +150°C, but the maximum operating temperature range for a specific application may be limited by the device's power dissipation and thermal resistance.
-
The SMBJ33CA-M3/5B is designed for transient voltage suppression and may not be suitable for high-frequency applications due to its parasitic capacitance and inductance. For high-frequency applications, consider using a TVS diode with a lower capacitance and inductance.
-
Select a TVS diode based on the specific requirements of your application, including the maximum voltage, current, and power dissipation. Consider factors such as the device's breakdown voltage, clamping voltage, and response time. Consult the Vishay Intertechnologies TVS diode selection guide for more information.
