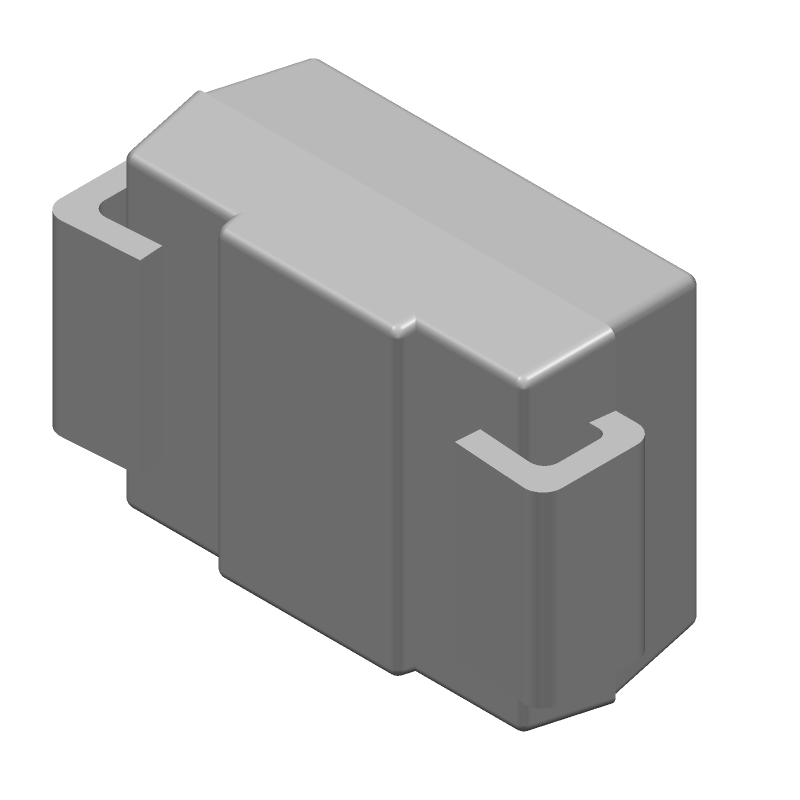

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SMBJ33A-13-F by Diodes Incorporated
Results Overview of SMBJ33A-13-F by Diodes Incorporated
- Distributor Offerings: (25 listings)
- Number of FFF Equivalents: (6 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SMBJ33A-13-F Information
SMBJ33A-13-F by Diodes Incorporated is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMBJ33A-13-F
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
79AH6654
|
Newark | Transient Voltage Suppressor Smb T&r 3K Rohs Compliant: Yes |Diodes Inc. SMBJ33A-13-F RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 6000 |
|
$0.0680 | Buy Now |
|
DISTI #
69AH2395
|
Newark | Tvs Diode, Unidir, 33V, 600W, Do-214Aa Rohs Compliant: Yes |Diodes Inc. SMBJ33A-13-F RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 5334 |
|
$0.0980 / $0.2100 | Buy Now |
|
DISTI #
SMBJ33A-FDICT-ND
|
DigiKey | TVS DIODE 33VWM 53.3VC SMB Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
179929 In Stock |
|
$0.0679 / $0.2100 | Buy Now |
|
DISTI #
SMBJ33A-13-F
|
Avnet Americas | TVS Diode, SMBJ Series, Unidirectional, 33 V, 53.3 V, DO-214AA (SMB), 2 Pins - Tape and Reel (Alt: SMBJ33A-13-F) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Reel | 306000 Factory Stock |
|
$0.0639 / $0.0672 | Buy Now |
|
DISTI #
SMBJ33A-13-F
|
Avnet Americas | TVS Diode, SMBJ Series, Unidirectional, 33 V, 53.3 V, DO-214AA (SMB), 2 Pins - Tape and Reel (Alt: SMBJ33A-13-F) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 111 Weeks, 0 Days Container: Reel | 306000 Factory Stock |
|
$0.0668 / $0.0714 | Buy Now |
|
DISTI #
621-SMBJ33A-13-F
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 600W 33.0V RoHS: Compliant | 175041 |
|
$0.0670 / $0.2100 | Buy Now |
|
DISTI #
P40:2555_23840469
|
Arrow Electronics | TVS Diode Single Uni-Dir 33V 600W 2-Pin SMB T/R Min Qty: 1873 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2312 | Europe - 99000 |
|
$0.0525 / $0.0607 | Buy Now |
|
DISTI #
E02:0323_01117867
|
Arrow Electronics | TVS Diode Single Uni-Dir 33V 600W 2-Pin SMB T/R Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks Date Code: 2402 | Europe - 63000 |
|
$0.0738 | Buy Now |
|
DISTI #
V36:1790_06704309
|
Arrow Electronics | TVS Diode Single Uni-Dir 33V 600W 2-Pin SMB T/R Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks Date Code: 2325 | Americas - 6000 |
|
$0.0649 | Buy Now |
|
DISTI #
V72:2272_06704309
|
Arrow Electronics | TVS Diode Single Uni-Dir 33V 600W 2-Pin SMB T/R Min Qty: 422 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2229 Container: Cut Strips | Americas - 422 |
|
$0.0729 | Buy Now |
Part Details for SMBJ33A-13-F
SMBJ33A-13-F CAD Models
SMBJ33A-13-F Part Data Attributes
|
|
SMBJ33A-13-F
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
SMBJ33A-13-F
Diodes Incorporated
Trans Voltage Suppressor Diode, 600W, 33V V(RWM), Unidirectional, 1 Element, Silicon, SMB, 2 PIN
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIODES INC | |
| Package Description | SMB, 2 PIN | |
| Pin Count | 2 | |
| Manufacturer Package Code | SMB | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Diodes Incorporated | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY | |
| Breakdown Voltage-Max | 42.2 V | |
| Breakdown Voltage-Min | 36.7 V | |
| Breakdown Voltage-Nom | 39.45 V | |
| Clamping Voltage-Max | 53.3 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AA | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 600 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 5 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 33 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL |
Alternate Parts for SMBJ33A-13-F
This table gives cross-reference parts and alternative options found for SMBJ33A-13-F. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMBJ33A-13-F, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SMBJ33A/TR13 | YAGEO Corporation | $0.0555 | Trans Voltage Suppressor Diode, | SMBJ33A-13-F vs SMBJ33A/TR13 |
| MSMBJ33A/TR | Microchip Technology Inc | $1.3250 | Trans Voltage Suppressor Diode, 600W, 33V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA | SMBJ33A-13-F vs MSMBJ33A/TR |
| MSMBJ33AE3 | Microchip Technology Inc | $1.1300 | Trans Voltage Suppressor Diode, 600W, 33V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA | SMBJ33A-13-F vs MSMBJ33AE3 |
| SMBJ33AE3/TR13 | Microchip Technology Inc | $0.2920 | Trans Voltage Suppressor Diode, 600W, 33V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA | SMBJ33A-13-F vs SMBJ33AE3/TR13 |
| SMBJ33A-E3/5B | Vishay Intertechnologies | $0.0418 | Trans Voltage Suppressor Diode, 600W, 33V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN | SMBJ33A-13-F vs SMBJ33A-E3/5B |
| SMBJ33A-M3/5B | Vishay Intertechnologies | Check for Price | Trans Voltage Suppressor Diode, 600W, 33V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN | SMBJ33A-13-F vs SMBJ33A-M3/5B |
SMBJ33A-13-F Frequently Asked Questions (FAQ)
-
The recommended footprint and land pattern for the SMBJ33A-13-F can be found in the Diodes Incorporated's package outline drawing, which is available on their website. The package is a standard SMB (DO-214AA) package, and the recommended land pattern is a rectangular pad with a size of 2.5mm x 1.5mm.
-
To ensure proper soldering, follow the recommended soldering profile and temperature guidelines provided by Diodes Incorporated. Use a solder with a melting point of 217°C to 220°C, and ensure the soldering iron temperature is set between 350°C to 370°C. Apply a small amount of solder paste to the pads, and use a soldering iron with a fine tip to solder the component.
-
The maximum operating temperature range for the SMBJ33A-13-F is -55°C to 150°C. However, the device's electrical characteristics may degrade at temperatures above 125°C. It's essential to ensure the device operates within the recommended temperature range to maintain its performance and reliability.
-
The SMBJ33A-13-F is a commercial-grade device, and its reliability and performance may not meet the requirements of high-reliability or aerospace applications. For such applications, consider using a device that is specifically designed and qualified for high-reliability or aerospace use, such as a device with a higher temperature rating, radiation hardening, or other specialized features.
-
Handle the SMBJ33A-13-F by the body, avoiding touching the leads or electrical contacts. Store the devices in their original packaging or in a dry, cool place, away from direct sunlight and moisture. Avoid exposing the devices to mechanical stress, vibration, or extreme temperatures during storage or transportation.
