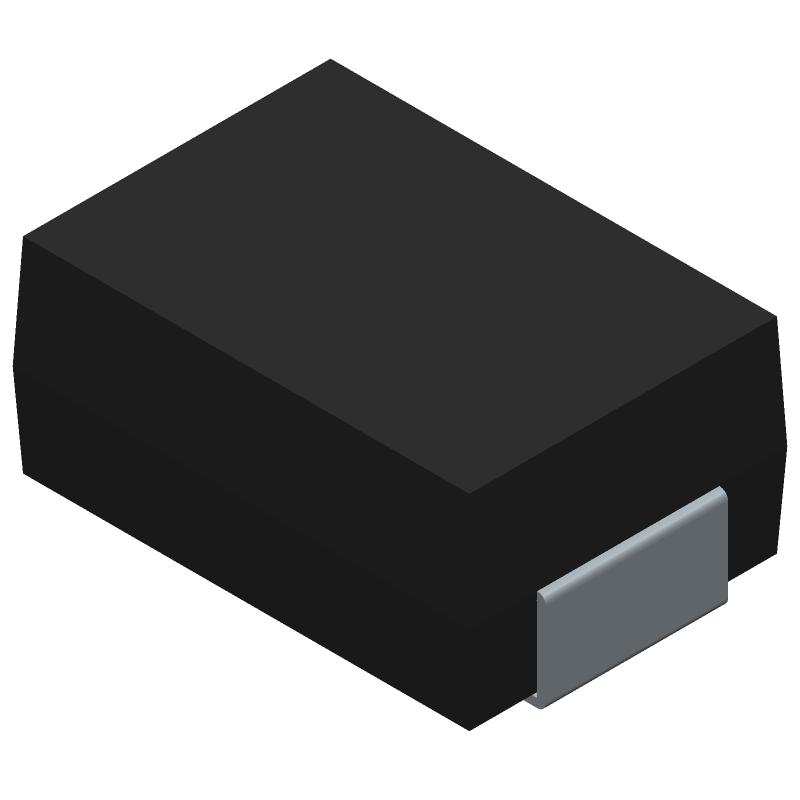

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SMBJ28CD-M3/H by Vishay Intertechnologies
Results Overview of SMBJ28CD-M3/H by Vishay Intertechnologies
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SMBJ28CD-M3/H Information
SMBJ28CD-M3/H by Vishay Intertechnologies is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMBJ28CD-M3/H
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
14AC5133
|
Newark | Tvs Diode, 600W, 28V, Bidir, Do-214Aa, Product Range:Transzorb Smbj Series, Tvs Polarity:Bidirectional, Reverse Stand-Off Voltage Vrwm:28V, Clamping Voltage Vc Max:44.7V, Diode Case Style:Do-214Aa, No. Of Pins:2Pins, Breakdown Rohs Compliant: Yes |Vishay SMBJ28CD-M3/H RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 7236 |
|
$0.2030 / $0.3340 | Buy Now |
|
DISTI #
55AC3507
|
Newark | 600W,28V,3.5%,bidir, smb Tvs |Vishay SMBJ28CD-M3/H RoHS: Not Compliant Min Qty: 7500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0990 / $0.1440 | Buy Now |
|
DISTI #
SMBJ28CD-M3/H
|
Avnet Americas | 600W,28V,3.5%,BIDIR,SMB TVS - Tape and Reel (Alt: SMBJ28CD-M3/H) RoHS: Compliant Min Qty: 7500 Package Multiple: 750 Lead time: 7 Weeks, 0 Days Container: Reel | 0 |
|
$0.0778 / $0.0828 | Buy Now |
|
DISTI #
78-SMBJ28CD-M3/H
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 28V 600W Bidir TransZorb 3.5% Tol RoHS: Compliant | 7946 |
|
$0.0810 / $0.3500 | Buy Now |
|
|
Onlinecomponents.com | TVS Diode - 1 Bidirectional Channel - 28V Reverse Standoff - 31.6V Breakdown (Min) - 44.7V Clamping (Max) @ Ipp - 600W - DO-214AA (SMBJ) Package. RoHS: Compliant |
6625 Partner Stock |
|
$0.0737 / $0.1000 | Buy Now |
|
DISTI #
SMBJ28CD-M3/H
|
TME | Diode: TVS, 600W, 31.6V, 13.4A, bidirectional, SMB, reel,tape, SMBJ Min Qty: 1 | 1377 |
|
$0.0880 / $0.2440 | Buy Now |
|
DISTI #
SMBJ28CD-M3/H
|
IBS Electronics | TRANS VOLTAGE SUPPRESSOR DIODE 600W 28V V(RWM) BIDIRECTIONAL 1 ELEMENT SILICON DO-214AA Min Qty: 1600 Package Multiple: 1 | 6625 |
|
$0.0800 / $0.0825 | Buy Now |
|
DISTI #
SMBJ28CD-M3/H
|
EBV Elektronik | 600W28V35BIDIRSMB TVS (Alt: SMBJ28CD-M3/H) RoHS: Compliant Min Qty: 750 Package Multiple: 750 Lead time: 8 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for SMBJ28CD-M3/H
SMBJ28CD-M3/H CAD Models
SMBJ28CD-M3/H Part Data Attributes
|
|
SMBJ28CD-M3/H
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
SMBJ28CD-M3/H
Vishay Intertechnologies
Trans Voltage Suppressor Diode, 600W, 28V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, SMBJ, 2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | SMBJ, 2 PIN | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 7 Weeks | |
| Date Of Intro | 2016-05-01 | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY | |
| Breakdown Voltage-Max | 33.9 V | |
| Breakdown Voltage-Min | 31.6 V | |
| Breakdown Voltage-Nom | 32.75 V | |
| Clamping Voltage-Max | 44.7 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AA | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 600 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 1 W | |
| Rep Pk Reverse Voltage-Max | 28 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
SMBJ28CD-M3/H Frequently Asked Questions (FAQ)
-
The recommended footprint and land pattern for the SMBJ28CD-M3/H can be found in the Vishay Intertechnologies' application note 'Surface Mount Tantalum Capacitor Land Pattern' (document number 40171).
-
To prevent damage, handle the SMBJ28CD-M3/H by the body, avoid touching the leads or the capacitor body, and use anti-static wrist straps or mats. Also, follow the recommended soldering profile and avoid excessive mechanical stress.
-
The derating curve for the SMBJ28CD-M3/H can be found in the Vishay Intertechnologies' datasheet or in the 'Tantalum Capacitor Derating Guidelines' application note (document number 40172).
-
Yes, the SMBJ28CD-M3/H is designed to withstand high-vibration environments. However, it's recommended to follow the recommended mounting and soldering guidelines to ensure reliable operation.
-
The ESR of the SMBJ28CD-M3/H can be determined by measuring the impedance of the capacitor at high frequencies (e.g., 100 kHz) using an impedance analyzer or a network analyzer.
