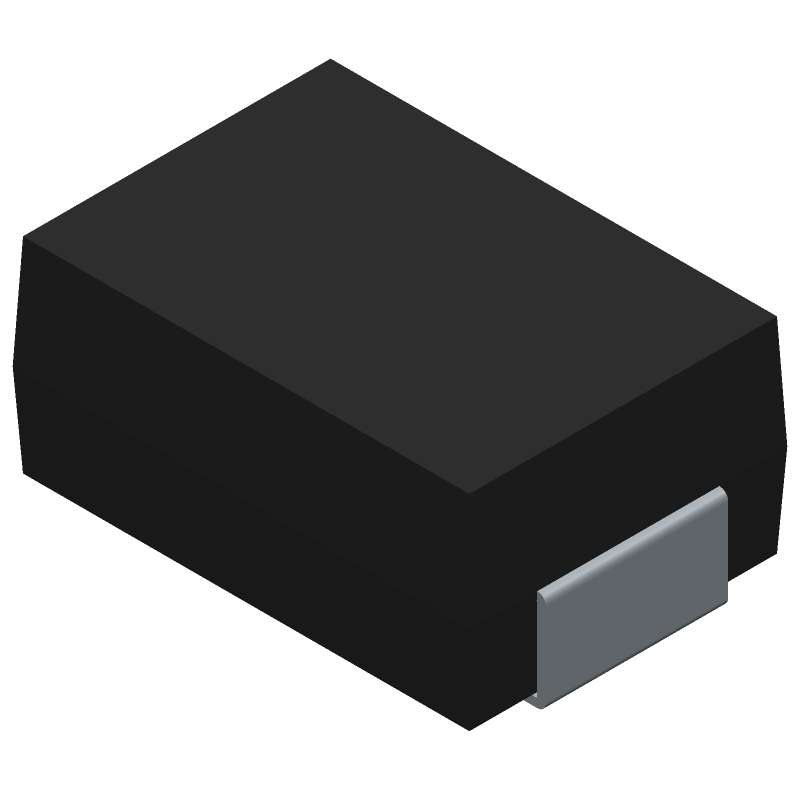

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SMBJ28CAHE3_A/H by Vishay Intertechnologies
Results Overview of SMBJ28CAHE3_A/H by Vishay Intertechnologies
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SMBJ28CAHE3_A/H Information
SMBJ28CAHE3_A/H by Vishay Intertechnologies is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 74AC11000DR | Texas Instruments | Quadruple 2-Input Positive-NAND Gates 16-SOIC -40 to 85 | |
| 74AC11008PWR | Texas Instruments | Quadruple 2-Input Positive-AND Gates 16-TSSOP -40 to 85 | |
| 74AC11138N | Texas Instruments | 3-Line to 8-Line Decoders/Demultiplexers 16-PDIP -40 to 85 |
Price & Stock for SMBJ28CAHE3_A/H
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
06AH4257
|
Newark | Tvs Diode, 600W, 28V, Bidir, Do-214Aa, Product Range:Transzorb Smbj Series, Tvs Polarity:Bidirectional, Reverse Stand-Off Voltage Vrwm:28V, Clamping Voltage Vc Max:45.4V, Diode Case Style:Do-214Aa, No. Of Pins:2Pins, Breakdown Rohs Compliant: Yes |Vishay SMBJ28CAHE3_A/H RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 1 |
|
$0.0750 | Buy Now |
|
DISTI #
SMBJ28CAHE3_A/H
|
Avnet Americas | Diode TVS Single Bi-Dir 28V 600W 2-Pin DO-214AA T/R - Bulk (Alt: SMBJ28CAHE3_A/H) RoHS: Compliant Min Qty: 6000 Package Multiple: 750 Lead time: 111 Weeks, 0 Days Container: Bulk | 6000 |
|
$0.1293 | Buy Now |
|
DISTI #
78-SMBJ28CAHE3_A/H
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 600W 28V 5% SMB (DO-214AA) RoHS: Compliant | 7108 |
|
$0.1930 / $0.8300 | Buy Now |
|
|
Future Electronics | 45.5V Clamp 13.2A Ipp Tvs Diode Surface Mount DO-214AA (SMBJ) RoHS: Compliant pbFree: Yes Min Qty: 750 Package Multiple: 750 Container: Reel | 750Reel |
|
$0.2600 / $0.2750 | Buy Now |
|
|
Future Electronics | 45.5V Clamp 13.2A Ipp Tvs Diode Surface Mount DO-214AA (SMBJ) Min Qty: 750 Package Multiple: 750 |
750 null |
|
$0.2600 / $0.2750 | Buy Now |
|
DISTI #
SMBJ28CAHE3_A/H
|
EBV Elektronik | Diode TVS Single BiDir 28V 600W 2Pin DO214AA TR (Alt: SMBJ28CAHE3_A/H) RoHS: Compliant Min Qty: 750 Package Multiple: 750 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Vyrian | Diodes | 4177 |
|
RFQ |
Part Details for SMBJ28CAHE3_A/H
SMBJ28CAHE3_A/H CAD Models
SMBJ28CAHE3_A/H Part Data Attributes
|
|
SMBJ28CAHE3_A/H
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
SMBJ28CAHE3_A/H
Vishay Intertechnologies
Trans Voltage Suppressor Diode,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 111 Weeks | |
| Date Of Intro | 2019-02-07 | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY | |
| Breakdown Voltage-Max | 34.4 V | |
| Breakdown Voltage-Min | 31.1 V | |
| Breakdown Voltage-Nom | 32.75 V | |
| Clamping Voltage-Max | 45.4 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AA | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 600 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 5 W | |
| Reference Standard | AEC-Q101; UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 28 V | |
| Reverse Current-Max | 1 µA | |
| Reverse Test Voltage | 28 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
SMBJ28CAHE3_A/H Frequently Asked Questions (FAQ)
-
The recommended footprint and land pattern for the SMBJ28CAHE3_A/H can be found in the Vishay Intertechnologies' application note AN10364, which provides guidelines for surface-mount assembly of SMB packages.
-
To ensure reliability in high-temperature applications, it is recommended to follow the derating guidelines provided in the datasheet, and to consider the maximum junction temperature (Tj) of 150°C. Additionally, ensure proper thermal management and heat dissipation in the system design.
-
The SMBJ28CAHE3_A/H has a human body model (HBM) ESD rating of ±30kV. To protect it from ESD damage, follow proper ESD handling and storage procedures, and consider using ESD protection devices or circuits in the system design.
-
Yes, the SMBJ28CAHE3_A/H can be used in high-frequency applications. However, consider the parasitic inductance and capacitance of the device, which can affect the circuit's performance. Use simulation tools and modeling to optimize the design and minimize the impact of parasitic effects.
-
Select the correct SMBJ28CAHE3_A/H variant by considering the maximum voltage and current requirements of your application. Refer to the datasheet and application notes to ensure the chosen device meets the specific requirements, and consider factors such as voltage rating, current rating, and power dissipation.
