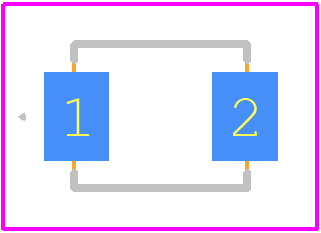

Footprint
-

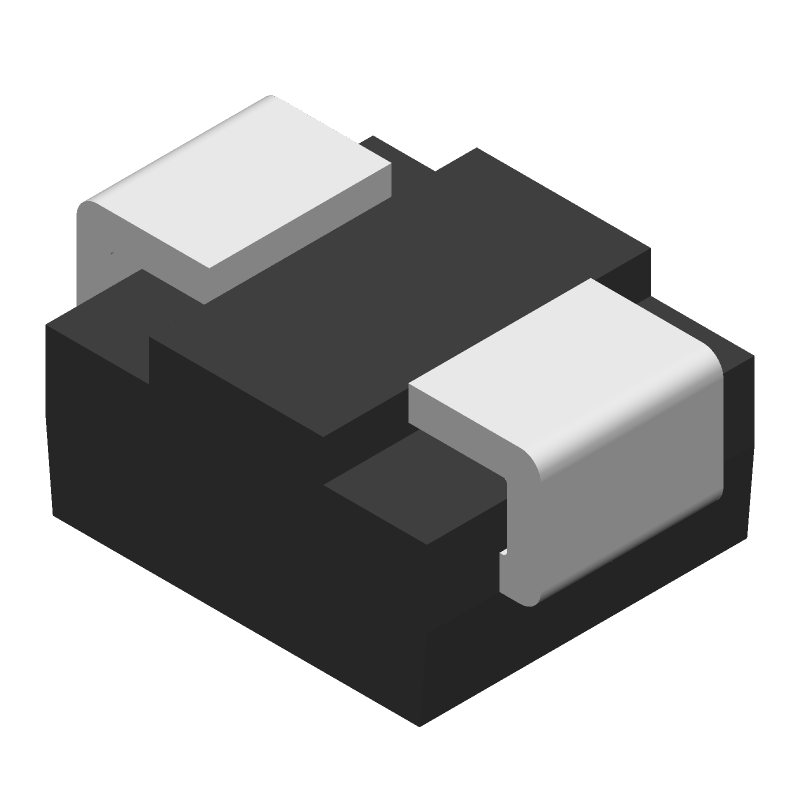

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SMBJ28CA-TR by STMicroelectronics
Results Overview of SMBJ28CA-TR by STMicroelectronics
- Distributor Offerings: (19 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SMBJ28CA-TR Information
SMBJ28CA-TR by STMicroelectronics is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMBJ28CA-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
9886222
|
Farnell | DIODE, TVS, 28V, 600W RoHS: Compliant Min Qty: 5 Lead time: 18 Weeks, 6 Days Container: Cut Tape | 549 |
|
$0.1269 / $0.4011 | Buy Now |
|
DISTI #
9886222RL
|
Farnell | DIODE, TVS, 28V, 600W RoHS: Compliant Min Qty: 100 Lead time: 18 Weeks, 6 Days Container: Reel | 549 |
|
$0.1269 / $0.2199 | Buy Now |
|
DISTI #
2252482
|
Farnell | DIODE, TVS, 28V, 600W, BI, SMB, RL RoHS: Compliant Min Qty: 2500 Lead time: 18 Weeks, 1 Days Container: Reel | 0 |
|
$0.1078 / $0.1099 | Buy Now |
|
DISTI #
497-14744-1-ND
|
DigiKey | TVS DIODE 28VWM 45.4VC SMB Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
27151 In Stock |
|
$0.1047 / $0.3800 | Buy Now |
|
DISTI #
SMBJ28CA-TR
|
Avnet Americas | Diode TVS Single Bi-Dir 28V 600W 2-Pin SMB T/R - Tape and Reel (Alt: SMBJ28CA-TR) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 13 Weeks, 0 Days Container: Reel | 20000 |
|
$0.0589 | Buy Now |
|
DISTI #
511-SMBJ28CA-TR
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes Transil RoHS: Compliant | 9789 |
|
$0.1040 / $0.3800 | Buy Now |
|
DISTI #
E02:0323_00213970
|
Arrow Electronics | Diode TVS Single Bi-Dir 28V 600W 2-Pin SMB T/R Min Qty: 2500 Package Multiple: 2500 Lead time: 13 Weeks Date Code: 2513 | Europe - 5000 |
|
$0.0816 | Buy Now |
|
DISTI #
V72:2272_06556632
|
Arrow Electronics | Diode TVS Single Bi-Dir 28V 600W 2-Pin SMB T/R Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2237 Container: Cut Strips | Americas - 2520 |
|
$0.0908 / $0.3648 | Buy Now |
|
|
STMicroelectronics | 600 W, 28 V TVS in SMB RoHS: Compliant Min Qty: 1 | 9789 |
|
$0.1600 / $0.3700 | Buy Now |
|
DISTI #
88107573
|
Verical | Diode TVS Single Bi-Dir 28V 600W 2-Pin SMB T/R Min Qty: 2500 Package Multiple: 2500 Date Code: 2513 | Americas - 5000 |
|
$0.0816 | Buy Now |
Part Details for SMBJ28CA-TR
SMBJ28CA-TR CAD Models
SMBJ28CA-TR Part Data Attributes
|
|
SMBJ28CA-TR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
SMBJ28CA-TR
STMicroelectronics
600 W TVS in SMB
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | DO-214AA | |
| Package Description | ROHS COMPLIANT, PLASTIC, SMB, 2 PIN | |
| Pin Count | 2 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Breakdown Voltage-Min | 31.1 V | |
| Clamping Voltage-Max | 59 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AA | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 4000 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 5 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 28 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
Alternate Parts for SMBJ28CA-TR
This table gives cross-reference parts and alternative options found for SMBJ28CA-TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMBJ28CA-TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SMBJ28CA | Uniohm Corp | Check for Price | Trans Voltage Suppressor Diode, 600W, 28V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, PLASTIC, SMB, 2 PIN | SMBJ28CA-TR vs SMBJ28CA |
| SMBJ28C | Telefunken Microelectronics Gmbh | Check for Price | Transient Suppressor, | SMBJ28CA-TR vs SMBJ28C |
| SMBJ26CA/TR13 | Microsemi Corporation | Check for Price | Trans Voltage Suppressor Diode, 600W, 26V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, PLASTIC, SMBJ, 2 PIN | SMBJ28CA-TR vs SMBJ26CA/TR13 |
| SMBJ28C | Daco Semiconductor Co Ltd | Check for Price | Transient Suppressor | SMBJ28CA-TR vs SMBJ28C |
| SMBJ28CA | Fairchild Semiconductor Corporation | Check for Price | Trans Voltage Suppressor Diode, 600W, 28V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN | SMBJ28CA-TR vs SMBJ28CA |
| SMBJ28C | Diodes Incorporated | Check for Price | Trans Voltage Suppressor Diode, 400W, 28V V(RWM), Bidirectional, 1 Element, Silicon, | SMBJ28CA-TR vs SMBJ28C |
| SMBJ28C | Bytesonic Corporation | Check for Price | Transient Suppressor | SMBJ28CA-TR vs SMBJ28C |
| SMBJ26CA | Taiwan Semiconductor | Check for Price | Trans Voltage Suppressor Diode, 600W, 26V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, GREEN, PLASTIC, SMB, 2 PIN | SMBJ28CA-TR vs SMBJ26CA |
| SMBJ28CA | Lite-On Semiconductor Corporation | Check for Price | Trans Voltage Suppressor Diode, 600W, 28V V(RWM), Bidirectional, 1 Element, Silicon, PLASTIC, SMB, 2 PIN | SMBJ28CA-TR vs SMBJ28CA |
| SMBJ26CA | Pulse Electronics Corporation | Check for Price | Trans Voltage Suppressor Diode, 600W, 26V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN | SMBJ28CA-TR vs SMBJ26CA |
SMBJ28CA-TR Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the SMBJ28CA-TR is -40°C to 150°C.
-
Yes, the SMBJ28CA-TR is compatible with lead-free soldering processes.
-
The typical response time for the SMBJ28CA-TR is less than 1 picosecond.
-
Yes, the SMBJ28CA-TR is suitable for high-reliability applications, such as aerospace, defense, and medical devices.
-
Yes, the SMBJ28CA-TR is RoHS (Restriction of Hazardous Substances) compliant.
