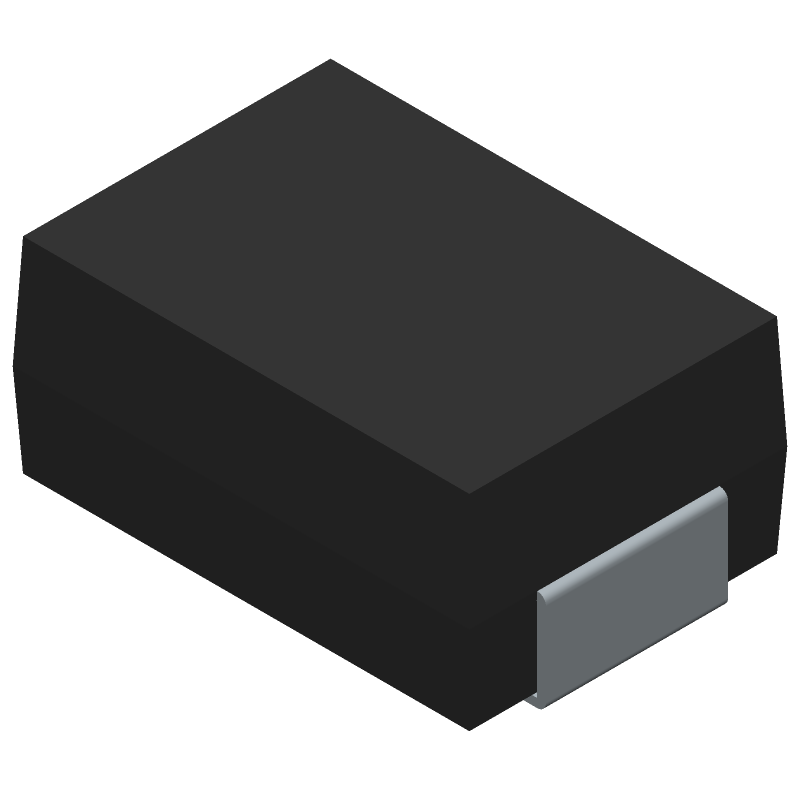

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SMBJ28CA-Q by Bourns Inc
Results Overview of SMBJ28CA-Q by Bourns Inc
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SMBJ28CA-Q Information
SMBJ28CA-Q by Bourns Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMBJ28CA-Q
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
47AK6908
|
Newark | Dio Tvs Vwm 28V 600W Bidir Smb Aec-Q Rohs Compliant: Yes |Bourns SMBJ28CA-Q RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 5947 |
|
$0.3100 | Buy Now |
|
DISTI #
52AC7028
|
Newark | Dio Tvs Vwm 28V 600W Bidir Smb Aec-Q/Tape & Reel - 7" Reel Rohs Compliant: Yes |Bourns SMBJ28CA-Q RoHS: Compliant Min Qty: 12000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1440 | Buy Now |
|
DISTI #
118-SMBJ28CA-QCT-ND
|
DigiKey | TVS DIODE 28VWM 45.4VC DO214AA Min Qty: 1 Lead time: 16 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
2556 In Stock |
|
$0.1237 / $0.3100 | Buy Now |
|
DISTI #
SMBJ28CA-Q
|
Avnet Americas | SMBJ-Q Transient Voltage Suppressor Diode Single Bi-Directional 28V 100A 600W 2-Pin DO-214AA T/R - Tape and Reel (Alt: SMBJ28CA-Q) RoHS: Compliant Min Qty: 12000 Package Multiple: 3000 Lead time: 16 Weeks, 0 Days Container: Reel | 0 |
|
$0.1188 / $0.1325 | Buy Now |
|
DISTI #
652-SMBJ28CA-Q
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 28volts 600W 5% Bi-Dir. AEC-Q101 RoHS: Compliant | 26709 |
|
$0.1230 / $0.3100 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$0.1229 / $0.2574 | Buy Now |
|
|
Quest Components | 9600 |
|
$0.2553 / $0.8510 | Buy Now | |
|
DISTI #
SMBJ28CA-Q-BOU
|
TME | Diode: TVS, 0.6kW, 31.1÷34.4V, 13.3A, bidirectional, ±5%, SMB, SMBJ Min Qty: 1 | 0 |
|
$0.1640 / $0.4610 | RFQ |
|
DISTI #
SMBJ28CA-Q
|
Avnet Abacus | SMBJQ Transient Voltage Suppressor Diode Single BiDirectional 28V 100A 600W 2Pin DO214AA TR - Tape and Reel (Alt: SMBJ28CA-Q) RoHS: Compliant Min Qty: 12000 Package Multiple: 3000 Lead time: 17 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now | |
|
|
Cytech Systems Limited | TVS DIODE 28VWM 45.4VC SMB | 9000 |
|
RFQ |
Part Details for SMBJ28CA-Q
SMBJ28CA-Q CAD Models
SMBJ28CA-Q Part Data Attributes
|
|
SMBJ28CA-Q
Bourns Inc
Buy Now
Datasheet
|
Compare Parts:
SMBJ28CA-Q
Bourns Inc
Trans Voltage Suppressor Diode,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BOURNS INC | |
| Package Description | SMB, 2 PIN | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | Bourns | |
| Additional Feature | PRSM-MIN | |
| Breakdown Voltage-Max | 34.4 V | |
| Breakdown Voltage-Min | 31.1 V | |
| Breakdown Voltage-Nom | 32.75 V | |
| Clamping Voltage-Max | 45.4 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AA | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 600 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Reference Standard | AEC-Q101; UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 28 V | |
| Reverse Current-Max | 1 µA | |
| Reverse Test Voltage | 28 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
SMBJ28CA-Q Frequently Asked Questions (FAQ)
-
The recommended land pattern for the SMBJ28CA-Q is a rectangular pad with a size of 2.5 mm x 1.5 mm, with a 0.5 mm radius corner and a 0.3 mm spacing between pads.
-
To ensure proper soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the pads. Use a soldering technique that minimizes the risk of overheating the component.
-
The maximum operating temperature range for the SMBJ28CA-Q is -40°C to 150°C, with a storage temperature range of -40°C to 150°C.
-
Yes, the SMBJ28CA-Q is designed for high-reliability applications and meets the requirements of AEC-Q101, making it suitable for use in automotive and other high-reliability industries.
-
Handle the SMBJ28CA-Q by the body, avoiding touching the leads or the glass passivation layer. Use anti-static wrist straps or mats to prevent electrostatic discharge (ESD) damage.
