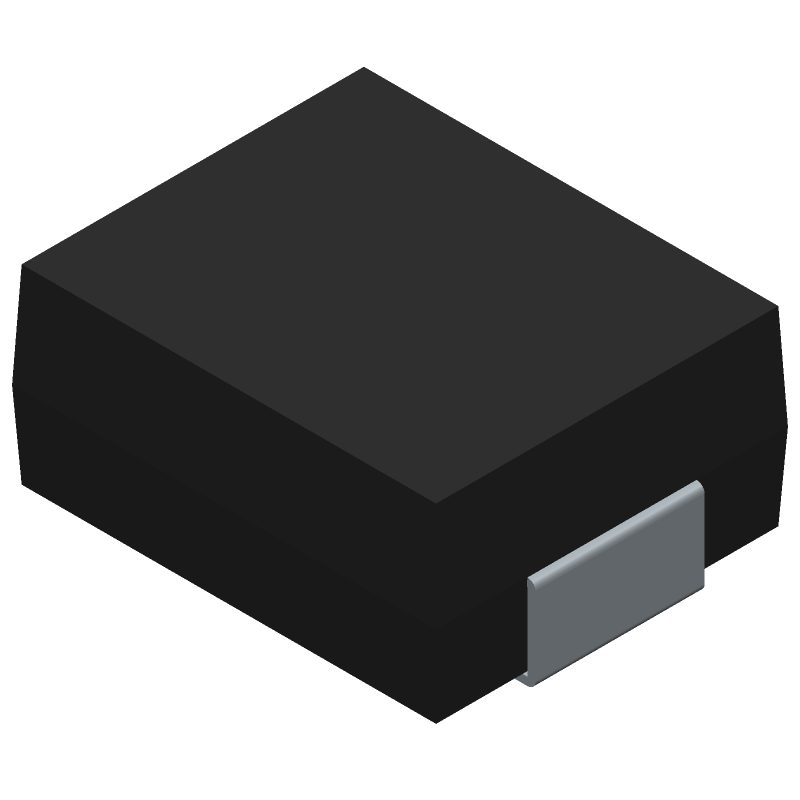

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SMBJ26CA-E3/52 by Vishay Intertechnologies
Results Overview of SMBJ26CA-E3/52 by Vishay Intertechnologies
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SMBJ26CA-E3/52 Information
SMBJ26CA-E3/52 by Vishay Intertechnologies is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMBJ26CA-E3/52
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AC3834
|
Newark | Tvs Diode, 600W, 26V, Bidir, Do-214Aa, Product Range:Transzorb Series, Tvs Polarity:Bidirectional, Reverse Stand-Off Voltage Vrwm:26V, Clamping Voltage Vc Max:42.1V, Diode Case Style:Do-214Aa, No. Of Pins:2Pins, Breakdown Voltage Rohs Compliant: Yes |Vishay SMBJ26CA-E3/52 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1477 |
|
$0.2500 / $0.4910 | Buy Now |
|
DISTI #
77K4664
|
Newark | Tvs Diode, 600W, 26V, Do-214Aa, Full Reel, Product Range:Transzorb Smbj Series, Tvs Polarity:Bidirectional, Reverse Standoff Voltage:26V, Clamping Voltage Max:42.1V, Diode Case Style:Do-214Aa (Smb), No. Of Pins:2Pins, Qualification:-Rohs Compliant: Yes |Vishay SMBJ26CA-E3/52 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1380 / $0.1770 | Buy Now |
|
DISTI #
SMBJ26CA-E3/52
|
Avnet Americas | 600W,26V 5%,BIDIR,SMB TVS - Tape and Reel (Alt: SMBJ26CA-E3/52) RoHS: Compliant Min Qty: 750 Package Multiple: 750 Lead time: 11 Weeks, 0 Days Container: Reel | 25500 |
|
$0.0533 | Buy Now |
|
DISTI #
625-SMBJ26CA-E3
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 26V 800W Bidir TransZorb 5% Tol RoHS: Compliant | 0 |
|
$0.0860 / $0.4000 | Order Now |
|
DISTI #
E02:0323_00191455
|
Arrow Electronics | Diode TVS Single Bi-Dir 26V 600W 2-Pin SMB T/R Min Qty: 750 Package Multiple: 750 Lead time: 11 Weeks Date Code: 2451 | Europe - 42000 |
|
$0.0670 | Buy Now |
|
|
Future Electronics | SMBJ Series 600 W 26 V Bi-Directional Surface Mount TVS Diode - DO-214AA RoHS: Compliant pbFree: Yes Min Qty: 750 Package Multiple: 750 Lead time: 11 Weeks Container: Reel | 6750Reel |
|
$0.0559 / $0.0624 | Buy Now |
|
DISTI #
87511075
|
Verical | Diode TVS Single Bi-Dir 26V 600W 2-Pin SMB T/R Min Qty: 750 Package Multiple: 750 Date Code: 2451 | Americas - 42000 |
|
$0.0671 | Buy Now |
|
|
Bristol Electronics | 1920 |
|
RFQ | ||
|
|
Quest Components | 1536 |
|
$0.2160 / $0.7200 | Buy Now | |
|
|
Future Electronics | SMBJ Series 600 W 26 V Bi-Directional Surface Mount TVS Diode - DO-214AA Min Qty: 750 Package Multiple: 750 |
6750 null |
|
$0.0559 / $0.0624 | Buy Now |
Part Details for SMBJ26CA-E3/52
SMBJ26CA-E3/52 CAD Models
SMBJ26CA-E3/52 Part Data Attributes
|
|
SMBJ26CA-E3/52
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
SMBJ26CA-E3/52
Vishay Intertechnologies
Trans Voltage Suppressor Diode, 600W, 26V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | SMB, 2 PIN | |
| Reach Compliance Code | not_compliant | |
| Factory Lead Time | 11 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY, UL RECOGNIZED | |
| Breakdown Voltage-Max | 31.9 V | |
| Breakdown Voltage-Min | 28.9 V | |
| Breakdown Voltage-Nom | 30.4 V | |
| Clamping Voltage-Max | 42.1 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AA | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 600 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 5 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 26 V | |
| Reverse Current-Max | 1 µA | |
| Reverse Test Voltage | 26 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for SMBJ26CA-E3/52
This table gives cross-reference parts and alternative options found for SMBJ26CA-E3/52. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMBJ26CA-E3/52, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SMBJ28CA | Uniohm Corp | Check for Price | Trans Voltage Suppressor Diode, 600W, 28V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, PLASTIC, SMB, 2 PIN | SMBJ26CA-E3/52 vs SMBJ28CA |
| SMBJ28C | Telefunken Microelectronics Gmbh | Check for Price | Transient Suppressor, | SMBJ26CA-E3/52 vs SMBJ28C |
| SMBJ26CA/TR13 | Microsemi Corporation | Check for Price | Trans Voltage Suppressor Diode, 600W, 26V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, PLASTIC, SMBJ, 2 PIN | SMBJ26CA-E3/52 vs SMBJ26CA/TR13 |
| SMBJ28C | Daco Semiconductor Co Ltd | Check for Price | Transient Suppressor | SMBJ26CA-E3/52 vs SMBJ28C |
| SMBJ28CA | Fairchild Semiconductor Corporation | Check for Price | Trans Voltage Suppressor Diode, 600W, 28V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN | SMBJ26CA-E3/52 vs SMBJ28CA |
| SMBJ28C | Diodes Incorporated | Check for Price | Trans Voltage Suppressor Diode, 400W, 28V V(RWM), Bidirectional, 1 Element, Silicon, | SMBJ26CA-E3/52 vs SMBJ28C |
| SMBJ28C | Bytesonic Corporation | Check for Price | Transient Suppressor | SMBJ26CA-E3/52 vs SMBJ28C |
| SMBJ26CA | Taiwan Semiconductor | Check for Price | Trans Voltage Suppressor Diode, 600W, 26V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, GREEN, PLASTIC, SMB, 2 PIN | SMBJ26CA-E3/52 vs SMBJ26CA |
| SMBJ28CA | Lite-On Semiconductor Corporation | Check for Price | Trans Voltage Suppressor Diode, 600W, 28V V(RWM), Bidirectional, 1 Element, Silicon, PLASTIC, SMB, 2 PIN | SMBJ26CA-E3/52 vs SMBJ28CA |
| SMBJ26CA | Pulse Electronics Corporation | Check for Price | Trans Voltage Suppressor Diode, 600W, 26V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN | SMBJ26CA-E3/52 vs SMBJ26CA |
SMBJ26CA-E3/52 Frequently Asked Questions (FAQ)
-
The recommended footprint and land pattern for the SMBJ26CA-E3/52 can be found in the Vishay Intertechnologies' application note AN10364, which provides guidelines for PCB layout and assembly.
-
To ensure reliability in high-temperature applications, it is recommended to follow the derating guidelines provided in the datasheet, and to consider the device's thermal resistance, power dissipation, and junction temperature.
-
The maximum allowable voltage transients for the SMBJ26CA-E3/52 are not explicitly stated in the datasheet, but it is recommended to follow the industry-standard guidelines for voltage transients, such as those provided in the IEC 61000-4-5 standard.
-
Yes, the SMBJ26CA-E3/52 is AEC-Q101 qualified, which means it meets the requirements for automotive applications. However, it is recommended to consult with Vishay Intertechnologies' application engineers to ensure the device meets the specific requirements of the automotive system.
-
The recommended storage and handling procedure for the SMBJ26CA-E3/52 can be found in the Vishay Intertechnologies' document 'Storage and Handling of Semiconductor Devices', which provides guidelines for preventing damage and ensuring the reliability of the device.
