Diodes / Transient Suppressors / SMBJ110A-E3/5B
Datasheets
SMBJ110A-E3/5B by:

Trans Voltage Suppressor Diode, 600W, 110V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN

Part Details for SMBJ110A-E3/5B by Vishay Intertechnologies

Results Overview of SMBJ110A-E3/5B by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SMBJ110A-E3/5B Information

SMBJ110A-E3/5B by Vishay Intertechnologies is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for SMBJ110A-E3/5B

Part # Distributor Description Stock Price Buy
DISTI # 77K4304
Newark Transient Suppressor Diode, single, unidirectional,110V V(Rwm),do-214Aa/Smb |Vishay SMBJ110A-E3/5B RoHS: Not Compliant Min Qty: 3200 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.1870
  • 5,000 $0.1780
  • 10,000 $0.1580
  • 20,000 $0.1420
  • 30,000 $0.1330
  • 50,000 $0.1220
$0.1220 / $0.1870 Buy Now
DISTI # SMBJ110A-E3/5B
Avnet Americas 600W,110V 5%,UNIDIR,SMB TVS - Tape and Reel (Alt: SMBJ110A-E3/5B) RoHS: Compliant Min Qty: 3200 Package Multiple: 3200 Lead time: 9 Weeks, 0 Days Container: Reel 0
  • 3,200 $0.0686
  • 6,400 $0.0683
  • 12,800 $0.0679
  • 19,200 $0.0675
  • 25,600 $0.0672
$0.0672 / $0.0686 Buy Now
DISTI # 625-SMBJ110A-E3/5B
Mouser Electronics ESD Protection Diodes / TVS Diodes 110V 1000W UniDir TransZorb 5% Tol RoHS: Compliant 3160
  • 1 $0.4900
  • 10 $0.3360
  • 100 $0.1900
  • 500 $0.1500
  • 1,000 $0.1270
  • 3,200 $0.0980
  • 6,400 $0.0900
  • 9,600 $0.0850
  • 22,400 $0.0790
$0.0790 / $0.4900 Buy Now
DISTI # SMBJ110A-E3/5B
TTI ESD Protection Diodes / TVS Diodes 110V 1000W UniDir TransZorb 5% Tol pbFree: Pb-Free Min Qty: 3200 Package Multiple: 3200 Container: Reel Americas - 0
  • 3,200 $0.0940
  • 6,400 $0.0920
  • 9,600 $0.0840
  • 16,000 $0.0820
  • 32,000 $0.0790
  • 80,000 $0.0720
$0.0720 / $0.0940 Buy Now

Part Details for SMBJ110A-E3/5B

SMBJ110A-E3/5B CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

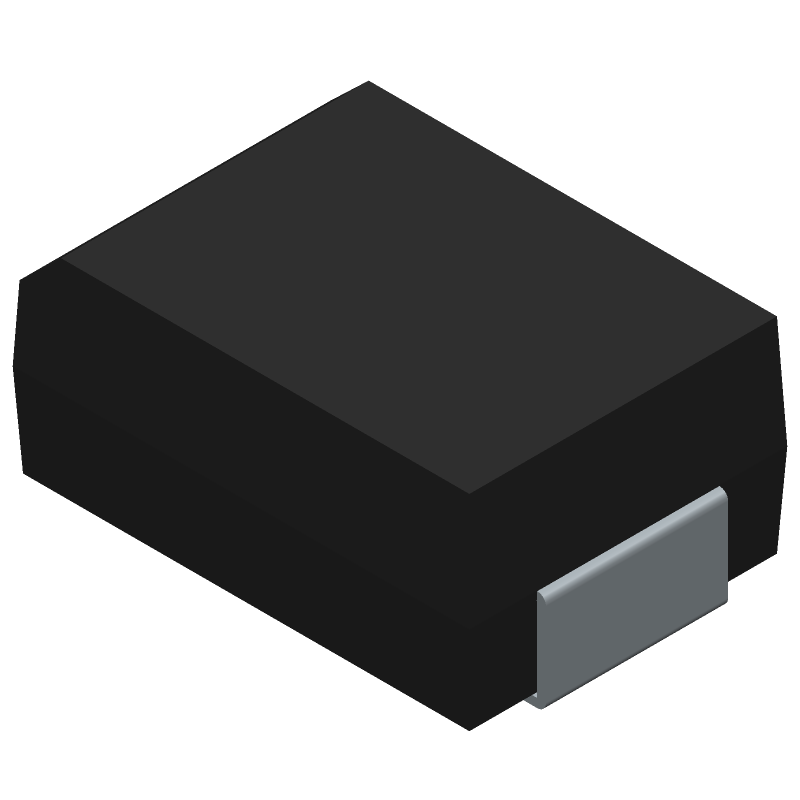

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SMBJ110A-E3/5B Part Data Attributes

Parametric Data
SMBJ110A-E3/5B Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
SMBJ110A-E3/5B Vishay Intertechnologies Trans Voltage Suppressor Diode, 600W, 110V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description SMB, 2 PIN
Reach Compliance Code not_compliant
Factory Lead Time 9 Weeks
Samacsys Manufacturer Vishay
Additional Feature EXCELLENT CLAMPING CAPABILITY, UL RECOGNIZED
Breakdown Voltage-Max 135 V
Breakdown Voltage-Min 122 V
Breakdown Voltage-Nom 128.5 V
Clamping Voltage-Max 177 V
Configuration SINGLE
Diode Element Material SILICON
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Forward Voltage-Max (VF) 3.5 V
JEDEC-95 Code DO-214AA
JESD-30 Code R-PDSO-C2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 600 W
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Power Dissipation-Max 5 W
Qualification Status Not Qualified
Reference Standard UL RECOGNIZED
Rep Pk Reverse Voltage-Max 110 V
Reverse Current-Max 1 µA
Reverse Test Voltage 110 V
Surface Mount YES
Technology AVALANCHE
Terminal Finish Matte Tin (Sn)
Terminal Form C BEND
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30

Alternate Parts for SMBJ110A-E3/5B

This table gives cross-reference parts and alternative options found for SMBJ110A-E3/5B. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMBJ110A-E3/5B, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
SMBJ110D-M3/H Vishay Intertechnologies $0.0657 Trans Voltage Suppressor Diode, 600W, 110V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, SMBJ, 2 PIN SMBJ110A-E3/5B vs SMBJ110D-M3/H
SMBJ110A-M3/5B Vishay Intertechnologies Check for Price Trans Voltage Suppressor Diode, 600W, 110V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN SMBJ110A-E3/5B vs SMBJ110A-M3/5B
SMBJ110D-M3/I Vishay Intertechnologies Check for Price Trans Voltage Suppressor Diode, 600W, 110V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, SMBJ, 2 PIN SMBJ110A-E3/5B vs SMBJ110D-M3/I
Part Number Manufacturer Composite Price Description Compare
SMBJ110A-13-F Diodes Incorporated $0.1624 Trans Voltage Suppressor Diode, 600W, 110V V(RWM), Unidirectional, 1 Element, Silicon, SMB, 2 PIN SMBJ110A-E3/5B vs SMBJ110A-13-F
SMBJ110A Bourns Inc $0.1871 Trans Voltage Suppressor Diode, 600W, 110V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN SMBJ110A-E3/5B vs SMBJ110A
SMBJ110A-E3/52 Vishay Intertechnologies $0.2850 Trans Voltage Suppressor Diode, 600W, 110V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN SMBJ110A-E3/5B vs SMBJ110A-E3/52
SMBJ110A Semtech Corporation Check for Price Trans Voltage Suppressor Diode, 600W, 110V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, SMBJ110A-E3/5B vs SMBJ110A
SMBJ110A Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 600W, 110V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, GREEN, PLASTIC, SMB, 2 PIN SMBJ110A-E3/5B vs SMBJ110A
SMBJ110A-M3/52 Vishay Intertechnologies Check for Price Trans Voltage Suppressor Diode, 600W, 110V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN SMBJ110A-E3/5B vs SMBJ110A-M3/52
SMBJ110A Kyocera AVX Components Check for Price Trans Voltage Suppressor Diode, 600W, 110V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, HALOGEN FREE, SMBJ, 2 PIN SMBJ110A-E3/5B vs SMBJ110A
SMBJ110 Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 600W, 110V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, GREEN, PLASTIC, SMB, 2 PIN SMBJ110A-E3/5B vs SMBJ110
